085
ceiling bracket
(included in delivery)
suspension
175-177
(to be ordered separately)
MOUNTING OPTIONS
IK08

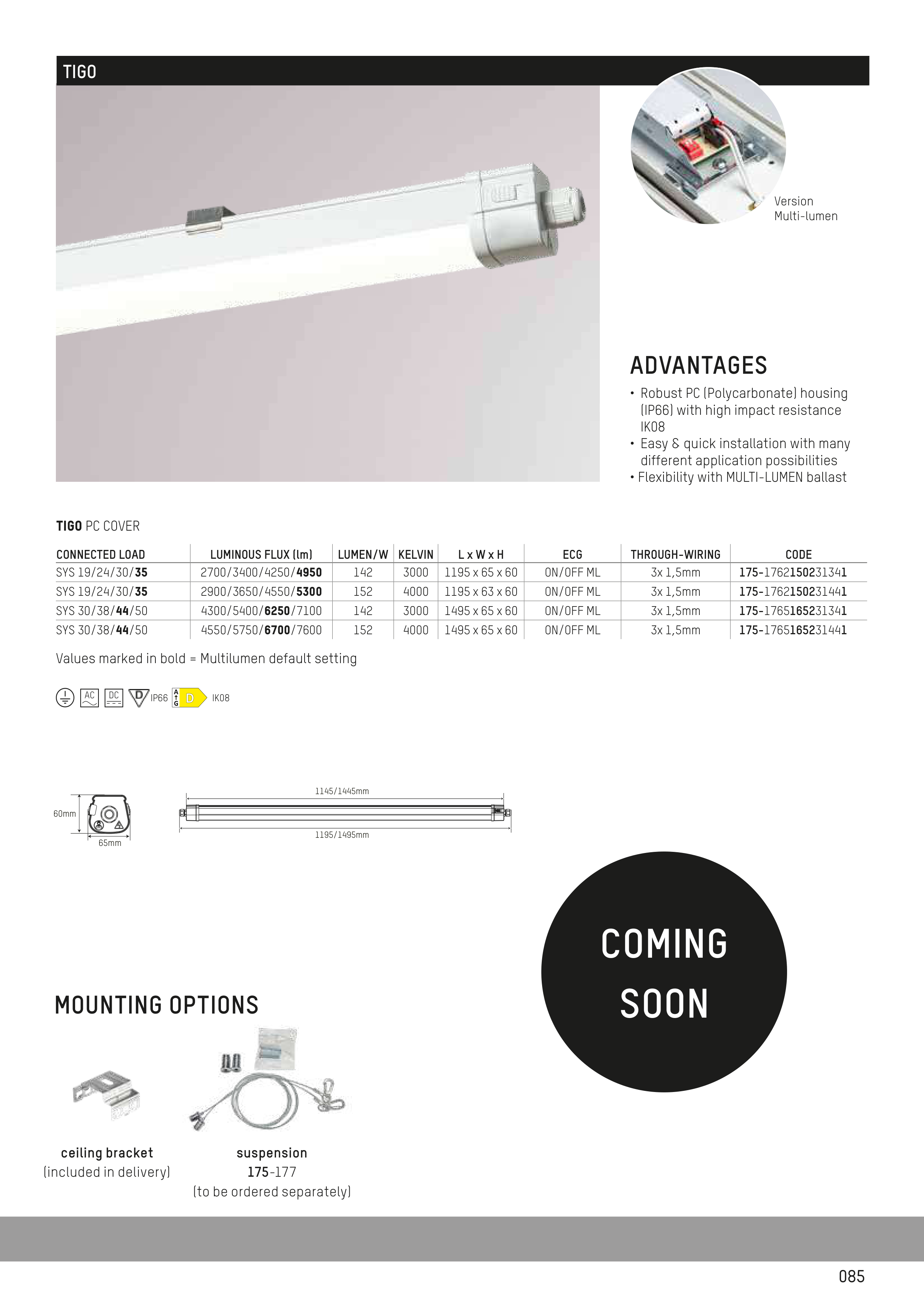

TIGO
ADVANTAGES
• Robust PC (Polycarbonate) housing
(IP66) with high impact resistance
IK08
• Easy & quick installation with many
different application possibilities
• Flexibility with MULTI-LUMEN ballast
TIGO PC COVER
CONNECTED LOAD
LUMINOUS FLUX (lm)
LUMEN/W KELVIN
L x W x H
ECG
THROUGH-WIRING
CODE
SYS 19/24/30/35
2700/3400/4250/4950
142
3000
1195 x 65 x 60
ON/OFF ML
3x 1,5mm
175-1762150231341
SYS 19/24/30/35
2900/3650/4550/5300
152
4000
1195 x 63 x 60
ON/OFF ML
3x 1,5mm
175-1762150231441
SYS 30/38/44/50
4300/5400/6250/7100
142
3000
1495 x 65 x 60
ON/OFF ML
3x 1,5mm
175-1765165231341
SYS 30/38/44/50
4550/5750/6700/7600
152
4000
1495 x 65 x 60
ON/OFF ML
3x 1,5mm
175-1765165231441
Version
Multi-lumen
COMING
SOON
Values marked in bold = Multilumen default setting
DC
AC
IP66
D
A
G
65mm
60mm
1145/1445mm
1195/1495mm
