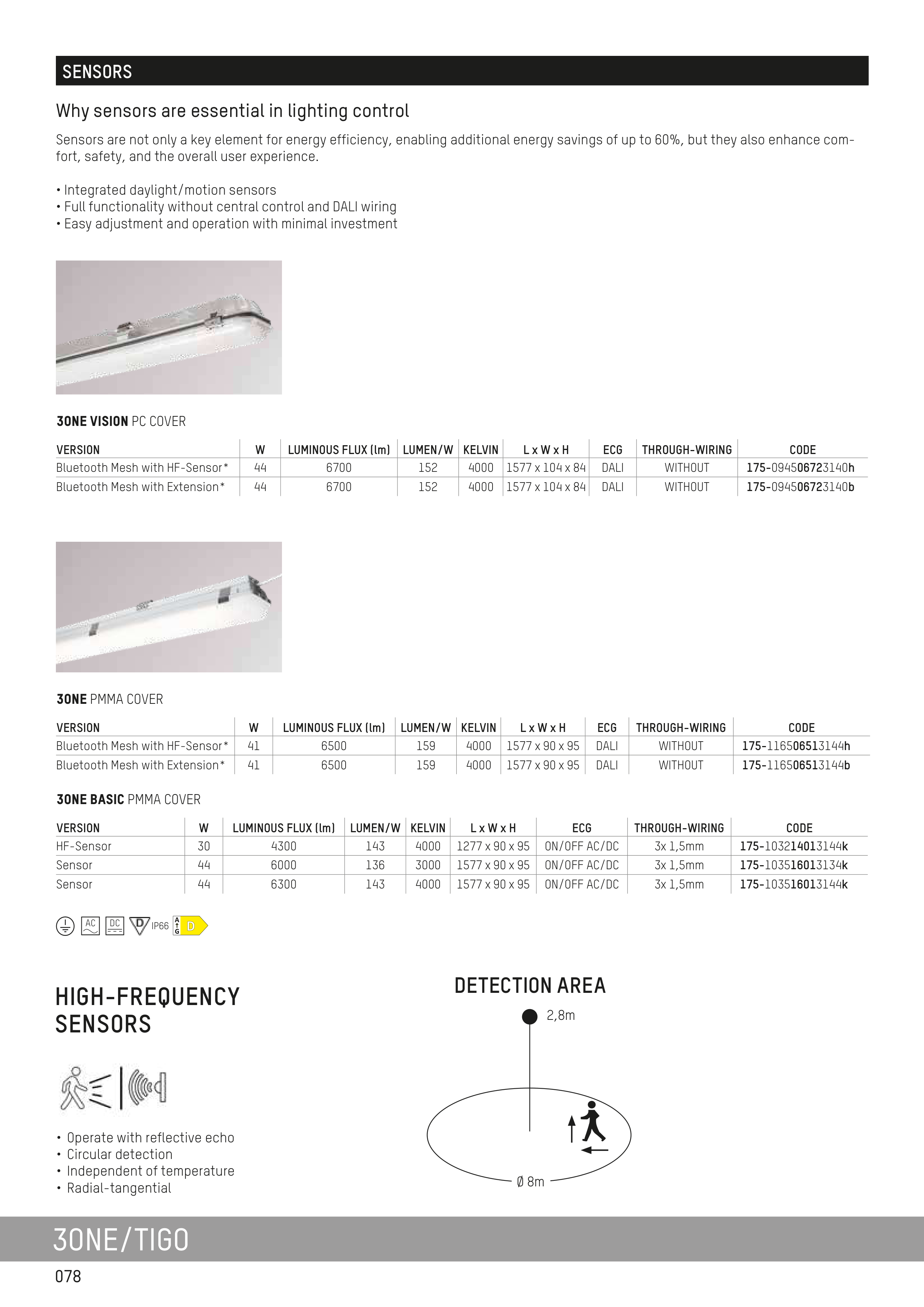

3ONE/TIGO
SENSORS
3ONE VISION PC COVER
VERSION
W
LUMINOUS FLUX (lm)
LUMEN/W KELVIN
L x W x H
ECG
THROUGH-WIRING
CODE
Bluetooth Mesh with HF-Sensor*
44
6700
152
4000
1577 x 104 x 84
DALI
WITHOUT
175-094506723140h
Bluetooth Mesh with Extension*
44
6700
152
4000
1577 x 104 x 84
DALI
WITHOUT
175-094506723140b
3ONE PMMA COVER
VERSION
W
LUMINOUS FLUX (lm)
LUMEN/W KELVIN
L x W x H
ECG
THROUGH-WIRING
CODE
Bluetooth Mesh with HF-Sensor*
41
6500
159
4000
1577 x 90 x 95
DALI
WITHOUT
175-116506513144h
Bluetooth Mesh with Extension*
41
6500
159
4000
1577 x 90 x 95
DALI
WITHOUT
175-116506513144b
3ONE BASIC PMMA COVER
VERSION
W
LUMINOUS FLUX (lm)
LUMEN/W KELVIN
L x W x H
ECG
THROUGH-WIRING
CODE
HF-Sensor
30
4300
143
4000
1277 x 90 x 95
ON/OFF AC/DC
3x 1,5mm
175-103214013144k
Sensor
44
6000
136
3000
1577 x 90 x 95
ON/OFF AC/DC
3x 1,5mm
175-103516013134k
Sensor
44
6300
143
4000
1577 x 90 x 95
ON/OFF AC/DC
3x 1,5mm
175-103516013144k
Why sensors are essential in lighting control
HIGH-FREQUENCY
SENSORS
Sensors are not only a key element for energy efficiency, enabling additional energy savings of up to 60%, but they also enhance com-
fort, safety, and the overall user experience.
• Integrated daylight/motion sensors
• Full functionality without central control and DALI wiring
• Easy adjustment and operation with minimal investment
• Operate with reflective echo
• Circular detection
• Independent of temperature
• Radial-tangential
DC
AC
IP66
D
A
G
2,8m
Ø 8m
DETECTION AREA
