073
90
95
1277/1577
476
800/1100

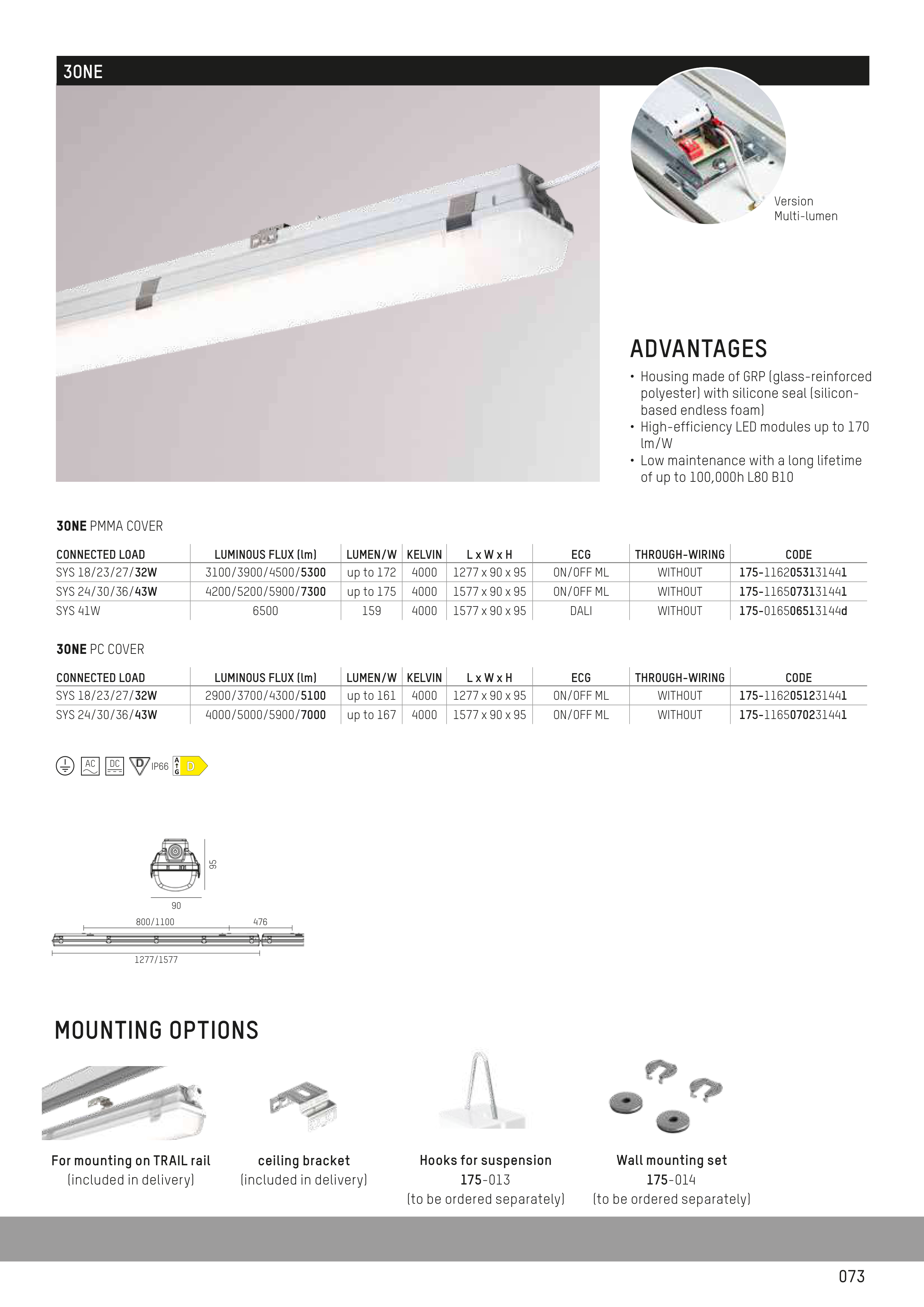

3ONE
DC
AC
IP66
D
A
G
ADVANTAGES
• Housing made of GRP (glass-reinforced
polyester) with silicone seal (silicon-
based endless foam)
• High-efficiency LED modules up to 170
lm/W
• Low maintenance with a long lifetime
of up to 100,000h L80 B10
3ONE PMMA COVER
CONNECTED LOAD
LUMINOUS FLUX (lm)
LUMEN/W KELVIN
L x W x H
ECG
THROUGH-WIRING
CODE
SYS 18/23/27/32W
3100/3900/4500/5300
up to 172
4000
1277 x 90 x 95
ON/OFF ML
WITHOUT
175-1162053131441
SYS 24/30/36/43W
4200/5200/5900/7300
up to 175
4000
1577 x 90 x 95
ON/OFF ML
WITHOUT
175-1165073131441
SYS 41W
6500
159
4000
1577 x 90 x 95
DALI
WITHOUT
175-016506513144d
Version
Multi-lumen
3ONE PC COVER
CONNECTED LOAD
LUMINOUS FLUX (lm)
LUMEN/W KELVIN
L x W x H
ECG
THROUGH-WIRING
CODE
SYS 18/23/27/32W
2900/3700/4300/5100
up to 161
4000
1277 x 90 x 95
ON/OFF ML
WITHOUT
175-1162051231441
SYS 24/30/36/43W
4000/5000/5900/7000
up to 167
4000
1577 x 90 x 95
ON/OFF ML
WITHOUT
175-1165070231441
For mounting on TRAIL rail
(included in delivery)
ceiling bracket
(included in delivery)
Hooks for suspension
175-013
(to be ordered separately)
Wall mounting set
175-014
(to be ordered separately)
MOUNTING OPTIONS
