051
IP54
COMPLETE CODE
XX = HOUSING COLOUR
W
white = 05
S
black = 06
L: 562mm
SENSOR
POLE
610-0294001000XXk
3360
7-POLE
610-0294002000XXk
3360
11-POLE
L: 562mm
SENSOR
POLE
610-0295001000XXk
345
7-POLE
610-0295002000XXk
345
11-POLE
MOTION DETECTOR 3360
MOTION DETECTOR 345
20m
14m
32m
6m
12m
30m
14m
4m
Possible mounting height: 4.00 m – 14.00m
Green: radial / Black: tangential
Possible mounting height: 4.00 m – 14.00m
Green: radial and tangential
Mounting height
Detection area
14 m
Ø 20m (tangential)
9 m
Ø 28m (tangential)
6 m
Ø 32m (tangential)
2,8 m
Ø 36m (tangential)
Mounting height
Detection area
14 m
30 m x 4 m
10 m
25 m x 4 m
8 m
20 m x 4 m
6 m
15 m x 4 m
4 m
10 m x 4 m
58
562
• Multisensor Industry - Sensor Module - Standardized DALI-2
Input Device
• PIR sensor for mounting heights up to 14m & light sensor up
to 1000lx
• Two detection areas – circular 3360 & rectangular 345
• Power supply via DALI bus line

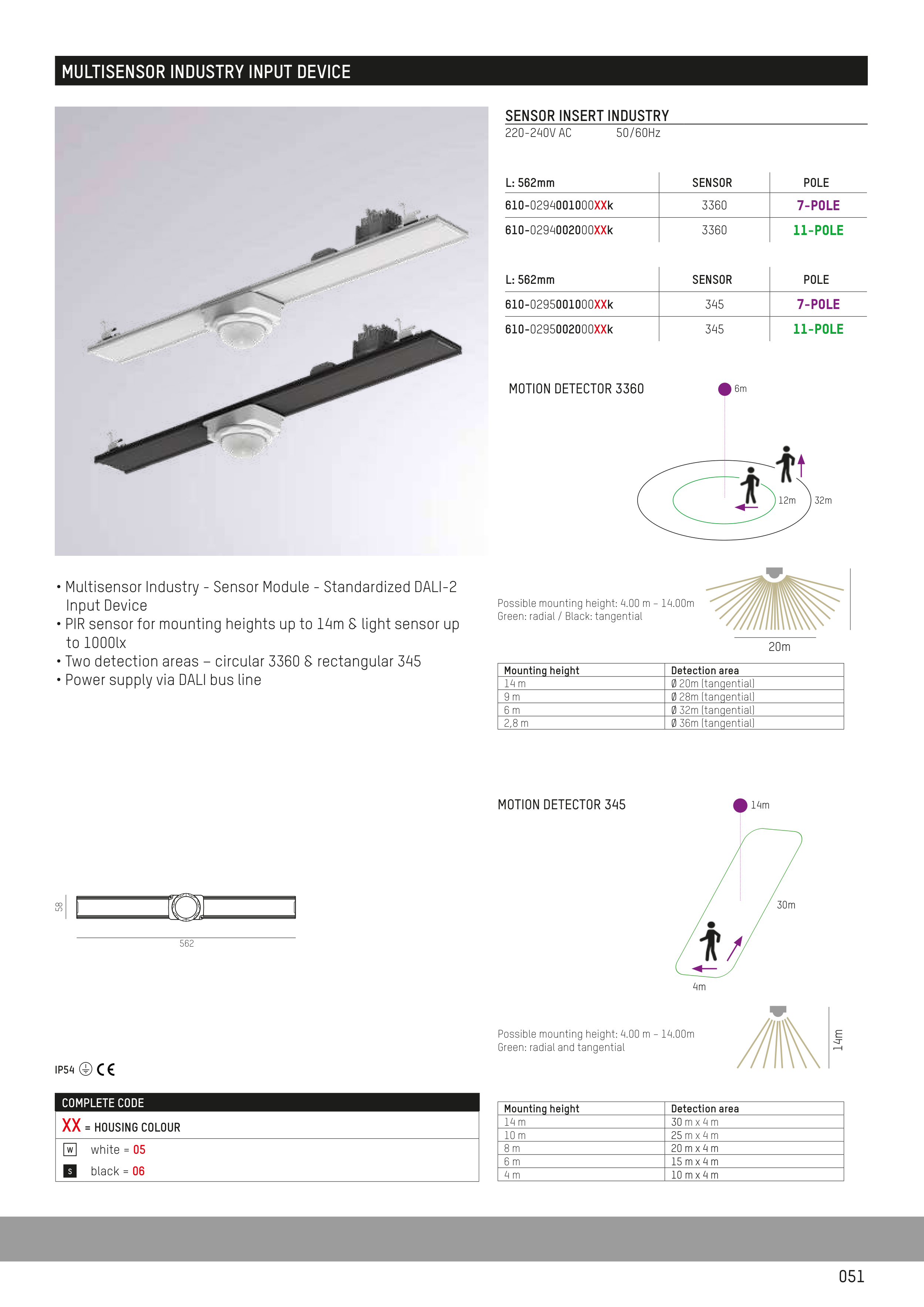

MULTISENSOR INDUSTRY INPUT DEVICE
SENSOR INSERT INDUSTRY
220-240V AC
50/60Hz
