035
SYS 23,5W L: 1137mm
lm
Dimming capability
610-32660115WW050
4170
Non-dimmable
610-32660115WW052
4170
DALI 2 dimmable
SYS 35W L: 1696mm
lm
Dimming capability
610-32670115WW050
6250
Non-dimmable
610-32670115WW052
6250
DALI 2 dimmable
SYS 47W L: 2255mm
lm
Dimming capability
610-32680115WW050
8340
Non-dimmable
610-32680115WW052
8340
DALI 2 dimmable
64
L
W
COMPLETE CODE
WW = LIGHT COLOUR
LED 3000K = 19 CRI>80
5
LED 3500K = 17 CRI>80
4
LED 4000K = 14 CRI>80
5
LED 5000K = 15 CRI>80
65
LED 6500K = 16 CRI>80
• Prismatic square cover with innovative material combination
• Indirect component 5%
• Excellent visual comfort with UGR<19
• Outstanding efficiency 178lm/W

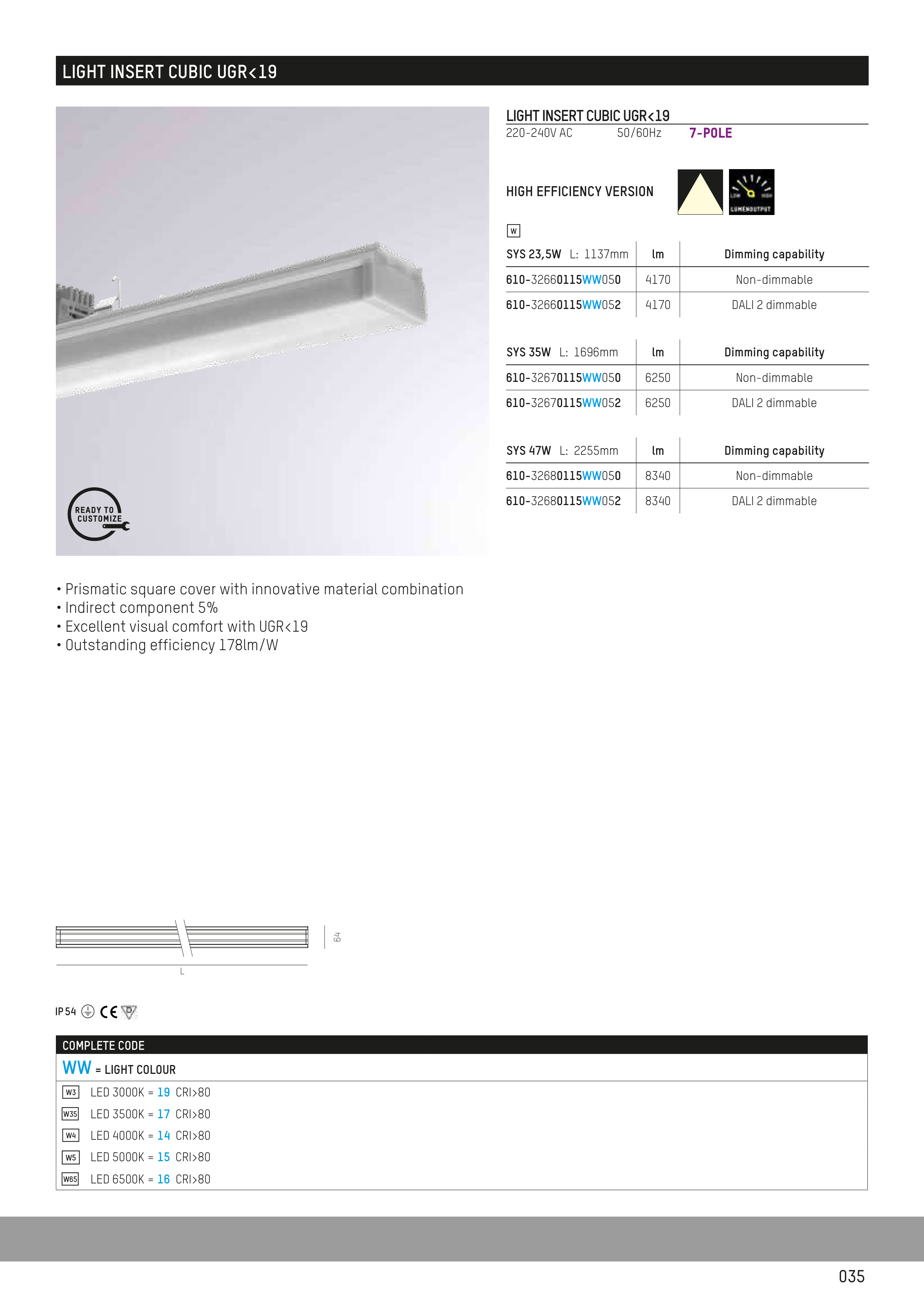

LIGHT INSERT CUBIC UGR<19
LIGHT INSERT CUBIC UGR<19
220-240V AC
50/60Hz
7-POLE
HIGH EFFICIENCY VERSION
