032
TRAIL
64
L
SYS 38W L: 1137mm
lm
5
4
5
65
610-3257021RWW05Y
OP
5790
5790
6110
6110
6110
6020
6020
6340
6340
6340
SYS 57W L: 1696mm
lm
5
4
5
65
610-3258021RWW05Y
OP
8690
8690
9160
9160
9160
9030
9030
9520
9520
9520
SYS 76W L: 2255mm
lm
5
4
5
65
610-3259021RWW05Y
OP
11590 11590 12220 12220 12220
12040 12040 12690 12690 12690
W
W
W
W
W
W
IP 54
WB
WB
NB
SYS 30,5W L: 1137mm
lm
5
4
5
65
610-3257021RWW05Y
5430
5430
5720
5720
5720
SYS 61W L: 2255mm
lm
5
4
5
65
610-3259021RWW05Y
10870 10870 11450 11450 11450
SYS 45W L: 1696mm
lm
5
4
5
65
610-3258021RWW05Y
8150
8150
8590
8590
8590
NB
WB
NB
• Absolutely homogeneous light output surface without visible
LED points
• Prismatic square cover with innovative material combination
• 3 light distribution curves with indirect component up to 10%
• High efficiency up to 191lm/W

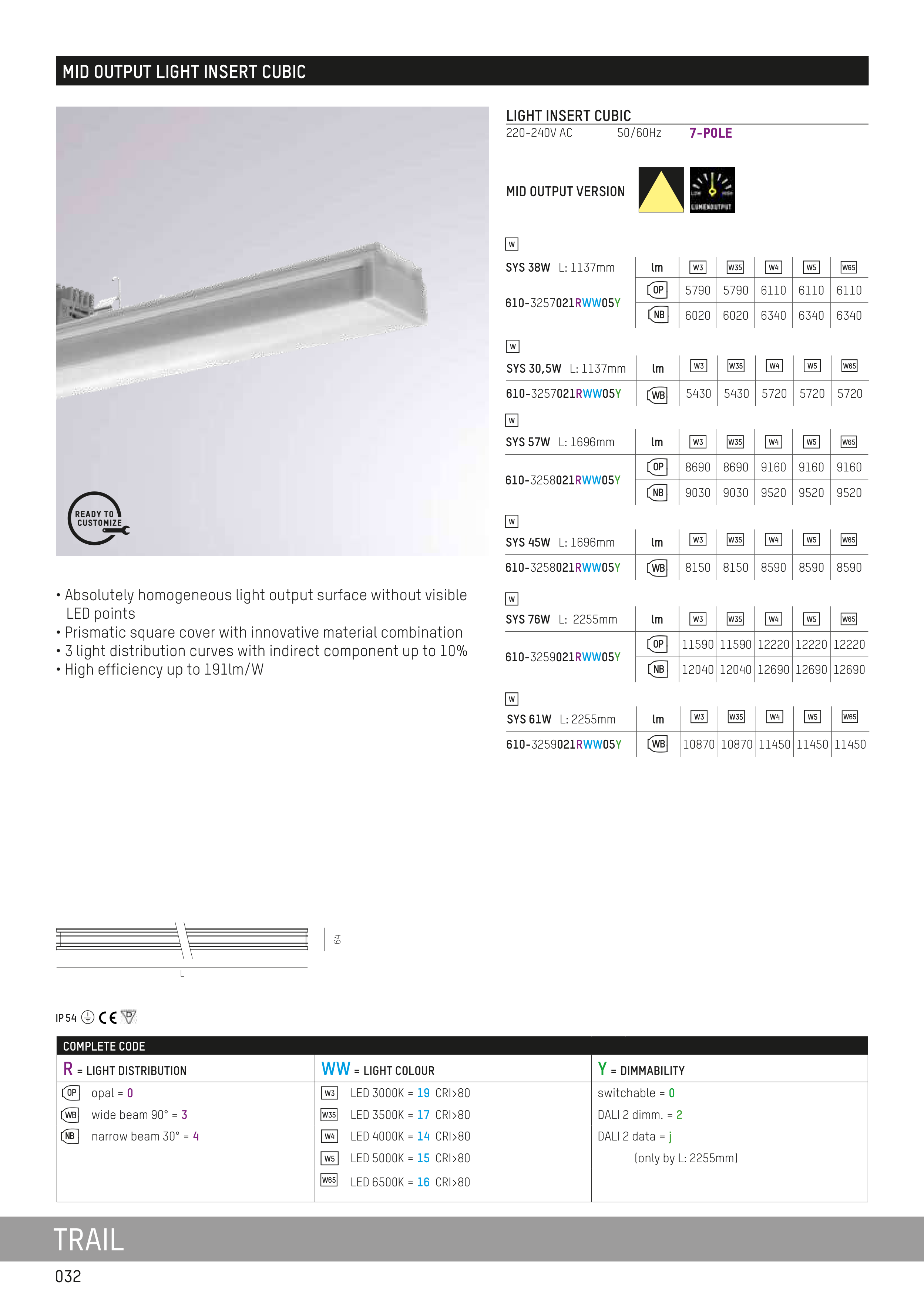

MID OUTPUT LIGHT INSERT CUBIC
LIGHT INSERT CUBIC
220-240V AC
50/60Hz
7-POLE
MID OUTPUT VERSION
COMPLETE CODE
R = LIGHT DISTRIBUTION
WW = LIGHT COLOUR
Y = DIMMABILITY
OP
opal = 0
LED 3000K = 19 CRI>80
switchable = 0
5
LED 3500K = 17 CRI>80
DALI 2 dimm. = 2
wide beam 90° = 3
narrow beam 30° = 4
4
LED 4000K = 14 CRI>80
DALI 2 data = j
5
LED 5000K = 15 CRI>80
(only by L: 2255mm)
65
LED 6500K = 16 CRI>80
WB
NB
INDEX
