031
SYS 23,5W L: 1137mm
lm
5
4
5
65
OP
3720
3720
3450
3450
3450
610-3257011RWW05Y
WB
4100
4100
4320
4320
4320
NB
3870
3870
4070
4070
4070
SYS 35W L: 1696mm
lm
5
4
5
65
OP
5580
5580
5170
5170
5170
610-3258011RWW05Y
WB
6150
6150
6480
6480
6480
NB
5800
5800
6110
6110
6110
SYS 47W L: 2255mm
lm
5
4
5
65
OP
7450
7450
6900
6900
6900
610-3259011RWW05Y
WB
8200
8200
8650
8650
8650
NB
7740
7740
8150
8150
8150
IP 54
64
L
W
W
W
• Absolutely homogeneous light output surface without visible
LED points
• Prismatic square cover with innovative material combination
• 3 light distribution curves with indirect component up to 10%
COMPLETE CODE
R = LIGHT DISTRIBUTION
WW = LIGHT COLOUR
Y = DIMMABILITY
OP
opal = 0
LED 3000K = 19 CRI>80
switchable = 0
5
LED 3500K = 17 CRI>80
DALI 2 dimm. = 2
wide beam 90° = 3
narrow beam 30° = 4
4
LED 4000K = 14 CRI>80
5
LED 5000K = 15 CRI>80
65
LED 6500K = 16 CRI>80

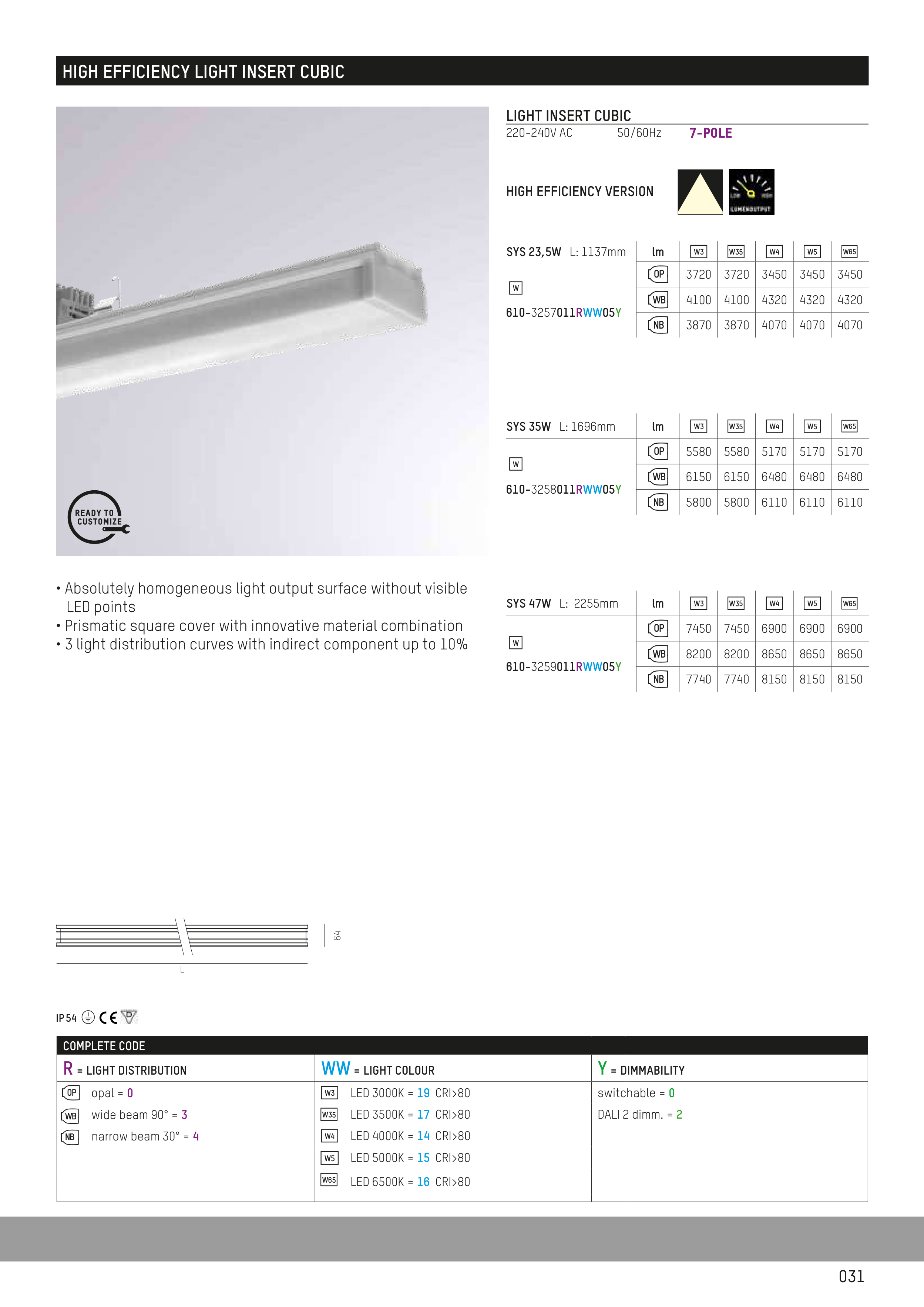

HIGH EFFICIENCY LIGHT INSERT CUBIC
LIGHT INSERT CUBIC
220-240V AC
50/60Hz
7-POLE
HIGH EFFICIENCY VERSION
WB
NB
