029
IP54
64
L
SYS 58W L: 1137mm
lm
5
4
5
65
OP
8450
8450
8910
8910
6190
610-3254031RWWXXY
8800
8800
9270
9270
9270
9090
9090
9590
9590
6660
HR
8950
8950
9440
9440
9440
SYS 88W L: 1696mm
lm
5
4
5
65
OP
12680 12680 13370 13370 13370
610-3255031RWWXXY
13200 13200 13910 13910 13910
13640 13640 14380 14380 14380
HR
13430 13430 14160 14160 14160
SYS 117W L: 2255mm
lm
5
4
5
65
OP
16910 16910 17830 17830 17830
610-3256031RWWXXY
17600 17600 18550 18550 18550
18190 18190 19180 19180 19180
HR
17910 17910 18880 18880 18880
COMPLETE CODE
R = LIGHT DISTRIBUTION
WW = LIGHT COLOUR
XX = HOUSING COLOUR
Y = DIMMABILITY
OP
opal = 0
LED 3000K = 19 CRI>80
W
white = 05
switchable = 0
MB
medium beam 60° = 5
5
LED 3500K = 17 CRI>80
S
black = 06
DALI 2 dimm. = 2
WB
wide beam 90° = 3
4
LED 4000K = 14 CRI>80
HR
High rack = 8
5
LED 5000K = 15 CRI>80
65
LED 6500K = 16 CRI>80
WB
MB
WB
MB
MB
WB
NOTE: Lumen values refer to white housing only
for black housing check the QR code
NOTE: Lumen values refer to white housing only
for black housing check the QR code
• Suitable for heavy industry (D-mark) and food industry (IFS)
• IP54 clear PMMA cover with enhanced impact resistance IK06
• Long lifetime of 70,000h L90 B10 @50°C
• Excellent visual comfort with UGR<22 (MB, HR 14380lm)

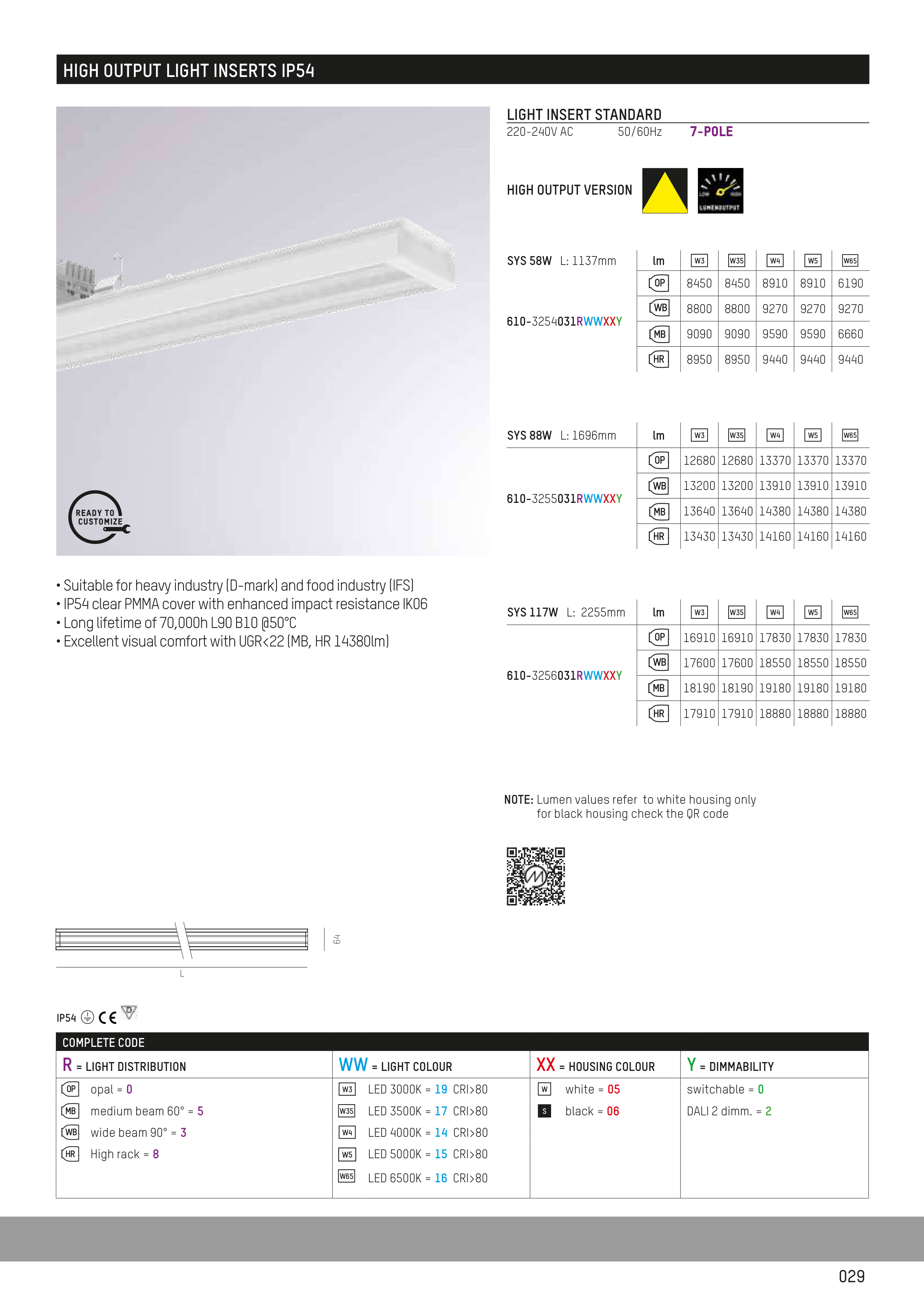

HIGH OUTPUT LIGHT INSERTS IP54
LIGHT INSERT STANDARD
220-240V AC
50/60Hz
7-POLE
HIGH OUTPUT VERSION
