028
TRAIL
IP 54
64
L
SYS 38W L: 1137mm
lm
5
4
5
65
OP
5870
5870
6190
6190
6190
610-3254021RWWXXY
6110
6110
6440
6440
6440
6320
6320
6660
6660
6660
HR
6220
6220
6560
6560
6560
SYS 57W L: 1696mm
lm
5
4
5
65
OP
8810
8810
9290
9290
9290
610-3255021RWWXXY
9170
9170
9670
9670
9670
9480
9480
9990
9990
9990
HR
9330
9330
9840
9840
9840
SYS 76W L: 2255mm
lm
5
4
5
65
OP
11750 11750 12390 12390 12390
610-3256021RWWXXY
12230 12230 12890 12890 12890
12640 12640 13330 13330 13330
HR
12450 12450 13120 13120 13120
COMPLETE CODE
R = LIGHT DISTRIBUTION
WW = LIGHT COLOUR
XX = HOUSING COLOUR
Y = DIMMABILITY
OP
opal = 0
LED 3000K = 19 CRI>80
W
white = 05
switchable = 0
MB
medium beam 60° = 5
5
LED 3500K = 17 CRI>80
S
black = 06
DALI 2 dimm. = 2
WB
wide beam 90° = 3
4
LED 4000K = 14 CRI>80
DALI 2 data = j
HR
High rack = 8
5
LED 5000K = 15 CRI>80
(only by 2255mm)
65
LED 6500K = 16 CRI>80
WB
MB
MB
WB
MB
WB
• Suitable for heavy industry (D-mark) and food industry (IFS)
• IP54 clear PMMA cover with enhanced impact resistance IK06
• Long lifetime of 100,000h L90 B10
• For higher ambient temperature up to 50°C
NOTE: Lumen values refer to white housing only
for black housing check the QR code

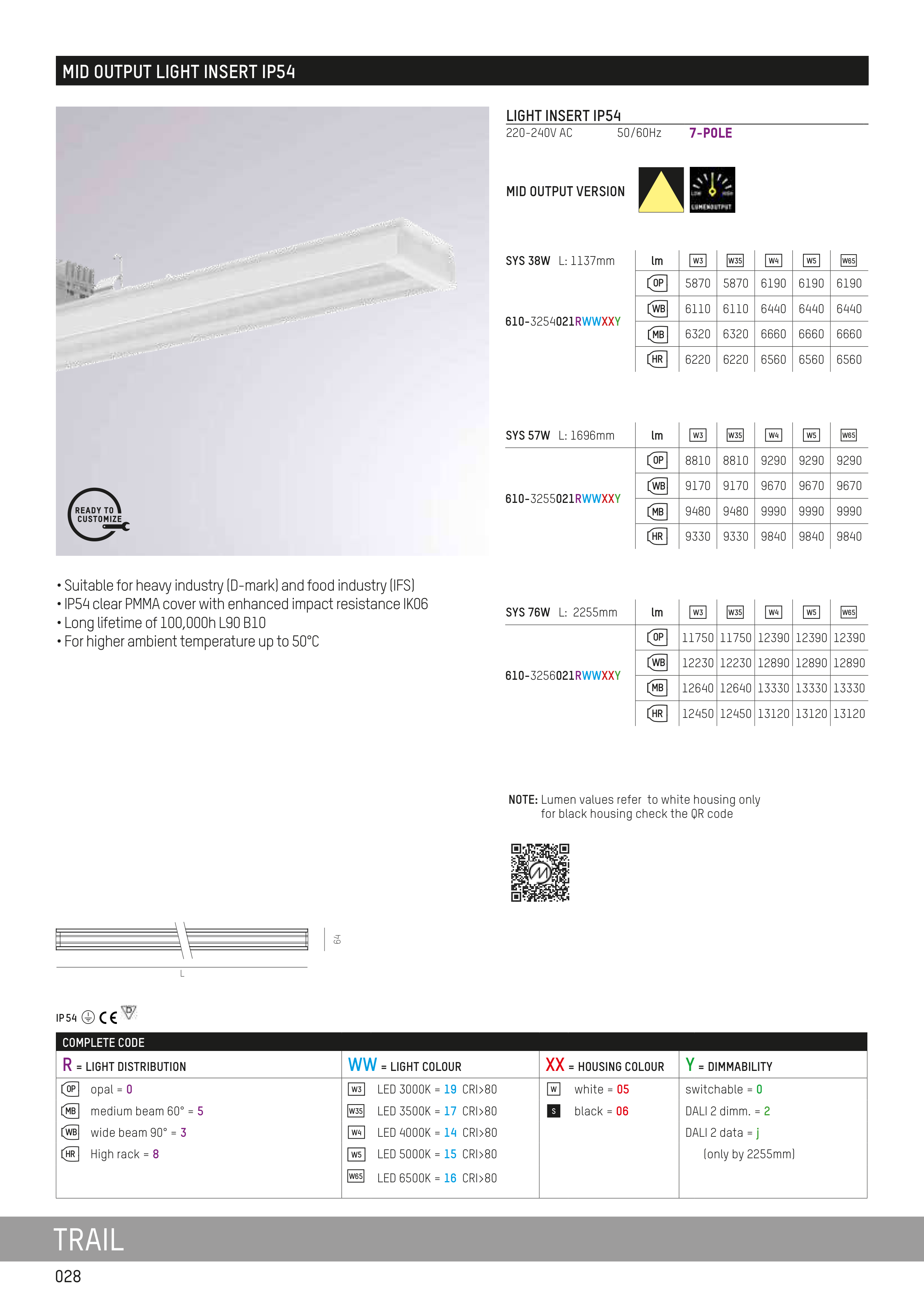

MID OUTPUT LIGHT INSERT IP54
LIGHT INSERT IP54
220-240V AC
50/60Hz
7-POLE
MID OUTPUT VERSION
