024
TRAIL
64
L
SYS 38W L: 1137mm
lm
5
4
5
65
AS
5940
5940
6260
6260
6260
DAS
5940
5940
6260
6260
6260
610-3251021RWWXXY
WB
6280
6280
6620
6620
6620
MB
6480
6480
6830
6830
6830
6410
6410
6760
6760
6760
SYS 57W L: 1696mm
lm
5
4
5
65
AS
8910
8910
9390
9390
9390
DAS
8910
8910
9390
9390
9390
610-3252021RWWXXY
WB
9420
9420
9930
9930
9930
MB
9720
9720 10250 10250 10250
9620
9620 10140 10140 10140
SYS 76W L: 2255mm
lm
5
4
5
65
AS
11880 11880 12520 12520 12520
DAS
11880 11880 12520 12520 12520
610-3253021RWWXXY
WB
12560 12560 13240 13240 13240
MB
12960 12960 13660 13660 13660
12830 12830 13520 13520 13520
HR
HR
HR
MB
HR
IP 20/IP40
• Coloured aluminium housing with optimal heat dissipation
• Long lifetime of 100,000h L90 B10
• For higher ambient temperature up to 50°C
• Excellent visual comfort with UGR<22 (MB, 10250lm)
NOTE: Lumen values refer to white housing only
for silver and black housing check the QR code

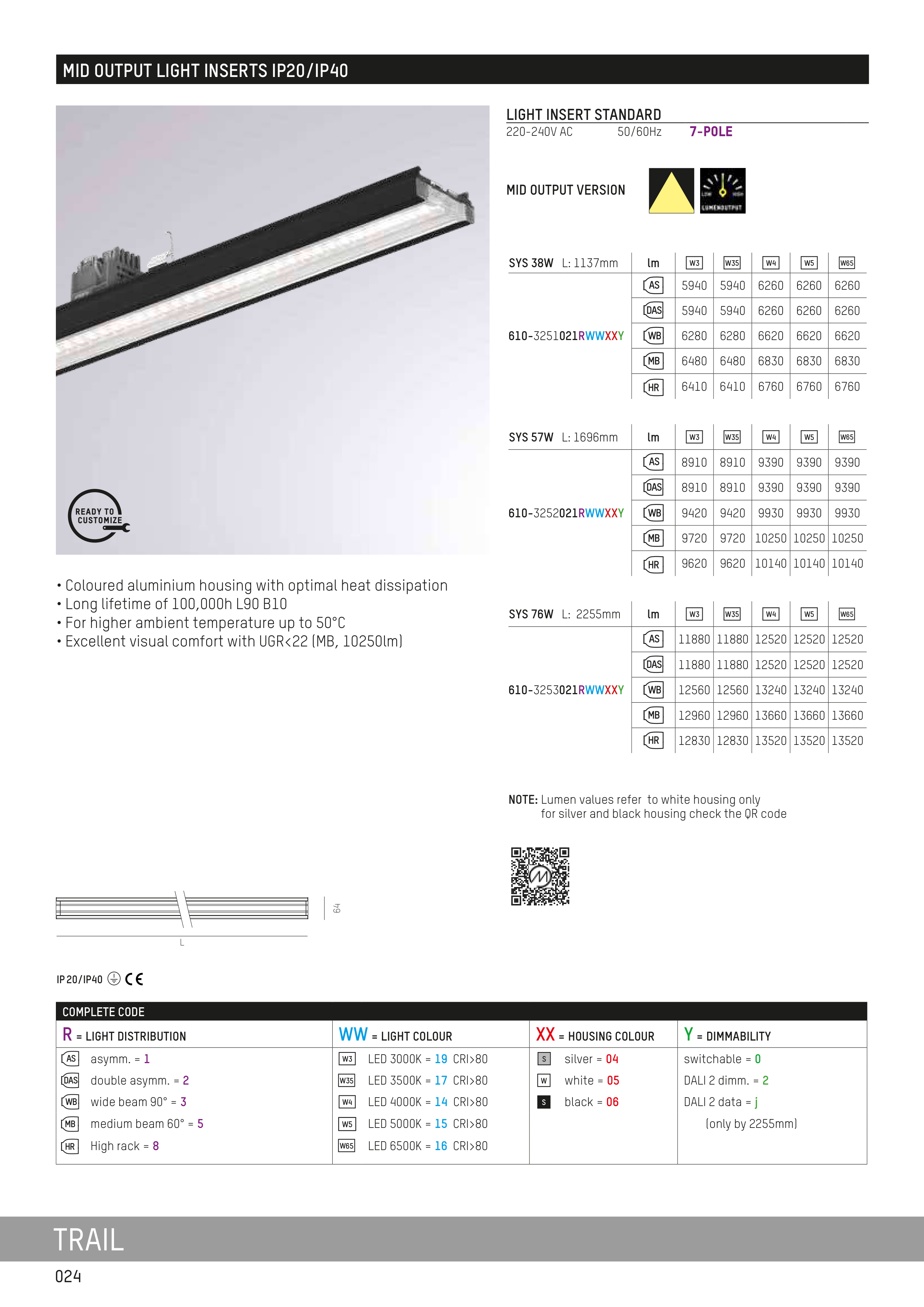

MID OUTPUT LIGHT INSERTS IP20/IP40
LIGHT INSERT STANDARD
220-240V AC
50/60Hz
7-POLE
MID OUTPUT VERSION
COMPLETE CODE
R = LIGHT DISTRIBUTION
WW = LIGHT COLOUR
XX = HOUSING COLOUR
Y = DIMMABILITY
AS
asymm. = 1
LED 3000K = 19 CRI>80
S
silver = 04
switchable = 0
DAS
double asymm. = 2
5
LED 3500K = 17 CRI>80
W
white = 05
DALI 2 dimm. = 2
WB
wide beam 90° = 3
4
LED 4000K = 14 CRI>80
S
black = 06
DALI 2 data = j
medium beam 60° = 5
5
LED 5000K = 15 CRI>80
(only by 2255mm)
High rack = 8
65
LED 6500K = 16 CRI>80
INDEX
