114
TUNE
Ø 415
Ø 280
185
Ø 360
279
230
42
Ø 12
Ø 280
252
190
42
Ø 12
AC CONNECTOR & SOCKET
(plastic, IP66, 3-pole, conductor cross-section 0.5mm² – 2.5mm²)
157-0063000000000

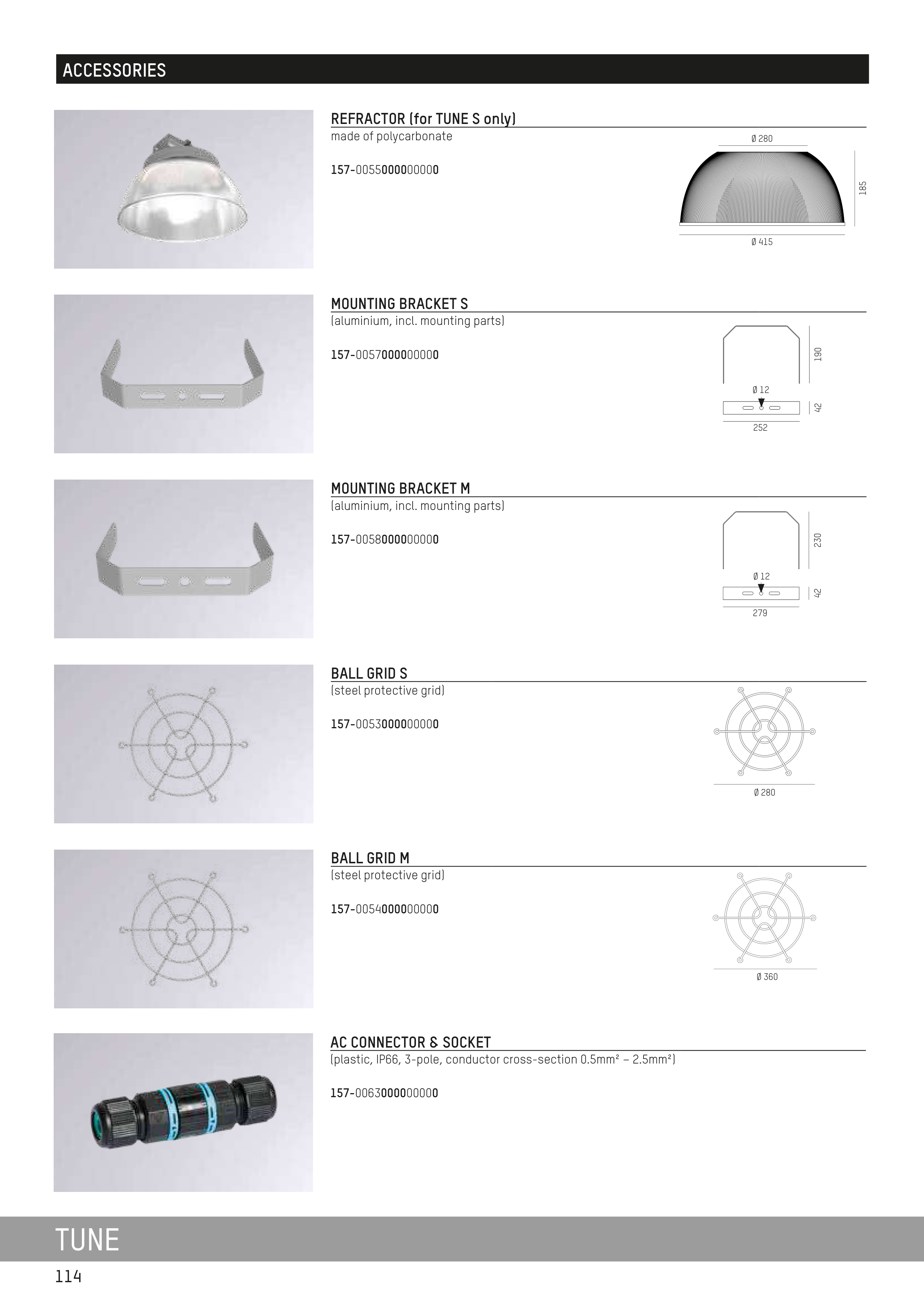

REFRACTOR (for TUNE S only)
made of polycarbonate
157-0055000000000
MOUNTING BRACKET S
(aluminium, incl. mounting parts)
157-0057000000000
MOUNTING BRACKET M
(aluminium, incl. mounting parts)
157-0058000000000
BALL GRID S
(steel protective grid)
157-0053000000000
BALL GRID M
(steel protective grid)
157-0054000000000
ACCESSORIES
INDEX
