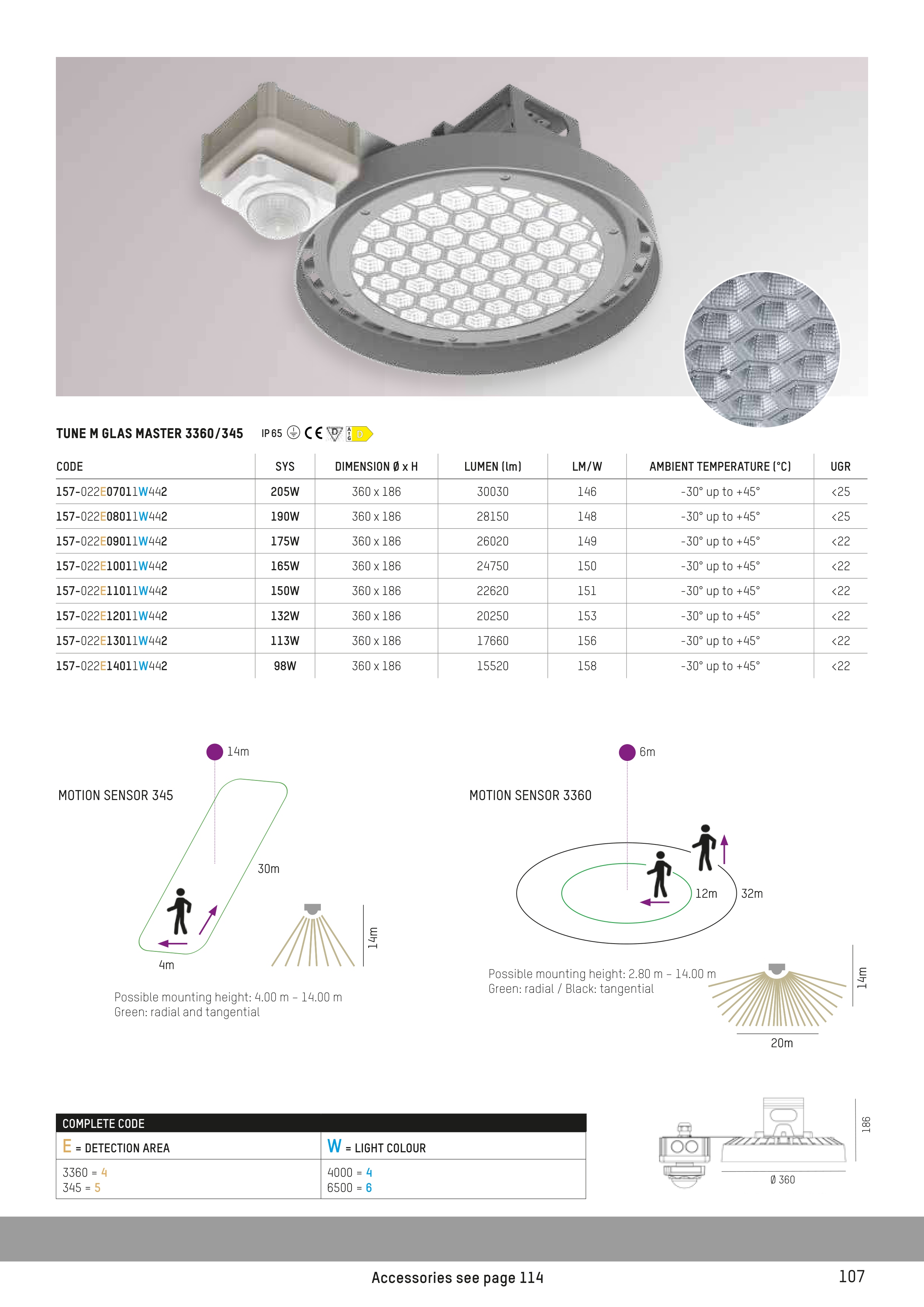

TUNE M GLAS MASTER 3360/345
IP 65
D
A
G
Ø 360
186
32m
6m
12m
32m
12m
20m
14m
20m
14m
30m
14m
4m
30m
4m
14m
14m
Accessories see page 114
CODE
SYS
DIMENSION Ø x H
LUMEN (lm)
LM/W
AMBIENT TEMPERATURE (°C)
UGR
157-022E07011W442
205W
360 x 186
30030
146
-30° up to +45°
<25
157-022E08011W442
190W
360 x 186
28150
148
-30° up to +45°
<25
157-022E09011W442
175W
360 x 186
26020
149
-30° up to +45°
<22
157-022E10011W442
165W
360 x 186
24750
150
-30° up to +45°
<22
157-022E11011W442
150W
360 x 186
22620
151
-30° up to +45°
<22
157-022E12011W442
132W
360 x 186
20250
153
-30° up to +45°
<22
157-022E13011W442
113W
360 x 186
17660
156
-30° up to +45°
<22
157-022E14011W442
98W
360 x 186
15520
158
-30° up to +45°
<22
COMPLETE CODE
E = DETECTION AREA
W = LIGHT COLOUR
3360 = 4
345 = 5
4000 = 4
6500 = 6
Possible mounting height: 2.80 m – 14.00 m
Green: radial / Black: tangential
MOTION SENSOR 3360
MOTION SENSOR 345
Possible mounting height: 4.00 m – 14.00 m
Green: radial and tangential
