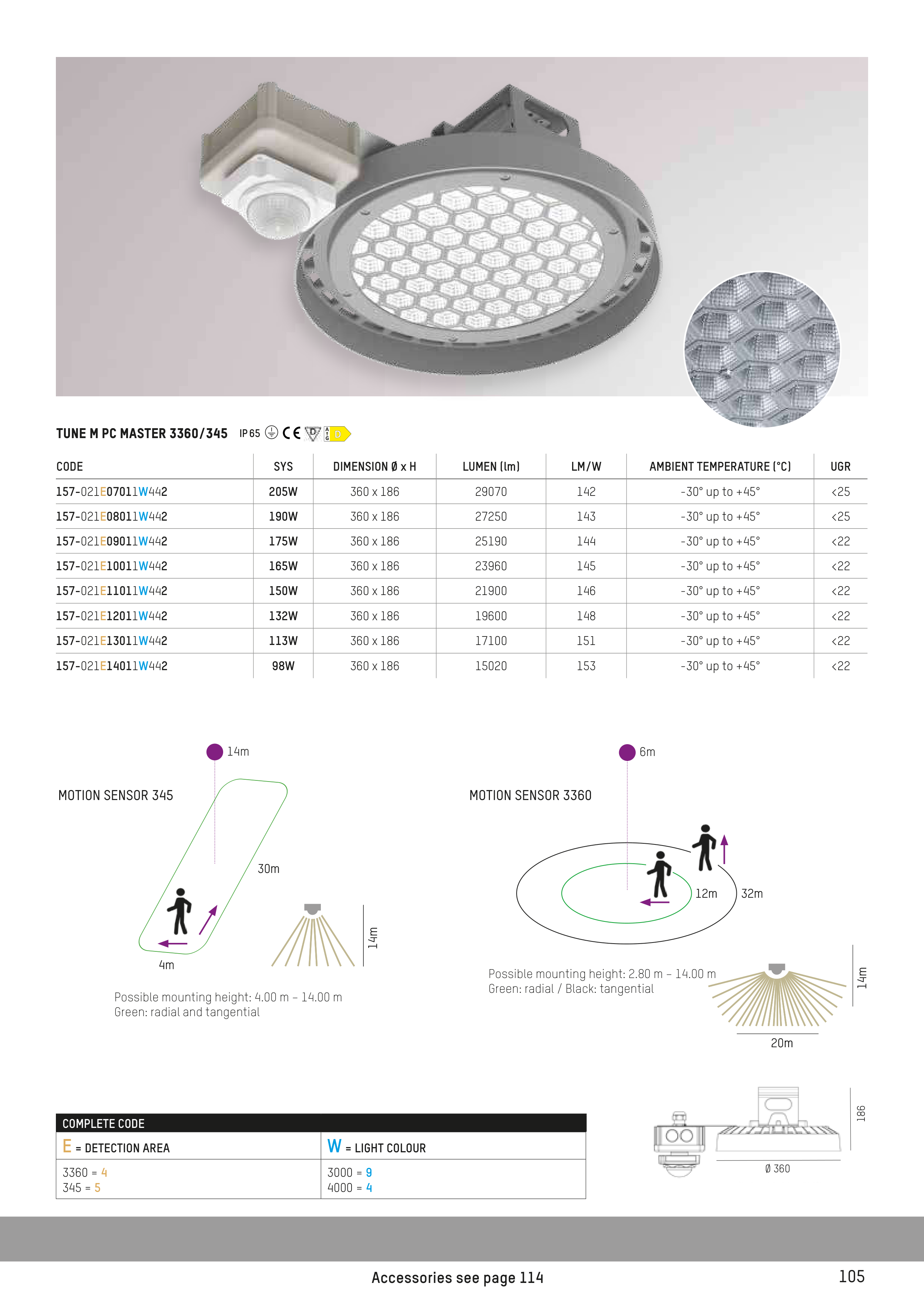

TUNE M PC MASTER 3360/345
IP 65
D
A
G
32m
6m
12m
32m
12m
20m
14m
20m
14m
30m
14m
4m
30m
4m
14m
14m
Accessories see page 114
CODE
SYS
DIMENSION Ø x H
LUMEN (lm)
LM/W
AMBIENT TEMPERATURE (°C)
UGR
157-021E07011W442
205W
360 x 186
29070
142
-30° up to +45°
<25
157-021E08011W442
190W
360 x 186
27250
143
-30° up to +45°
<25
157-021E09011W442
175W
360 x 186
25190
144
-30° up to +45°
<22
157-021E10011W442
165W
360 x 186
23960
145
-30° up to +45°
<22
157-021E11011W442
150W
360 x 186
21900
146
-30° up to +45°
<22
157-021E12011W442
132W
360 x 186
19600
148
-30° up to +45°
<22
157-021E13011W442
113W
360 x 186
17100
151
-30° up to +45°
<22
157-021E14011W442
98W
360 x 186
15020
153
-30° up to +45°
<22
COMPLETE CODE
E = DETECTION AREA
W = LIGHT COLOUR
3360 = 4
345 = 5
3000 = 9
4000 = 4
Possible mounting height: 2.80 m – 14.00 m
Green: radial / Black: tangential
MOTION SENSOR 3360
MOTION SENSOR 345
Possible mounting height: 4.00 m – 14.00 m
Green: radial and tangential
