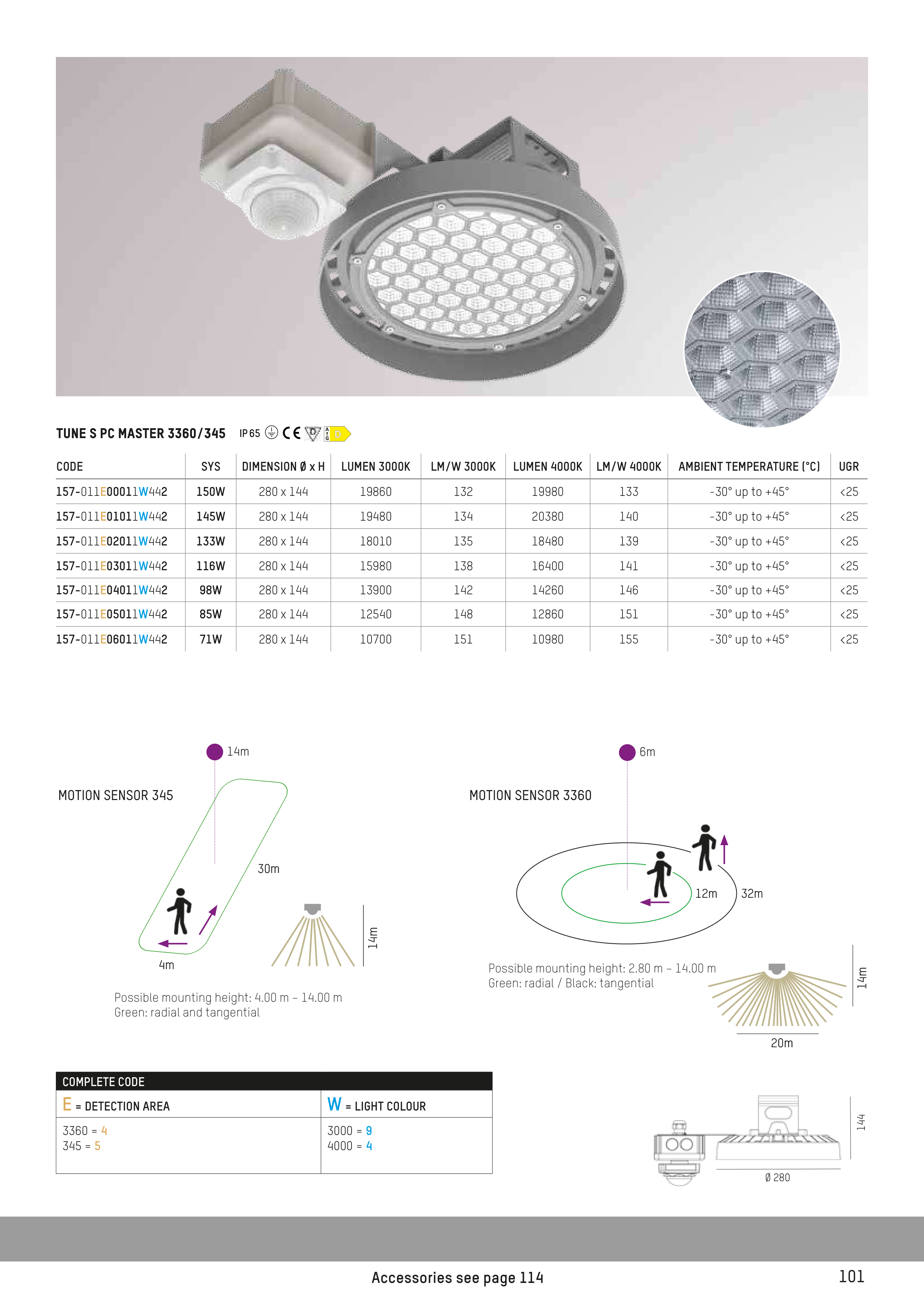

TUNE S PC MASTER 3360/345
IP 65
D
A
G
32m
6m
12m
32m
12m
20m
14m
20m
14m
30m
14m
4m
30m
4m
14m
14m
Ø 280
144
Accessories see page 114
CODE
SYS
DIMENSION Ø x H
LUMEN 3000K
LM/W 3000K
LUMEN 4000K
LM/W 4000K
AMBIENT TEMPERATURE (°C)
UGR
157-011E00011W442
150W
280 x 144
19860
132
19980
133
-30° up to +45°
<25
157-011E01011W442
145W
280 x 144
19480
134
20380
140
-30° up to +45°
<25
157-011E02011W442
133W
280 x 144
18010
135
18480
139
-30° up to +45°
<25
157-011E03011W442
116W
280 x 144
15980
138
16400
141
-30° up to +45°
<25
157-011E04011W442
98W
280 x 144
13900
142
14260
146
-30° up to +45°
<25
157-011E05011W442
85W
280 x 144
12540
148
12860
151
-30° up to +45°
<25
157-011E06011W442
71W
280 x 144
10700
151
10980
155
-30° up to +45°
<25
Possible mounting height: 2.80 m – 14.00 m
Green: radial / Black: tangential
MOTION SENSOR 3360
Possible mounting height: 4.00 m – 14.00 m
Green: radial and tangential
MOTION SENSOR 345
COMPLETE CODE
E = DETECTION AREA
W = LIGHT COLOUR
3360 = 4
345 = 5
3000 = 9
4000 = 4
