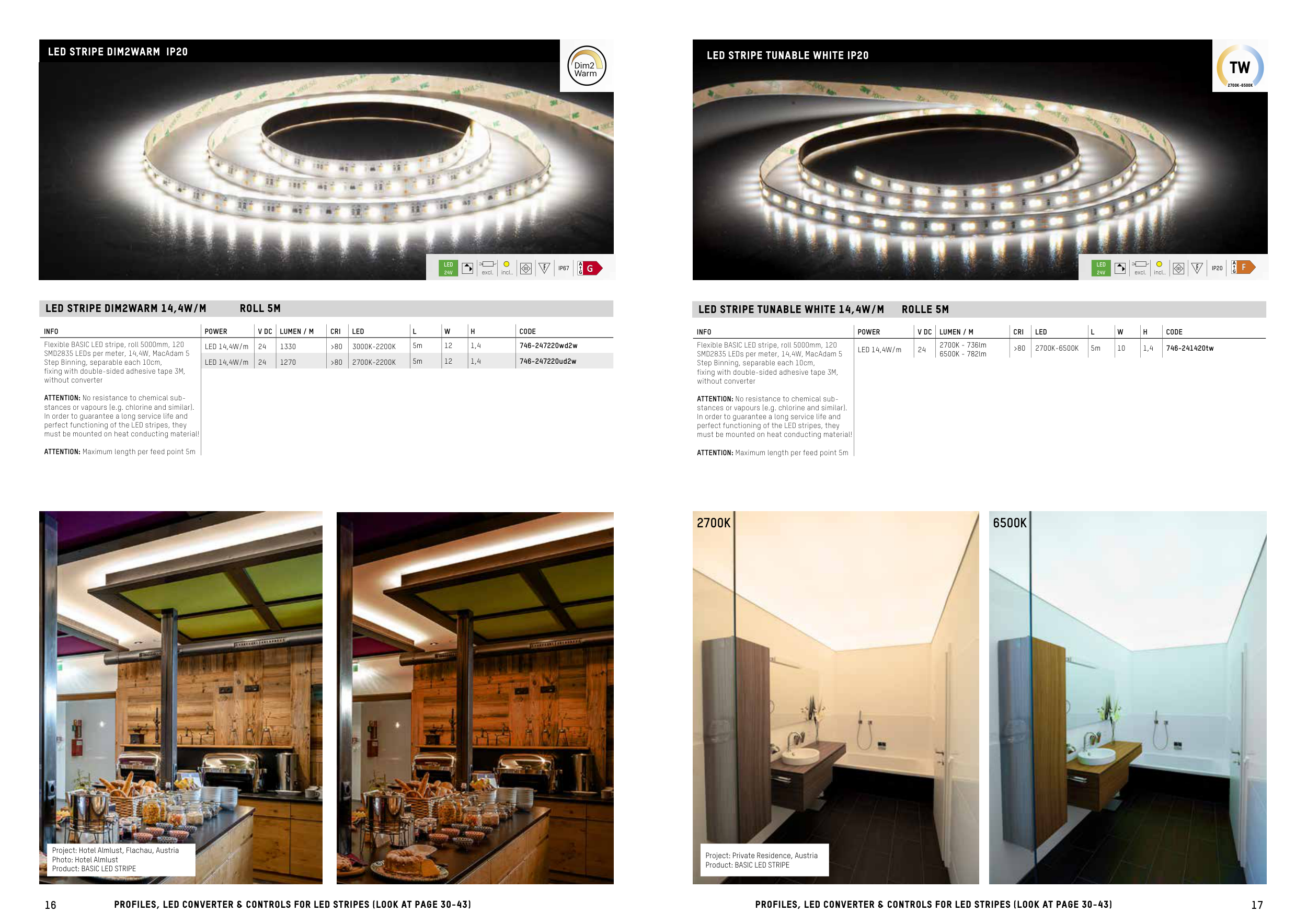

LED STRIPE DIM2WARM IP20
LED STRIPE TUNABLE WHITE IP20
INFO
POWER
V DC
LUMEN / M
CRI
LED
L
W
H
CODE
Flexible BASIC LED stripe, roll 5000mm, 120
SMD2835 LEDs per meter, 14,4W, MacAdam 5
Step Binning, separable each 10cm,
fixing with double-sided adhesive tape 3M,
without converter
ATTENTION: No resistance to chemical sub-
stances or vapours (e.g. chlorine and similar).
In order to guarantee a long service life and
perfect functioning of the LED stripes, they
must be mounted on heat conducting material!
ATTENTION: Maximum length per feed point 5m
LED 14,4W/m
24
1330
>80
3000K-2200K
5m
12
1,4
746-247220wd2w
LED 14,4W/m
24
1270
>80
2700K-2200K
5m
12
1,4
746-247220ud2w
INFO
POWER
V DC
LUMEN / M
CRI
LED
L
W
H
CODE
Flexible BASIC LED stripe, roll 5000mm, 120
SMD2835 LEDs per meter, 14,4W, MacAdam 5
Step Binning, separable each 10cm,
fixing with double-sided adhesive tape 3M,
without converter
ATTENTION: No resistance to chemical sub-
stances or vapours (e.g. chlorine and similar).
In order to guarantee a long service life and
perfect functioning of the LED stripes, they
must be mounted on heat conducting material!
ATTENTION: Maximum length per feed point 5m
LED 14,4W/m
24
2700K - 736lm
6500K - 782lm
>80
2700K-6500K
5m
10
1,4
746-241420tw
LED STRIPE DIM2WARM 14,4W/M
ROLL 5M
LED STRIPE TUNABLE WHITE 14,4W/M ROLLE 5M
Project: Hotel Almlust, Flachau, Austria
Photo: Hotel Almlust
Product: BASIC LED STRIPE
Project: Private Residence, Austria
Product: BASIC LED STRIPE
LED
24V
excl.
incl..
IP67
LED
24V
excl.
incl..
IP20
TW
2700k-6500K
2700K
6500K
PROFILES, LED CONVERTER & CONTROLS FOR LED STRIPES (LOOK AT PAGE 30-43)
PROFILES, LED CONVERTER & CONTROLS FOR LED STRIPES (LOOK AT PAGE 30-43)
G
A
G
F
A
G
Dim2
Warm
16
17
