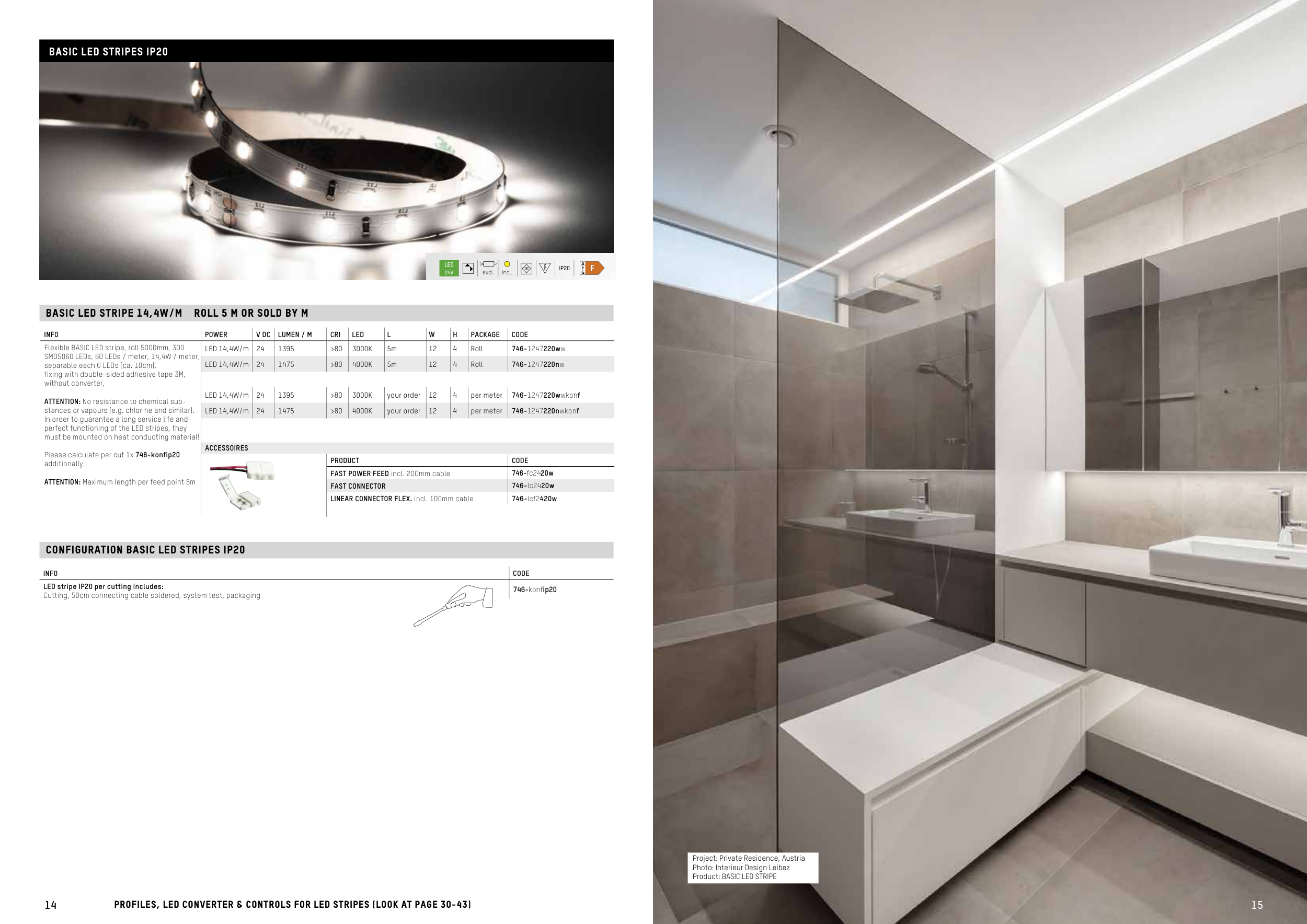

BASIC LED STRIPES IP20
PROFILES, LED CONVERTER & CONTROLS FOR LED STRIPES (LOOK AT PAGE 30-43)
LED
24V
excl.
incl..
IP20
15
Project: Private Residence, Austria
Photo: Interieur Design Leibez
Product: BASIC LED STRIPE
INFO
CODE
LED stripe IP20 per cutting includes:
Cutting, 50cm connecting cable soldered, system test, packaging
746-konfip20
CONFIGURATION BASIC LED STRIPES IP20
INFO
POWER
V DC
LUMEN / M
CRI
LED
L
W
H
PACKAGE
CODE
Flexible BASIC LED stripe, roll 5000mm, 300
SMD5060 LEDs, 60 LEDs / meter, 14,4W / meter,
separable each 6 LEDs (ca. 10cm),
fixing with double-sided adhesive tape 3M,
without converter,
ATTENTION: No resistance to chemical sub-
stances or vapours (e.g. chlorine and similar).
In order to guarantee a long service life and
perfect functioning of the LED stripes, they
must be mounted on heat conducting material!
Please calculate per cut 1x 746-konfip20
additionally.
ATTENTION: Maximum length per feed point 5m
LED 14,4W/m
24
1395
>80
3000K
5m
12
4
Roll
746-1247220ww
LED 14,4W/m
24
1475
>80
4000K
5m
12
4
Roll
746-1247220nw
LED 14,4W/m
24
1395
>80
3000K
your order
12
4
per meter
746-1247220wwkonf
LED 14,4W/m
24
1475
>80
4000K
your order
12
4
per meter
746-1247220nwkonf
ACCESSOIRES
PRODUCT
CODE
FAST POWER FEED incl. 200mm cable
746-fc2420w
FAST CONNECTOR
746-lc2420w
LINEAR CONNECTOR FLEX. incl. 100mm cable
746-lcf2420w
BASIC LED STRIPE 14,4W/M ROLL 5 M OR SOLD BY M
F
A
G
14
