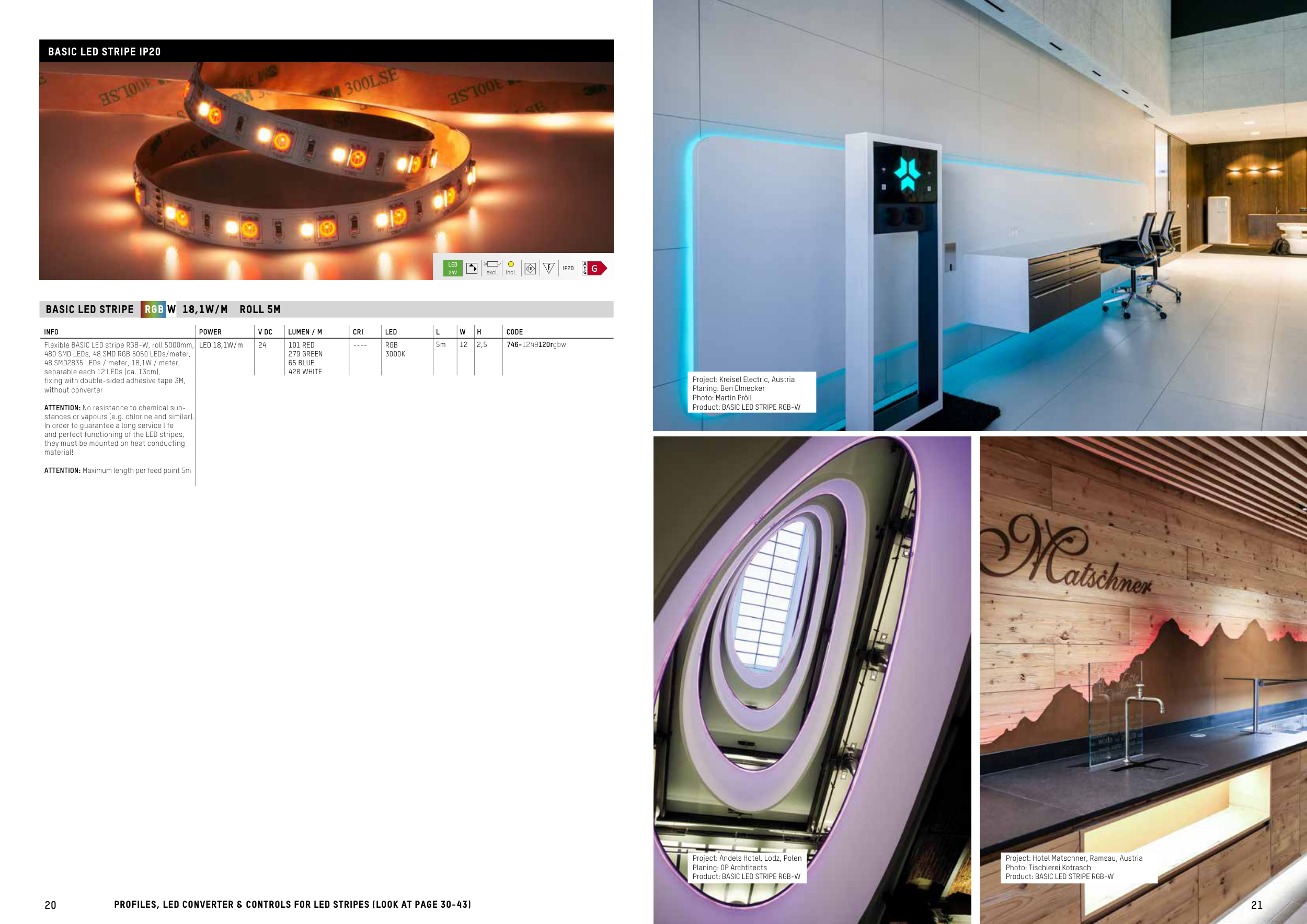

BASIC LED STRIPE IP20
INFO
POWER
V DC
LUMEN / M
CRI
LED
L
W
H
CODE
Flexible BASIC LED stripe RGB-W, roll 5000mm,
480 SMD LEDs, 48 SMD RGB 5050 LEDs/meter,
48 SMD2835 LEDs / meter, 18,1W / meter,
separable each 12 LEDs (ca. 13cm),
fixing with double-sided adhesive tape 3M,
without converter
ATTENTION: No resistance to chemical sub-
stances or vapours (e.g. chlorine and similar).
In order to guarantee a long service life
and perfect functioning of the LED stripes,
they must be mounted on heat conducting
material!
ATTENTION: Maximum length per feed point 5m
LED 18,1W/m
24
101 RED
279 GREEN
65 BLUE
428 WHITE
----
RGB
3000K
5m
12
2,5
746-1249120rgbw
LED
24V
excl.
incl..
IP20
BASIC LED STRIPE 18,1W/M ROLL 5M
RGB W
PROFILES, LED CONVERTER & CONTROLS FOR LED STRIPES (LOOK AT PAGE 30-43)
21
Project: Kreisel Electric, Austria
Planing: Ben Elmecker
Photo: Martin Pröll
Product: BASIC LED STRIPE RGB-W
Project: Andels Hotel, Lodz, Polen
Planing: OP Archtitects
Product: BASIC LED STRIPE RGB-W
Project: Hotel Matschner, Ramsau, Austria
Photo: Tischlerei Kotrasch
Product: BASIC LED STRIPE RGB-W
