Runde LED Pendelleuchte aus Aluminiumprofil ·
Oberfläche pulverbeschichtet · Opale Abdeckung ·
Schaltbar oder DALI dimmbar
Round LED pendant from aluminium profile · surface
powder-coated · opal cover · switchable or DALI
dimmable
Sospensione con profilo in alluminio · Superficie
verniciata a polvere · Diffusore opale · On/off o
dimmerabile DALI
Suspension en profilé d‘aluminium · Surface thermo-
laquée · Diffuseur opale · On/off ou dimmable DALI
Runde LED Pendelleuchte aus Aluminiumprofil ·
Oberfläche pulverbeschichtet · Opale Abdeckung ·
Schaltbar oder DALI dimmbar
Round LED pendant from aluminium profile · surface
powder-coated · opal cover · switchable or DALI
dimmable
Sospensione con profilo in alluminio · Superficie
verniciata a polvere · Diffusore opale · On/off o
dimmerabile DALI
Suspension en profilé d‘aluminium · Surface thermo-
laquée · Diffuseur opale · On/off ou dimmable DALI

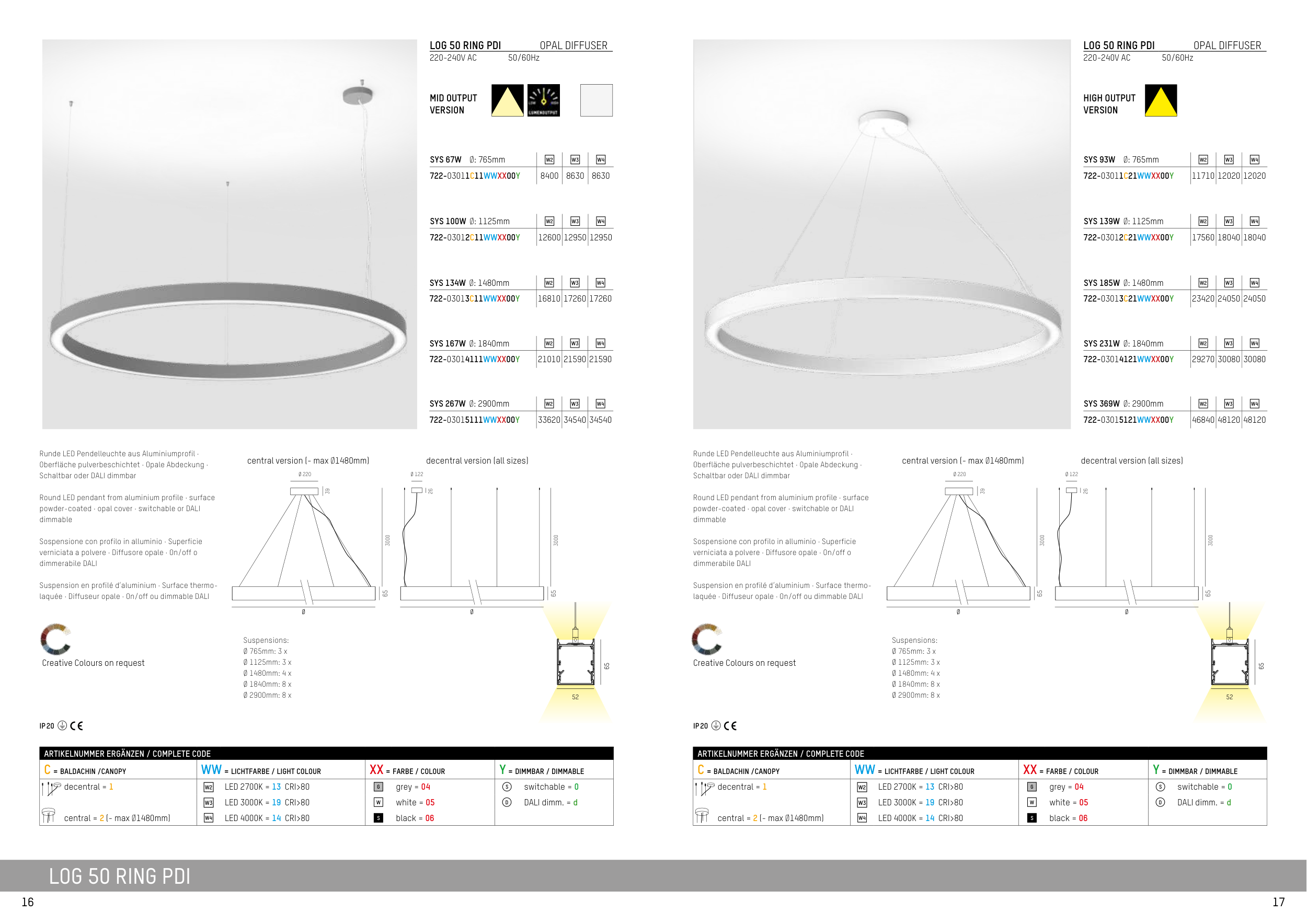

LOG 50 RING PDI
SYS 67W
Ø: 765mm
722-03011C11WWXX00Y
8400
8630
8630
SYS 100W Ø: 1125mm
722-03012C11WWXX00Y
12600 12950 12950
SYS 134W Ø: 1480mm
722-03013C11WWXX00Y
16810 17260 17260
SYS 167W Ø: 1840mm
722-03014111WWXX00Y
21010 21590 21590
SYS 267W Ø: 2900mm
722-03015111WWXX00Y
33620 34540 34540
LOG 50 RING PDI OPAL DIFFUSER
220-240V AC
50/60Hz
MID OUTPUT
VERSION
SYS 93W
Ø: 765mm
722-03011C21WWXX00Y
11710 12020 12020
SYS 185W Ø: 1480mm
722-03013C21WWXX00Y
23420 24050 24050
SYS 231W Ø: 1840mm
722-03014121WWXX00Y
29270 30080 30080
SYS 369W Ø: 2900mm
722-03015121WWXX00Y
46840 48120 48120
SYS 139W Ø: 1125mm
722-03012C21WWXX00Y
17560 18040 18040
LOG 50 RING PDI OPAL DIFFUSER
220-240V AC
50/60Hz
HIGH OUTPUT
VERSION
IP 20
IP 20
ARTIKELNUMMER ERGÄNZEN / COMPLETE CODE
C = BALDACHIN /CANOPY
WW = LICHTFARBE / LIGHT COLOUR
XX = FARBE / COLOUR
Y = DIMMBAR / DIMMABLE
decentral = 1
LED 2700K = 13 CRI>80
G
grey = 04
S
switchable = 0
LED 3000K = 19 CRI>80
W
white = 05
D
DALI dimm. = d
central = 2 (- max Ø1480mm)
LED 4000K = 14 CRI>80
S
black = 06
ARTIKELNUMMER ERGÄNZEN / COMPLETE CODE
C = BALDACHIN /CANOPY
WW = LICHTFARBE / LIGHT COLOUR
XX = FARBE / COLOUR
Y = DIMMBAR / DIMMABLE
decentral = 1
LED 2700K = 13 CRI>80
G
grey = 04
S
switchable = 0
LED 3000K = 19 CRI>80
W
white = 05
D
DALI dimm. = d
central = 2 (- max Ø1480mm)
LED 4000K = 14 CRI>80
S
black = 06
65
65
65
65
Ø
Ø
Ø
Ø
Ø 220
Ø 220
Ø 122
Ø 122
39
39
26
26
3000
3000
3000
3000
65
65
52
52
Suspensions:
Ø 765mm: 3 x
Ø 1125mm: 3 x
Ø 1480mm: 4 x
Ø 1840mm: 8 x
Ø 2900mm: 8 x
Suspensions:
Ø 765mm: 3 x
Ø 1125mm: 3 x
Ø 1480mm: 4 x
Ø 1840mm: 8 x
Ø 2900mm: 8 x
central version (- max Ø1480mm)
central version (- max Ø1480mm)
decentral version (all sizes)
decentral version (all sizes)
Creative Colours on request
Creative Colours on request
