Runde LED Pendelleuchte aus Aluminiumprofil ·
Oberfläche pulverbeschichtet · Opale Abdeckung ·
Schaltbar oder DALI dimmbar
Round LED pendant from aluminium profile · surface
powder-coated · opal cover · switchable or DALI
dimmable
Sospensione con profilo in alluminio · Superficie
verniciata a polvere · Diffusore opale · On/off o
dimmerabile DALI
Suspension en profilé d‘aluminium · Surface thermo-
laquée · Diffuseur opale · On/off ou dimmable DALI
Runde LED Pendelleuchte aus Aluminiumprofil ·
Oberfläche pulverbeschichtet · Opale Abdeckung ·
Schaltbar oder DALI dimmbar
Round LED pendant from aluminium profile · surface
powder-coated · opal cover · switchable or DALI
dimmable
Sospensione con profilo in alluminio · Superficie
verniciata a polvere · Diffusore opale · On/off o
dimmerabile DALI
Suspension en profilé d‘aluminium · Surface thermo-
laquée · Diffuseur opale · On/off ou dimmable DALI
IP 20
IP 20
ARTIKELNUMMER ERGÄNZEN / COMPLETE CODE
C = BALDACHIN /CANOPY
WW = LICHTFARBE / LIGHT COLOUR
XX = FARBE / COLOUR
Y = DIMMBAR / DIMMABLE
decentral = 1
LED 2700K = 13 CRI>80
G
grey = 04
S
switchable = 0
LED 3000K = 19 CRI>80
W
white = 05
D
DALI dimm. = d
central = 2 (- max Ø1480mm)
LED 4000K = 14 CRI>80
S
black = 06
ARTIKELNUMMER ERGÄNZEN / COMPLETE CODE
C = BALDACHIN /CANOPY
WW = LICHTFARBE / LIGHT COLOUR
XX = FARBE / COLOUR
Y = DIMMBAR / DIMMABLE
decentral = 1
LED 2700K = 13 CRI>80
G
grey = 04
S
switchable = 0
LED 3000K = 19 CRI>80
W
white = 05
D
DALI dimm. = d
central = 2 (- max Ø1480mm)
LED 4000K = 14 CRI>80
S
black = 06

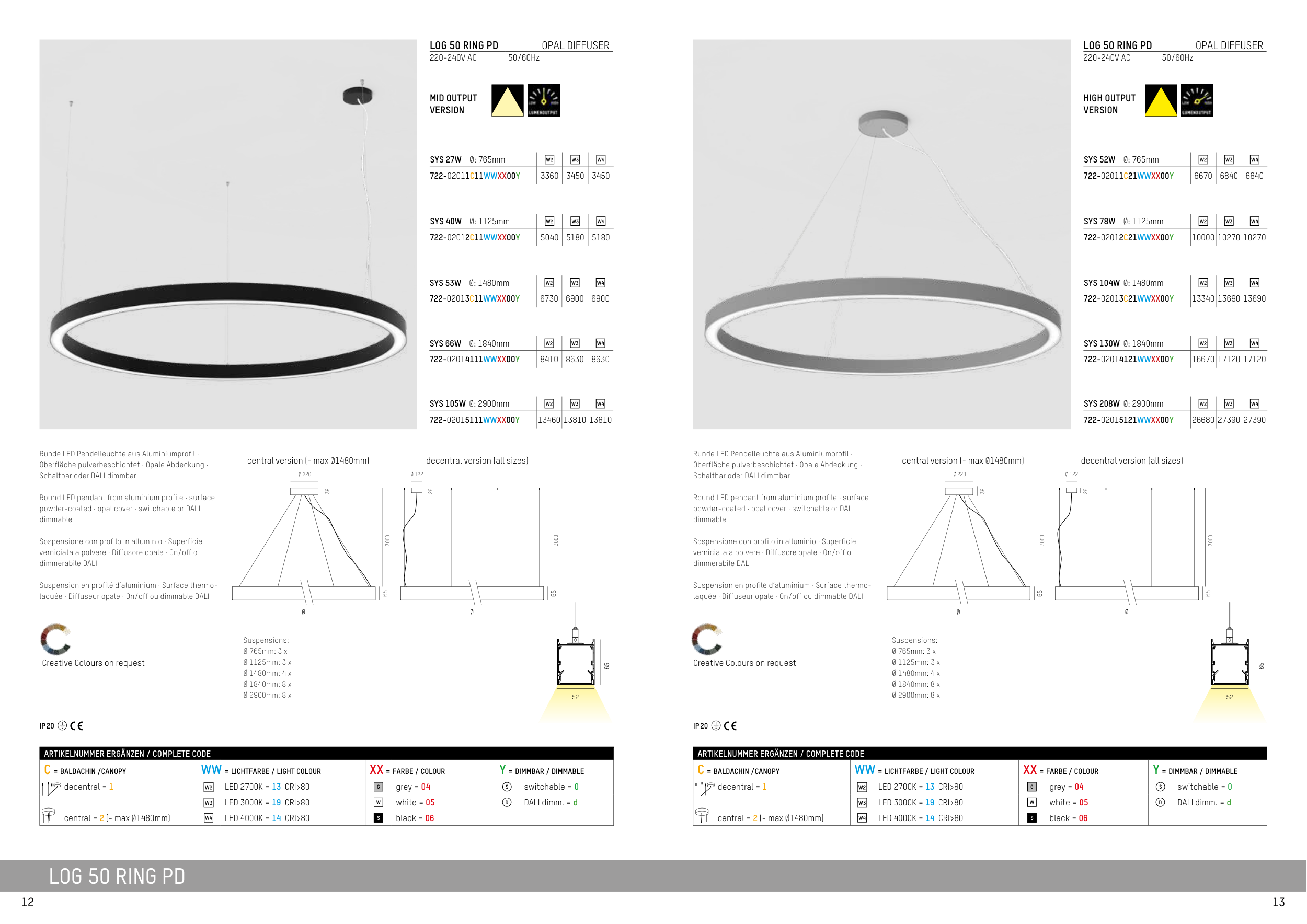

LOG 50 RING PD
65
65
65
65
Ø
Ø
Ø
Ø
SYS 27W
Ø: 765mm
722-02011C11WWXX00Y
3360
3450
3450
SYS 40W
Ø: 1125mm
722-02012C11WWXX00Y
5040
5180
5180
SYS 53W
Ø: 1480mm
722-02013C11WWXX00Y
6730
6900
6900
SYS 66W
Ø: 1840mm
722-02014111WWXX00Y
8410
8630
8630
SYS 105W Ø: 2900mm
722-02015111WWXX00Y
13460 13810 13810
LOG 50 RING PD OPAL DIFFUSER
220-240V AC
50/60Hz
MID OUTPUT
VERSION
SYS 52W
Ø: 765mm
722-02011C21WWXX00Y
6670
6840
6840
SYS 104W Ø: 1480mm
722-02013C21WWXX00Y
13340 13690 13690
SYS 130W Ø: 1840mm
722-02014121WWXX00Y
16670 17120 17120
SYS 208W Ø: 2900mm
722-02015121WWXX00Y
26680 27390 27390
SYS 78W
Ø: 1125mm
722-02012C21WWXX00Y
10000 10270 10270
LOG 50 RING PD OPAL DIFFUSER
220-240V AC
50/60Hz
HIGH OUTPUT
VERSION
Ø 220
Ø 220
Ø 122
Ø 122
39
39
26
26
3000
3000
3000
3000
65
52
Suspensions:
Ø 765mm: 3 x
Ø 1125mm: 3 x
Ø 1480mm: 4 x
Ø 1840mm: 8 x
Ø 2900mm: 8 x
Suspensions:
Ø 765mm: 3 x
Ø 1125mm: 3 x
Ø 1480mm: 4 x
Ø 1840mm: 8 x
Ø 2900mm: 8 x
central version (- max Ø1480mm)
central version (- max Ø1480mm)
decentral version (all sizes)
decentral version (all sizes)
65
52
Creative Colours on request
Creative Colours on request
