09
08
SYS 27W
Ø: 765mm
722-01011011WWXX00Y
3360
3450
3450
SYS 52W
Ø: 765mm
722-01011021WWXX00Y
6670
6840
6840
SYS 40W
Ø: 1125mm
722-01012011WWXX00Y
5040
5180
5180
SYS 53W
Ø: 1480mm
722-01013011WWXX00Y
6730
6900
6900
SYS 66W
Ø: 1840mm
722-01014011WWXX00Y
8410
8630
8630
SYS 105W Ø: 2900mm
722-01015011WWXX00Y
13460 13810 13810
SYS 104W Ø: 1480mm
722-01013021WWXX00Y
13340 13690 13690
SYS 130W Ø: 1840mm
722-01014021WWXX00Y
16670 17120 17120
SYS 208W Ø: 2900mm
722-01015021WWXX00Y
26680 27390 27390
SYS 78W
Ø: 1125mm
722-01012021WWXX00Y
10000 10270 10270

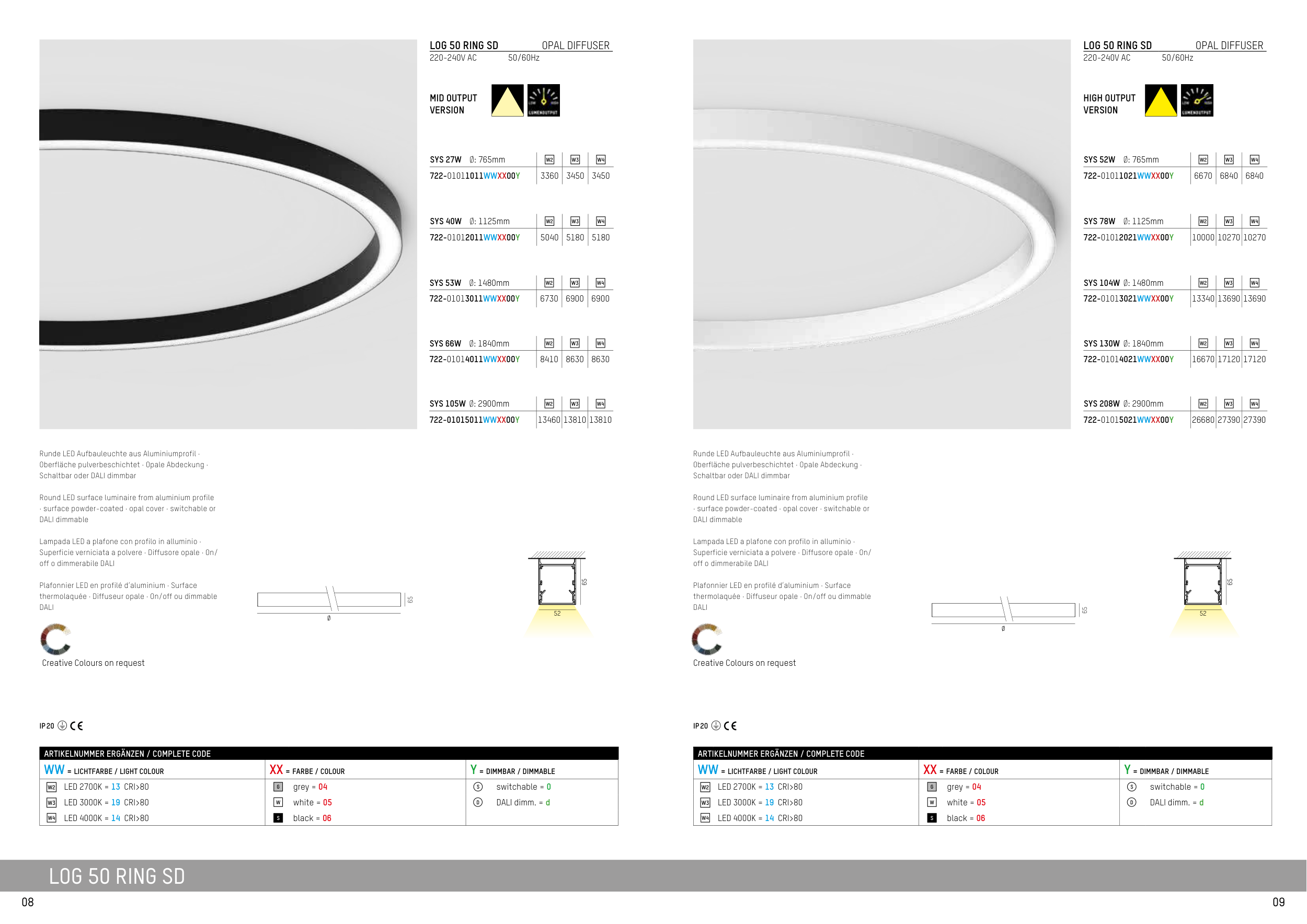

LOG 50 RING SD OPAL DIFFUSER
220-240V AC
50/60Hz
MID OUTPUT
VERSION
LOG 50 RING SD OPAL DIFFUSER
220-240V AC
50/60Hz
HIGH OUTPUT
VERSION
Runde LED Aufbauleuchte aus Aluminiumprofil ·
Oberfläche pulverbeschichtet · Opale Abdeckung ·
Schaltbar oder DALI dimmbar
Round LED surface luminaire from aluminium profile
· surface powder-coated · opal cover · switchable or
DALI dimmable
Lampada LED a plafone con profilo in alluminio ·
Superficie verniciata a polvere · Diffusore opale · On/
off o dimmerabile DALI
Plafonnier LED en profilé d‘aluminium · Surface
thermolaquée · Diffuseur opale · On/off ou dimmable
DALI
Runde LED Aufbauleuchte aus Aluminiumprofil ·
Oberfläche pulverbeschichtet · Opale Abdeckung ·
Schaltbar oder DALI dimmbar
Round LED surface luminaire from aluminium profile
· surface powder-coated · opal cover · switchable or
DALI dimmable
Lampada LED a plafone con profilo in alluminio ·
Superficie verniciata a polvere · Diffusore opale · On/
off o dimmerabile DALI
Plafonnier LED en profilé d‘aluminium · Surface
thermolaquée · Diffuseur opale · On/off ou dimmable
DALI
IP 20
IP 20
ARTIKELNUMMER ERGÄNZEN / COMPLETE CODE
WW = LICHTFARBE / LIGHT COLOUR
XX = FARBE / COLOUR
Y = DIMMBAR / DIMMABLE
LED 2700K = 13 CRI>80
G
grey = 04
S
switchable = 0
LED 3000K = 19 CRI>80
W
white = 05
D
DALI dimm. = d
LED 4000K = 14 CRI>80
S
black = 06
ARTIKELNUMMER ERGÄNZEN / COMPLETE CODE
WW = LICHTFARBE / LIGHT COLOUR
XX = FARBE / COLOUR
Y = DIMMBAR / DIMMABLE
LED 2700K = 13 CRI>80
G
grey = 04
S
switchable = 0
LED 3000K = 19 CRI>80
W
white = 05
D
DALI dimm. = d
LED 4000K = 14 CRI>80
S
black = 06
LOG 50 RING SD
65
65
Ø
Ø
52
52
65
65
Creative Colours on request
Creative Colours on request
