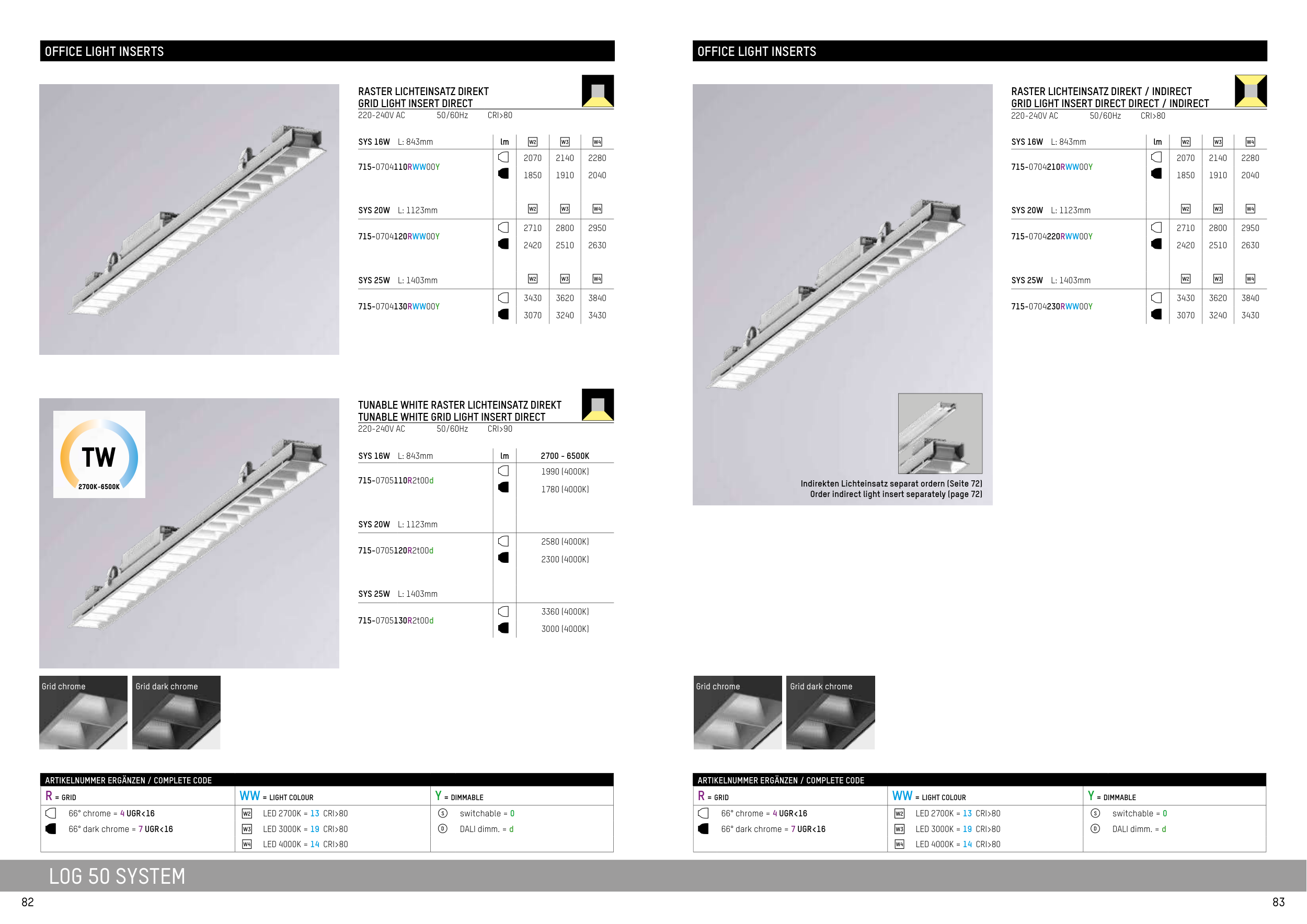

LOG 50 SYSTEM
OFFICE LIGHT INSERTS
OFFICE LIGHT INSERTS
RASTER LICHTEINSATZ DIREKT
GRID LIGHT INSERT DIRECT
220-240V AC
50/60Hz
CRI>80
TUNABLE WHITE RASTER LICHTEINSATZ DIREKT
TUNABLE WHITE GRID LIGHT INSERT DIRECT
220-240V AC
50/60Hz
CRI>90
RASTER LICHTEINSATZ DIREKT / INDIRECT
GRID LIGHT INSERT DIRECT DIRECT / INDIRECT
220-240V AC
50/60Hz
CRI>80
SYS 16W
L: 843mm
lm
715-0704110RWW00Y
2070
2140
2280
1850
1910
2040
SYS 20W
L: 1123mm
715-0704120RWW00Y
2710
2800
2950
2420
2510
2630
SYS 25W
L: 1403mm
715-0704130RWW00Y
3430
3620
3840
3070
3240
3430
SYS 16W
L: 843mm
lm
2700 - 6500K
715-0705110R2t00d
1990 (4000K)
1780 (4000K)
SYS 20W
L: 1123mm
715-0705120R2t00d
2580 (4000K)
2300 (4000K)
SYS 25W
L: 1403mm
715-0705130R2t00d
3360 (4000K)
3000 (4000K)
SYS 16W
L: 843mm
lm
715-0704210RWW00Y
2070
2140
2280
1850
1910
2040
SYS 20W
L: 1123mm
715-0704220RWW00Y
2710
2800
2950
2420
2510
2630
SYS 25W
L: 1403mm
715-0704230RWW00Y
3430
3620
3840
3070
3240
3430
Indirekten Lichteinsatz separat ordern (Seite 72)
Order indirect light insert separately (page 72)
ARTIKELNUMMER ERGÄNZEN / COMPLETE CODE
R = GRID
WW = LIGHT COLOUR
Y = DIMMABLE
66° chrome = 4 UGR<16
LED 2700K = 13 CRI>80
S
switchable = 0
66° dark chrome = 7 UGR<16
LED 3000K = 19 CRI>80
D
DALI dimm. = d
LED 4000K = 14 CRI>80
ARTIKELNUMMER ERGÄNZEN / COMPLETE CODE
R = GRID
WW = LIGHT COLOUR
Y = DIMMABLE
66° chrome = 4 UGR<16
LED 2700K = 13 CRI>80
S
switchable = 0
66° dark chrome = 7 UGR<16
LED 3000K = 19 CRI>80
D
DALI dimm. = d
LED 4000K = 14 CRI>80
Grid chrome
Grid dark chrome
Grid chrome
Grid dark chrome
TW
2700k-6500K
