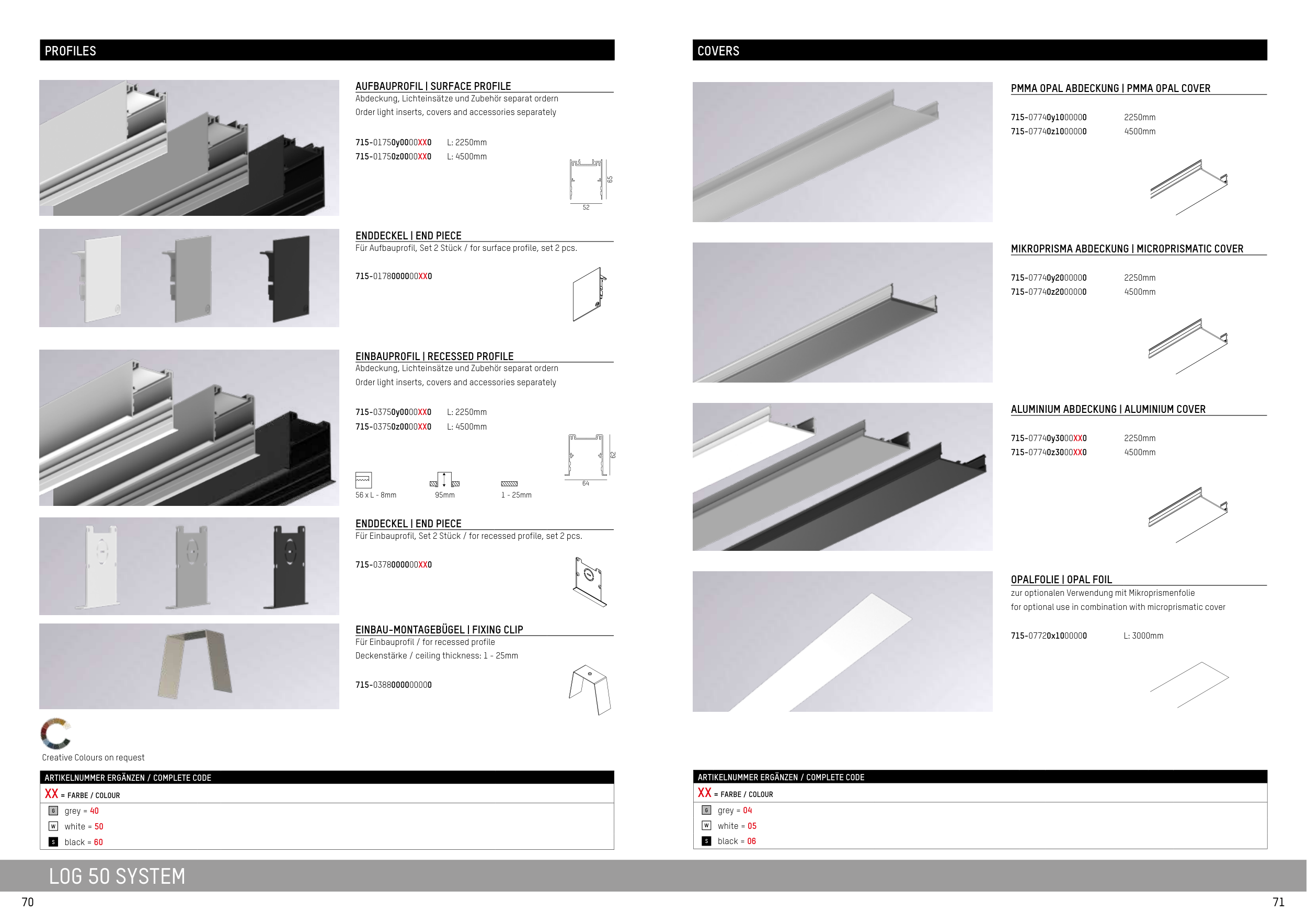

LOG 50 SYSTEM
AUFBAUPROFIL | SURFACE PROFILE
Abdeckung, Lichteinsätze und Zubehör separat ordern
Order light inserts, covers and accessories separately
715-01750y0000XX0
L: 2250mm
715-01750z0000XX0
L: 4500mm
EINBAUPROFIL | RECESSED PROFILE
Abdeckung, Lichteinsätze und Zubehör separat ordern
Order light inserts, covers and accessories separately
715-03750y0000XX0
L: 2250mm
715-03750z0000XX0
L: 4500mm
ENDDECKEL | END PIECE
Für Aufbauprofil, Set 2 Stück / for surface profile, set 2 pcs.
715-0178000000XX0
ENDDECKEL | END PIECE
Für Einbauprofil, Set 2 Stück / for recessed profile, set 2 pcs.
715-0378000000XX0
EINBAU-MONTAGEBÜGEL | FIXING CLIP
Für Einbauprofil / for recessed profile
Deckenstärke / ceiling thickness: 1 - 25mm
715-0388000000000
ARTIKELNUMMER ERGÄNZEN / COMPLETE CODE
XX = FARBE / COLOUR
G
grey = 40
W
white = 50
S
black = 60
PROFILES
COVERS
PMMA OPAL ABDECKUNG | PMMA OPAL COVER
715-07740y1000000
2250mm
715-07740z1000000
4500mm
ALUMINIUM ABDECKUNG | ALUMINIUM COVER
715-07740y3000XX0
2250mm
715-07740z3000XX0
4500mm
MIKROPRISMA ABDECKUNG | MICROPRISMATIC COVER
715-07740y2000000
2250mm
715-07740z2000000
4500mm
OPALFOLIE | OPAL FOIL
zur optionalen Verwendung mit Mikroprismenfolie
for optional use in combination with microprismatic cover
715-07720x1000000
L: 3000mm
ARTIKELNUMMER ERGÄNZEN / COMPLETE CODE
XX = FARBE / COLOUR
G
grey = 04
W
white = 05
S
black = 06
52
65
56 x L - 8mm
1 - 25mm
95mm
64
62
Creative Colours on request
