67
66
SYS 7W
Ø: 765mm
722-0201a011WWXX00Y
840
860
860
SYS 13W
Ø: 765mm
722-02016011WWXX00Y
1680
1720
1720
SYS 26W
Ø: 765mm
722-02016021WWXX00Y
3330
3420
3420
SYS 13W
Ø: 765mm
722-0201a021WWXX00Y
1670
1710
1710
SYS 10W
Ø: 1125mm
722-0201b011WWXX00Y
1260
1290
1290
SYS 19W
Ø: 1125mm
722-0201b021WWXX00Y
2500
2570
2570
SYS 20W
Ø: 1125mm
722-02017011WWXX00Y
2520
2590
2590
SYS 39W
Ø: 1125mm
722-02017021WWXX00Y
5000
5130
5130
SYS 13W
Ø: 1480mm
722-0201c011WWXX00Y
1680
1720
1720
SYS 26W
Ø: 1480mm
722-0201c021WWXX00Y
3330
3420
3420
SYS 26W
Ø: 1480mm
722-02018011WWXX00Y
3360
3450
3450
SYS 52W
Ø: 1480mm
722-02018021WWXX00Y
6670
6840
6840
SYS 16W
Ø: 1840mm
722-0201d011WWXX00Y
2100
2160
2160
SYS 32W
Ø: 1840mm
722-0201d021WWXX00Y
4170
4280
4280
SYS 33W
Ø: 1840mm
722-02019011WWXX00Y
4200
4310
4310
SYS 65W
Ø: 1840mm
722-02019021WWXX00Y
8330
8560
8560
LOG 50 RING SYSTEM PD OPAL DIFFUSER
220-240V AC
50/60Hz
MID OUTPUT
VERSION
90° VERSION
LOG 50 RING SYSTEM PD OPAL DIFFUSER
220-240V AC
50/60Hz
HIGH OUTPUT
VERSION
90° VERSION
LOG 50 RING SYSTEM PD OPAL DIFFUSER
220-240V AC
50/60Hz
MID OUTPUT
VERSION
80° VERSION
LOG 50 RING SYSTEM PD OPAL DIFFUSER
220-240V AC
50/60Hz
HIGH OUTPUT
VERSION
80° VERSION
Runde LED System-Pendelleuchte aus Aluminiumpro-
fil · Oberfläche pulverbeschichtet · Opale Abdeckung ·
Schaltbar oder DALI dimmbar
Round LED system pendant luminaire from aluminium
profile · surface powder-coated · opal cover · swit-
chable or DALI dimmable
Sospensione LED a sistema plafone con profilo in
alluminio · Superficie verniciata a polvere · Diffusore
opale · On/off o dimmerabile DALI
Suspension système LED en profilé d‘aluminium ·
Surface thermolaquée · Diffuseur opale · On/off ou
dimmable DALI
Runde LED System-Pendelleuchte aus Aluminiumpro-
fil · Oberfläche pulverbeschichtet · Opale Abdeckung ·
Schaltbar oder DALI dimmbar
Round LED system pendant luminaire from aluminium
profile · surface powder-coated · opal cover · swit-
chable or DALI dimmable
Sospensione LED a sistema plafone con profilo in
alluminio · Superficie verniciata a polvere · Diffusore
opale · On/off o dimmerabile DALI
Suspension système LED en profilé d‘aluminium ·
Surface thermolaquée · Diffuseur opale · On/off ou
dimmable DALI
IP 20
IP 20
ARTIKELNUMMER ERGÄNZEN / COMPLETE CODE
WW = LICHTFARBE / LIGHT COLOUR
XX = FARBE / COLOUR
Y = DIMMBAR / DIMMABLE
LED 2700K = 13 CRI>80
G
grey = 04
S
switchable = 0
LED 3000K = 19 CRI>80
W
white = 05
D
DALI dimm. = d
LED 4000K = 14 CRI>80
S
black = 06
ARTIKELNUMMER ERGÄNZEN / COMPLETE CODE
WW = LICHTFARBE / LIGHT COLOUR
XX = FARBE / COLOUR
Y = DIMMBAR / DIMMABLE
LED 2700K = 13 CRI>80
G
grey = 04
S
switchable = 0
LED 3000K = 19 CRI>80
W
white = 05
D
DALI dimm. = d
LED 4000K = 14 CRI>80
S
black = 06

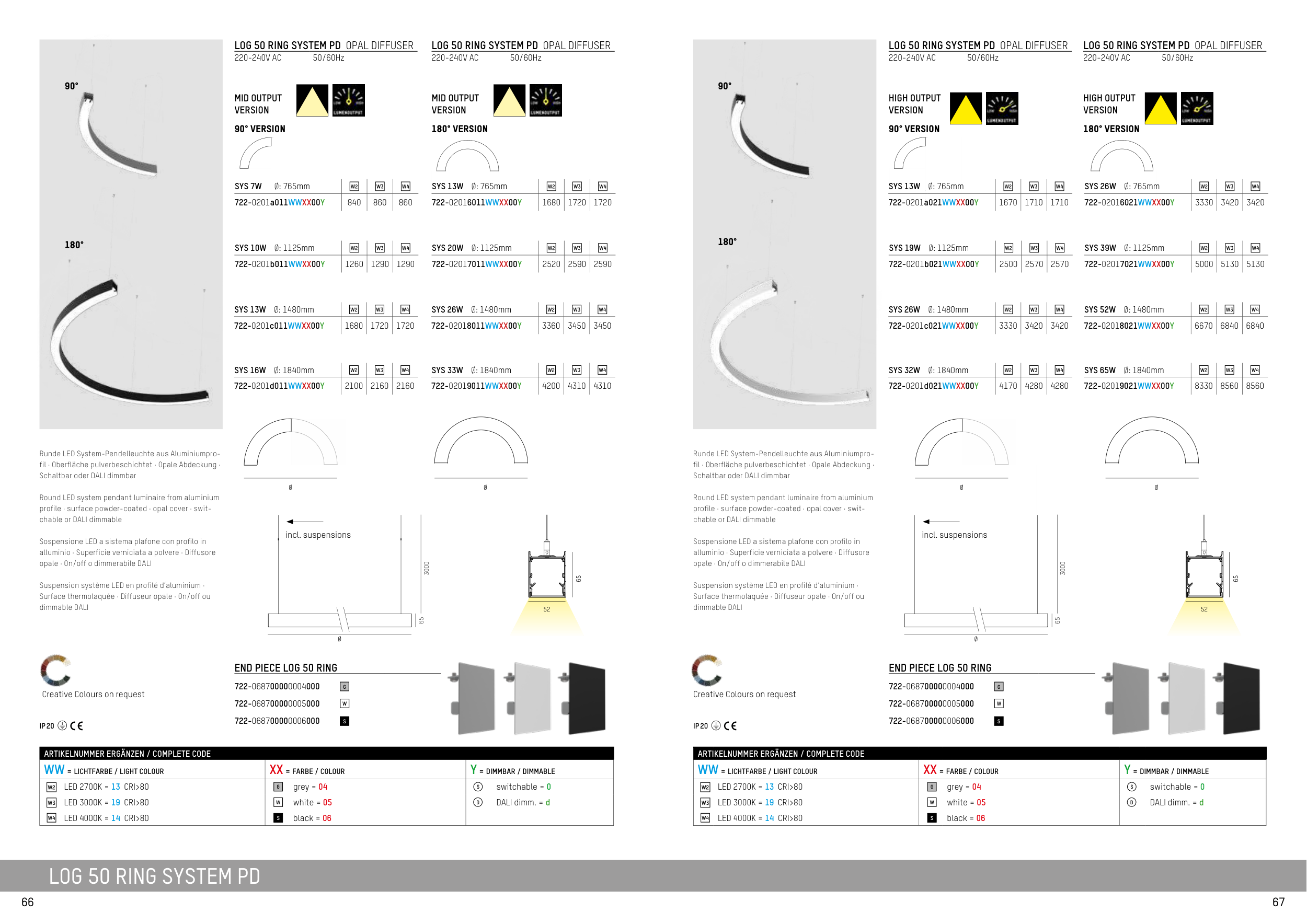

LOG 50 RING SYSTEM PD
65
3000
3000
65
Ø
Ø
Ø
Ø
Ø
Ø
90°
90°
80°
80°
incl. suspensions
incl. suspensions
65
52
65
52
END PIECE LOG 50 RING
722-068700000004000
722-068700000005000
722-068700000006000
G
W
S
END PIECE LOG 50 RING
722-068700000004000
722-068700000005000
722-068700000006000
G
W
S
Creative Colours on request
Creative Colours on request
