LED Pendelleuchte aus Aluminiumprofil · Oberfläche
pulverbeschichtet · Spotlichteinsätze mit verschie-
denen Reflektoren · Schaltbar oder DALI dimmbar
LED pendant from aluminium profile · surface powder-
coated · spotlight inserts with different reflectors ·
switchable or DALI dimmable
Sospensione con profilo in alluminio · Superficie
verniciata a polvere · Inserti spot con diversi riflettori
disponibili · On/off o dimmerabile DALI
Suspension en profilé d‘aluminium · Surface thermo-
laquée · Inserts de spots avec différents réflecteurs ·
On/off ou dimmable DALI

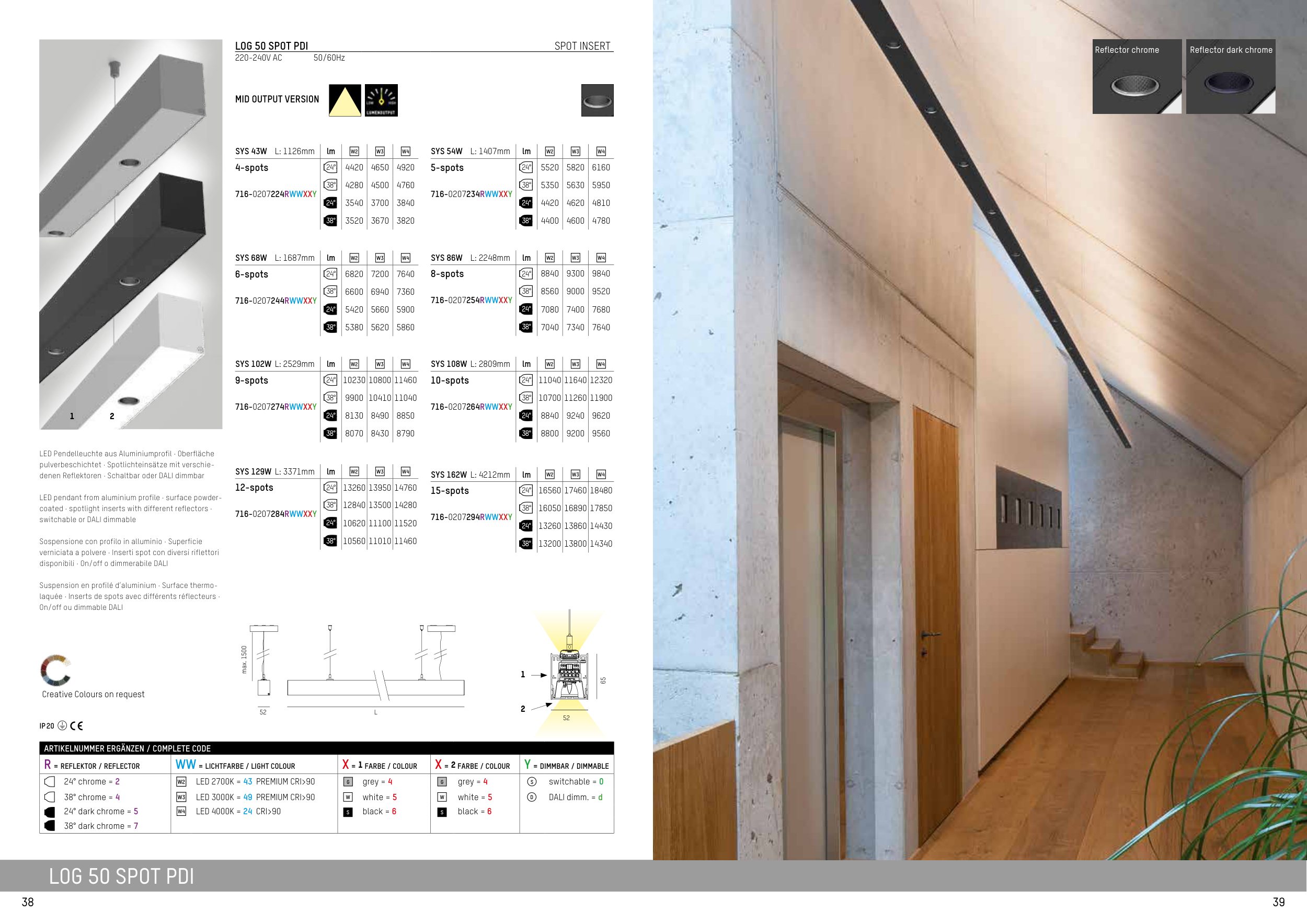

LOG 50 SPOT PDI
IP 20
LOG 50 SPOT PDI
SPOT INSERT
220-240V AC
50/60Hz
MID OUTPUT VERSION
L
max. 1500
52
ARTIKELNUMMER ERGÄNZEN / COMPLETE CODE
R = REFLEKTOR / REFLECTOR
WW = LICHTFARBE / LIGHT COLOUR
X = FARBE / COLOUR
X = 2 FARBE / COLOUR
Y = DIMMBAR / DIMMABLE
24° chrome = 2
LED 2700K = 43 PREMIUM CRI>90
G
grey = 4
G
grey = 4
S
switchable = 0
38° chrome = 4
LED 3000K = 49 PREMIUM CRI>90
W
white = 5
W
white = 5
D
DALI dimm. = d
24° dark chrome = 5
LED 4000K = 24 CRI>90
S
black = 6
S
black = 6
38° dark chrome = 7
65
SYS 54W
L: 1407mm
lm
5-spots
24°
5520
5820
6160
716-0207234RWWXXY
38°
5350
5630
5950
24°
4420
4620
4810
38°
4400
4600
4780
SYS 86W
L: 2248mm
lm
8-spots
24°
8840
9300
9840
716-0207254RWWXXY
38°
8560
9000
9520
24°
7080
7400
7680
38°
7040
7340
7640
SYS 108W L: 2809mm
lm
10-spots
24° 11040 11640 12320
716-0207264RWWXXY
38° 10700 11260 11900
24°
8840
9240
9620
38°
8800
9200
9560
SYS 162W L: 4212mm
lm
15-spots
24° 16560 17460 18480
716-0207294RWWXXY
38° 16050 16890 17850
24°
13260 13860 14430
38°
13200 13800 14340
SYS 43W
L: 1126mm
lm
4-spots
24°
4420
4650
4920
716-0207224RWWXXY
38°
4280
4500
4760
24°
3540
3700
3840
38°
3520
3670
3820
SYS 68W
L: 1687mm
lm
6-spots
24°
6820
7200
7640
716-0207244RWWXXY
38°
6600
6940
7360
24°
5420
5660
5900
38°
5380
5620
5860
SYS 102W L: 2529mm
lm
9-spots
24° 10230 10800 11460
716-0207274RWWXXY
38°
9900 10410 11040
24°
8130
8490
8850
38°
8070
8430
8790
SYS 129W L: 3371mm
lm
12-spots
24° 13260 13950 14760
716-0207284RWWXXY
38° 12840 13500 14280
24°
10620 11100 11520
38°
10560 11010 11460
2
2
52
Creative Colours on request
Reflector chrome
Reflector dark chrome
