31
30
SYS 30W
L: 2529mm
lm
716-020117C0WWXXY
3760
3860
3860
3580
3670
3670
SYS 60W
L: 2529mm
lm
716-020137C0WWXXY
7500
7700
7700
7140
7320
7320
SYS 42W
L: 3371mm
lm
716-020118C0WWXXY
5040
5170
5170
4800
4910
4910
SYS 78W
L: 3371mm
lm
716-020138C0WWXXY
9990 10260 10260
9500
9760
9760
SYS 28W
L: 2248mm
lm
716-020115C0WWXXY
3360
3440
3440
3200
3280
3280
SYS 52W
L: 2248mm
lm
716-020135C0WWXXY
6660
6840
6840
6330
6510
6510
SYS 34W
L: 2809mm
lm
716-020116C0WWXXY
4200
4310
4310
3990
4100
4100
SYS 66W
L: 2809mm
lm
716-020136C0WWXXY
8330
8560
8560
7920
8140
8140
SYS 51W
L: 4212mm
lm
716-020119C0WWXXY
6300
6470
6470
5990
6150
6150
SYS 99W
L: 4212mm
lm
716-020139C0WWXXY
12500 12840 12840
11890 12210 12210

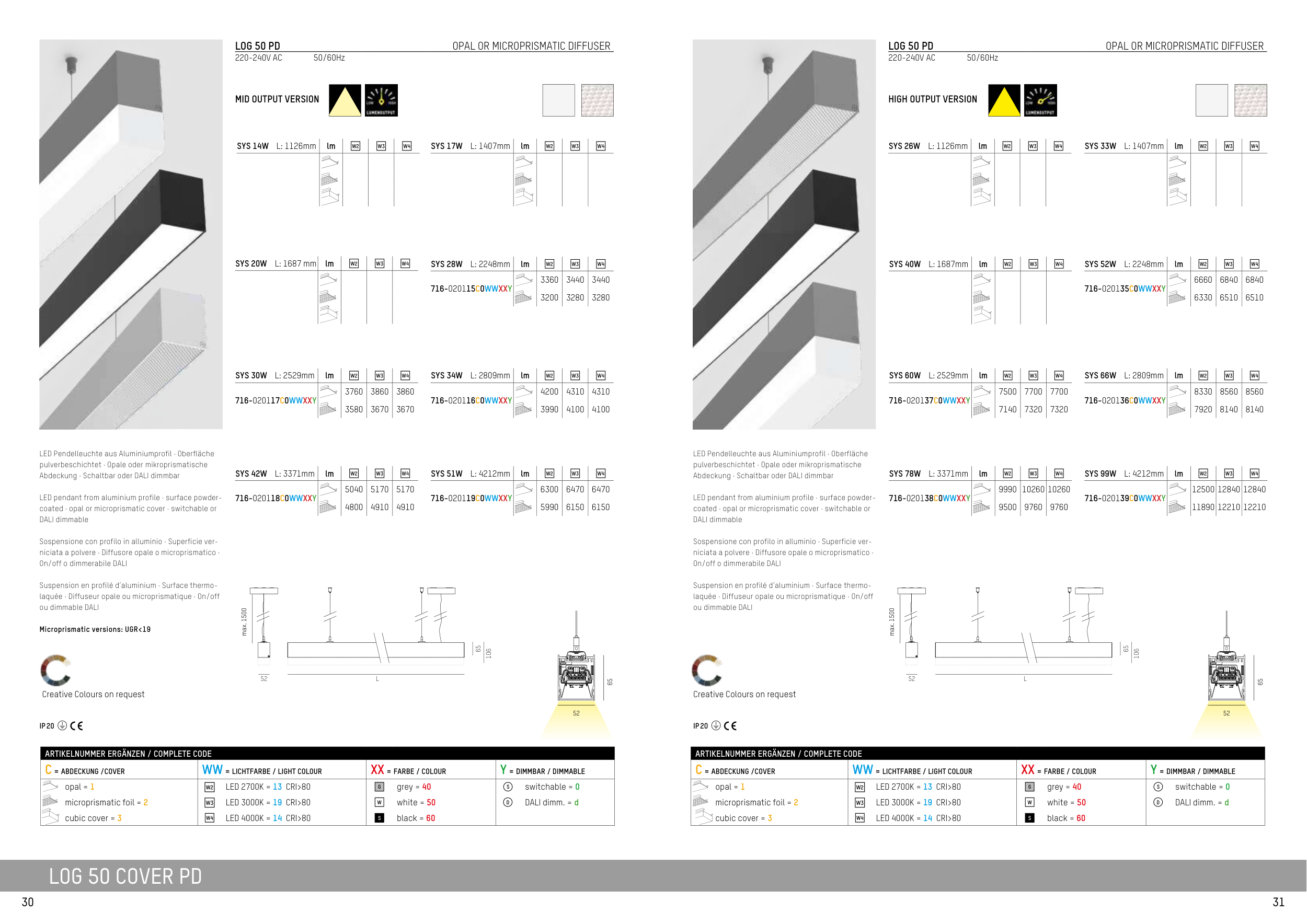

LOG 50 PD
OPAL OR MICROPRISMATIC DIFFUSER
220-240V AC
50/60Hz
MID OUTPUT VERSION
LOG 50 PD
OPAL OR MICROPRISMATIC DIFFUSER
220-240V AC
50/60Hz
HIGH OUTPUT VERSION
LED Pendelleuchte aus Aluminiumprofil · Oberfläche
pulverbeschichtet · Opale oder mikroprismatische
Abdeckung · Schaltbar oder DALI dimmbar
LED pendant from aluminium profile · surface powder-
coated · opal or microprismatic cover · switchable or
DALI dimmable
Sospensione con profilo in alluminio · Superficie ver-
niciata a polvere · Diffusore opale o microprismatico ·
On/off o dimmerabile DALI
Suspension en profilé d‘aluminium · Surface thermo-
laquée · Diffuseur opale ou microprismatique · On/off
ou dimmable DALI
Microprismatic versions: UGR<19
LED Pendelleuchte aus Aluminiumprofil · Oberfläche
pulverbeschichtet · Opale oder mikroprismatische
Abdeckung · Schaltbar oder DALI dimmbar
LED pendant from aluminium profile · surface powder-
coated · opal or microprismatic cover · switchable or
DALI dimmable
Sospensione con profilo in alluminio · Superficie ver-
niciata a polvere · Diffusore opale o microprismatico ·
On/off o dimmerabile DALI
Suspension en profilé d‘aluminium · Surface thermo-
laquée · Diffuseur opale ou microprismatique · On/off
ou dimmable DALI
IP 20
IP 20
LOG 50 COVER PD
65
65
52
52
Creative Colours on request
Creative Colours on request
ARTIKELNUMMER ERGÄNZEN / COMPLETE CODE
C = ABDECKUNG /COVER
WW = LICHTFARBE / LIGHT COLOUR
XX = FARBE / COLOUR
Y = DIMMBAR / DIMMABLE
opal = 1
LED 2700K = 13 CRI>80
G
grey = 40
S
switchable = 0
microprismatic foil = 2
LED 3000K = 19 CRI>80
W
white = 50
D
DALI dimm. = d
cubic cover = 3
LED 4000K = 14 CRI>80
S
black = 60
ARTIKELNUMMER ERGÄNZEN / COMPLETE CODE
C = ABDECKUNG /COVER
WW = LICHTFARBE / LIGHT COLOUR
XX = FARBE / COLOUR
Y = DIMMBAR / DIMMABLE
opal = 1
LED 2700K = 13 CRI>80
G
grey = 40
S
switchable = 0
microprismatic foil = 2
LED 3000K = 19 CRI>80
W
white = 50
D
DALI dimm. = d
cubic cover = 3
LED 4000K = 14 CRI>80
S
black = 60
SYS 17W
L: 1407mm
lm
SYS 20W
L: 1687 mm
lm
SYS 14W
L: 1126mm
lm
SYS 33W
L: 1407mm
lm
SYS 40W
L: 1687mm
lm
SYS 26W
L: 1126mm
lm
max. 1500
65
106
52
L
max. 1500
65
106
52
L
