LED Aufbauleuchte aus Aluminiumprofil · Oberfläche
pulverbeschichtet · mit facetiertem Aluminium-
Raster · Schaltbar oder DALI dimmbar
LED surface luminaire from aluminium profile · surface
powder-coated · with facetted aluminium grid ·
switchable or DALI dimmable
Lampada LED a plafone con profilo in alluminio ·
superficie · verniciata a polveri · con griglia in allum-
inio sfaccettato · on off o dimmerabile DALI
Luminaire LED en saillie en profilé d’aluminium ·
revêtement par poudre · avec grille à facettes
en aluminium · on/off ou DALI
UGR<16

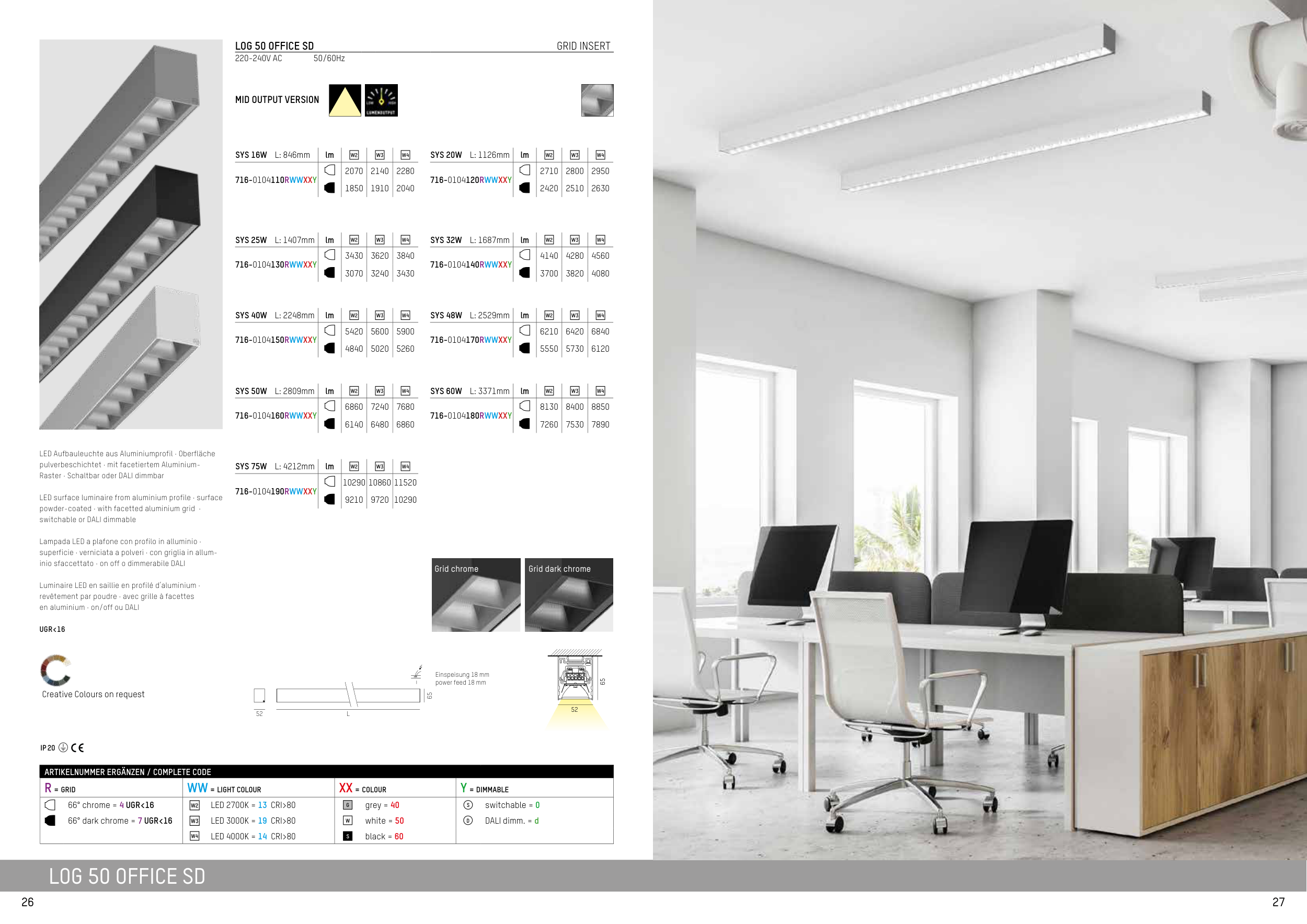

LOG 50 OFFICE SD
GRID INSERT
220-240V AC
50/60Hz
MID OUTPUT VERSION
Einspeisung 18 mm
power feed 18 mm
52
65
L
LOG 50 OFFICE SD
65
52
IP 20
ARTIKELNUMMER ERGÄNZEN / COMPLETE CODE
R = GRID
WW = LIGHT COLOUR
XX = COLOUR
Y = DIMMABLE
66° chrome = 4 UGR<16
LED 2700K = 13 CRI>80
G
grey = 40
S
switchable = 0
66° dark chrome = 7 UGR<16
LED 3000K = 19 CRI>80
W
white = 50
D
DALI dimm. = d
LED 4000K = 14 CRI>80
S
black = 60
Grid chrome
Grid dark chrome
SYS 16W
L: 846mm
lm
716-0104110RWWXXY
2070
2140
2280
1850
1910
2040
SYS 25W
L: 1407mm
lm
716-0104130RWWXXY
3430
3620
3840
3070
3240
3430
SYS 40W
L: 2248mm
lm
716-0104150RWWXXY
5420
5600
5900
4840
5020
5260
SYS 50W
L: 2809mm
lm
716-0104160RWWXXY
6860
7240
7680
6140
6480
6860
SYS 75W
L: 4212mm
lm
716-0104190RWWXXY
10290 10860 11520
9210
9720 10290
SYS 20W
L: 1126mm
lm
716-0104120RWWXXY
2710
2800
2950
2420
2510
2630
SYS 32W
L: 1687mm
lm
716-0104140RWWXXY
4140
4280
4560
3700
3820
4080
SYS 48W
L: 2529mm
lm
716-0104170RWWXXY
6210
6420
6840
5550
5730
6120
SYS 60W
L: 3371mm
lm
716-0104180RWWXXY
8130
8400
8850
7260
7530
7890
Creative Colours on request
