23
22
SYS 28W
L: 2248mm
lm
716-010115C0WWXXY
3360
3440
3440
3200
3280
3280
SYS 52W
L: 2248mm
lm
716-010135C0WWXXY
6660
6840
6840
6330
6510
6510
SYS 34W
L: 2809mm
lm
716-010116C0WWXXY
4200
4310
4310
3990
4100
4100
SYS 66W
L: 2809mm
lm
716-010136C0WWXXY
8330
8560
8560
7920
8140
8140
SYS 51W
L: 4212mm
lm
716-010119C0WWXXY
6300
6470
6470
5990
6150
6150
SYS 99W
L: 4212mm
lm
716-010139C0WWXXY
12500 12840 12840
11890 12210 12210
SYS 30W
L: 2529mm
lm
716-010117C0WWXXY
3760
3860
3860
3580
3670
3670
SYS 60W
L: 2529mm
lm
716-010137C0WWXXY
7500
7700
7700
7140
7320
7320
SYS 42W
L: 3371mm
lm
716-010118C0WWXXY
5040
5170
5170
4800
4910
4910
SYS 78W
L: 3371mm
lm
716-010138C0WWXXY
9990 10260 10260
9500
9760
9760

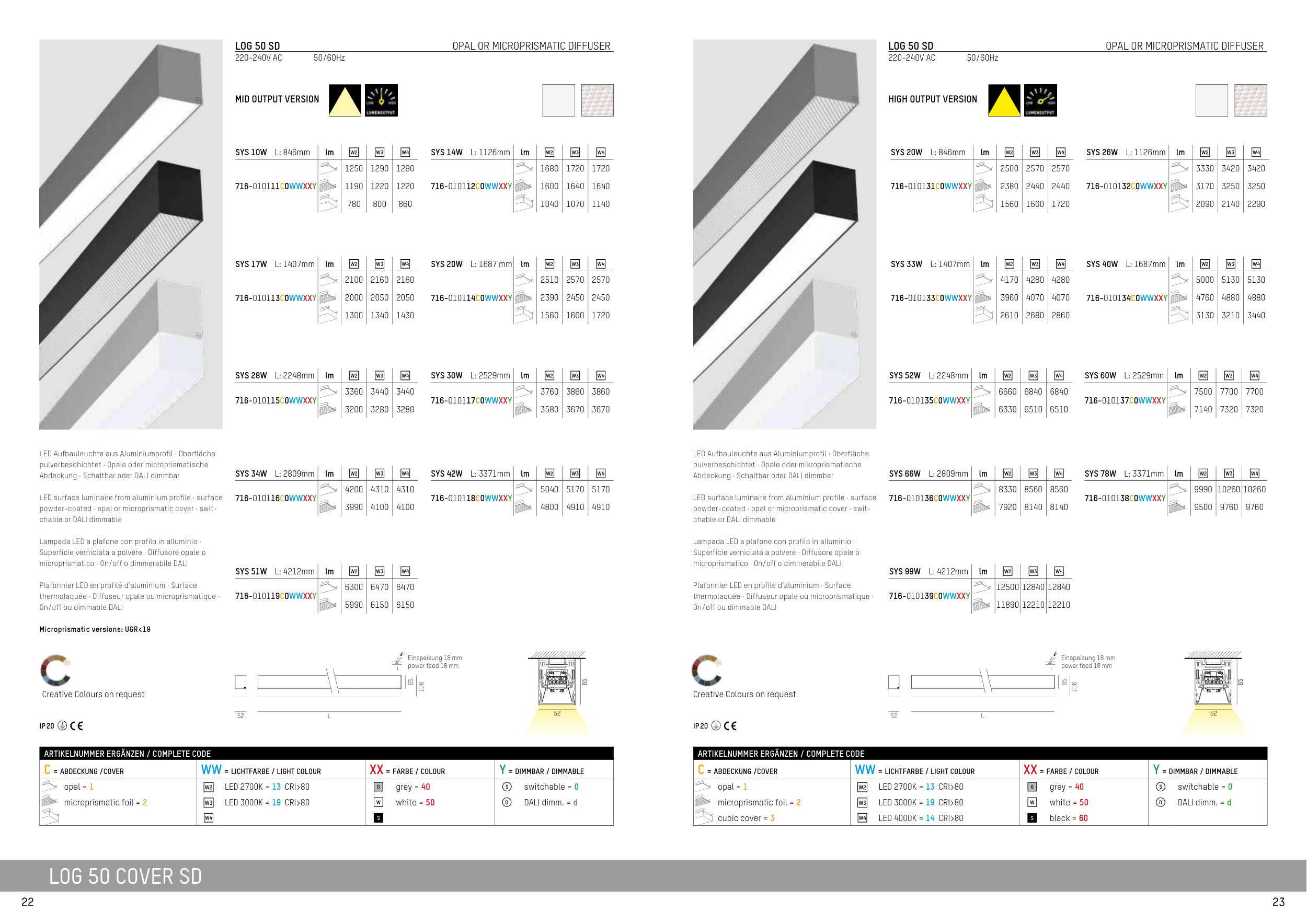

LOG 50 SD
OPAL OR MICROPRISMATIC DIFFUSER
220-240V AC
50/60Hz
MID OUTPUT VERSION
LOG 50 SD
OPAL OR MICROPRISMATIC DIFFUSER
220-240V AC
50/60Hz
HIGH OUTPUT VERSION
LED Aufbauleuchte aus Aluminiumprofil · Oberfläche
pulverbeschichtet · Opale oder microprismatische
Abdeckung · Schaltbar oder DALI dimmbar
LED surface luminaire from aluminium profile · surface
powder-coated · opal or microprismatic cover · swit-
chable or DALI dimmable
Lampada LED a plafone con profilo in alluminio ·
Superficie verniciata a polvere · Diffusore opale o
microprismatico · On/off o dimmerabile DALI
Plafonnier LED en profilé d‘aluminium · Surface
thermolaquée · Diffuseur opale ou microprismatique ·
On/off ou dimmable DALI
Microprismatic versions: UGR<19
LED Aufbauleuchte aus Aluminiumprofil · Oberfläche
pulverbeschichtet · Opale oder mikroprismatische
Abdeckung · Schaltbar oder DALI dimmbar
LED surface luminaire from aluminium profile · surface
powder-coated · opal or microprismatic cover · swit-
chable or DALI dimmable
Lampada LED a plafone con profilo in alluminio ·
Superficie verniciata a polvere · Diffusore opale o
microprismatico · On/off o dimmerabile DALI
Plafonnier LED en profilé d‘aluminium · Surface
thermolaquée · Diffuseur opale ou microprismatique ·
On/off ou dimmable DALI
IP 20
IP 20
ARTIKELNUMMER ERGÄNZEN / COMPLETE CODE
C = ABDECKUNG /COVER
WW = LICHTFARBE / LIGHT COLOUR
XX = FARBE / COLOUR
Y = DIMMBAR / DIMMABLE
opal = 1
LED 2700K = 13 CRI>80
G
grey = 40
S
switchable = 0
microprismatic foil = 2
LED 3000K = 19 CRI>80
W
white = 50
D
DALI dimm. = d
cubic cover = 3
LED 4000K = 14 CRI>80
S
black = 60
LOG 50 COVER SD
52
65
52
65
Creative Colours on request
Creative Colours on request
SYS 10W
L: 846mm
lm
716-010111C0WWXXY
1250
1290
1290
1190
1220
1220
780
800
860
SYS 20W
L: 846mm
lm
716-010131C0WWXXY
2500
2570
2570
2380
2440
2440
1560
1600
1720
SYS 17W
L: 1407mm
lm
716-010113C0WWXXY
2100
2160
2160
2000
2050
2050
1300
1340
1430
SYS 33W
L: 1407mm
lm
716-010133C0WWXXY
4170
4280
4280
3960
4070
4070
2610
2680
2860
SYS 20W
L: 1687 mm
lm
716-010114C0WWXXY
2510
2570
2570
2390
2450
2450
1560
1600
1720
SYS 40W
L: 1687mm
lm
716-010134C0WWXXY
5000
5130
5130
4760
4880
4880
3130
3210
3440
SYS 14W
L: 1126mm
lm
716-010112C0WWXXY
1680
1720
1720
1600
1640
1640
1040
1070
1140
SYS 26W
L: 1126mm
lm
716-010132C0WWXXY
3330
3420
3420
3170
3250
3250
2090
2140
2290
ARTIKELNUMMER ERGÄNZEN / COMPLETE CODE
C = ABDECKUNG /COVER
WW = LICHTFARBE / LIGHT COLOUR
XX = FARBE / COLOUR
Y = DIMMBAR / DIMMABLE
opal = 1
LED 2700K = 13 CRI>80
G
grey = 40
S
switchable = 0
microprismatic foil = 2
LED 3000K = 19 CRI>80
W
white = 50
D
DALI dimm. = d
S
Einspeisung 18 mm
power feed 18 mm
52
65
106
L
Einspeisung 18 mm
power feed 18 mm
52
65
106
L
