LED Hängeleuchte aus stranggepresstem Aluminiumprofil
Oberfläche eloxiert, weiß oder schwarz pulverbeschichtet
Lichteinsätze schwarz oder weiß mit Opaldiffusor
Inkl. 3000mm werkzeuglos höhenverstellbarer Abhängung
LED pendant profile made of extruded aluminium
Anodised surface, black or white powder-coated
Light inserts black or white with opal diffuser
Included 3m suspension cable, adjustable without tools
Sospensione a LED in alluminio estruso
Anodizzato o verniciato a polvere in bianco o nero
Inserti luminosi neri o bianchi con diffusore opale
Compreso di cavo da 3m, regolabile senza attrezzi
Suspension à LED en aluminium extrudé
Anodisé ou vernissé à poudres en blanc ou noir
Inserts lumineux noirs ou blancs avec diffuseur opale
3000mm câble de suspension inclus, réglable sans outils
IP 20
LED Hängeleuchte aus stranggepresstem Aluminiumprofil
Oberfläche eloxiert, weiß oder schwarz pulverbeschichtet
Schwarzer Lichteinsatz mit Mikroprismenoptik (OFFICE)
Schwarzer Lichteinsatz mit Linseneinsatz (LENS)
Inkl. 3000mm werkzeuglos höhenverstellbarer Abhängung
LED pendant profile made of extruded aluminium
Anodised surface, black or white powder-coated
Black light insert with microprismatic diffuser (OFFICE)
Black light insert with lens insert (LENS)
Included 3m suspension cable, adjustable without tools
Sospensione a LED in alluminio estruso
Anodizzato o verniciato a polvere in bianco o nero
Inserto a luce nera con ottica a microprismi (OFFICE)
Inserto a luce nera con lente (LENS)
Compreso di cavo da 3m, regolabile senza attrezzi
Suspension à LED en aluminium extrudé
Anodisé ou vernissé à poudres en blanc ou noir
Insert de lumière noire avec optique à microprisme (OFFICE)
Insert de lumière noire avec lentille (OFFICE)
3000mm câble de suspension inclus, réglable sans outils
= UGR<19
IP 20

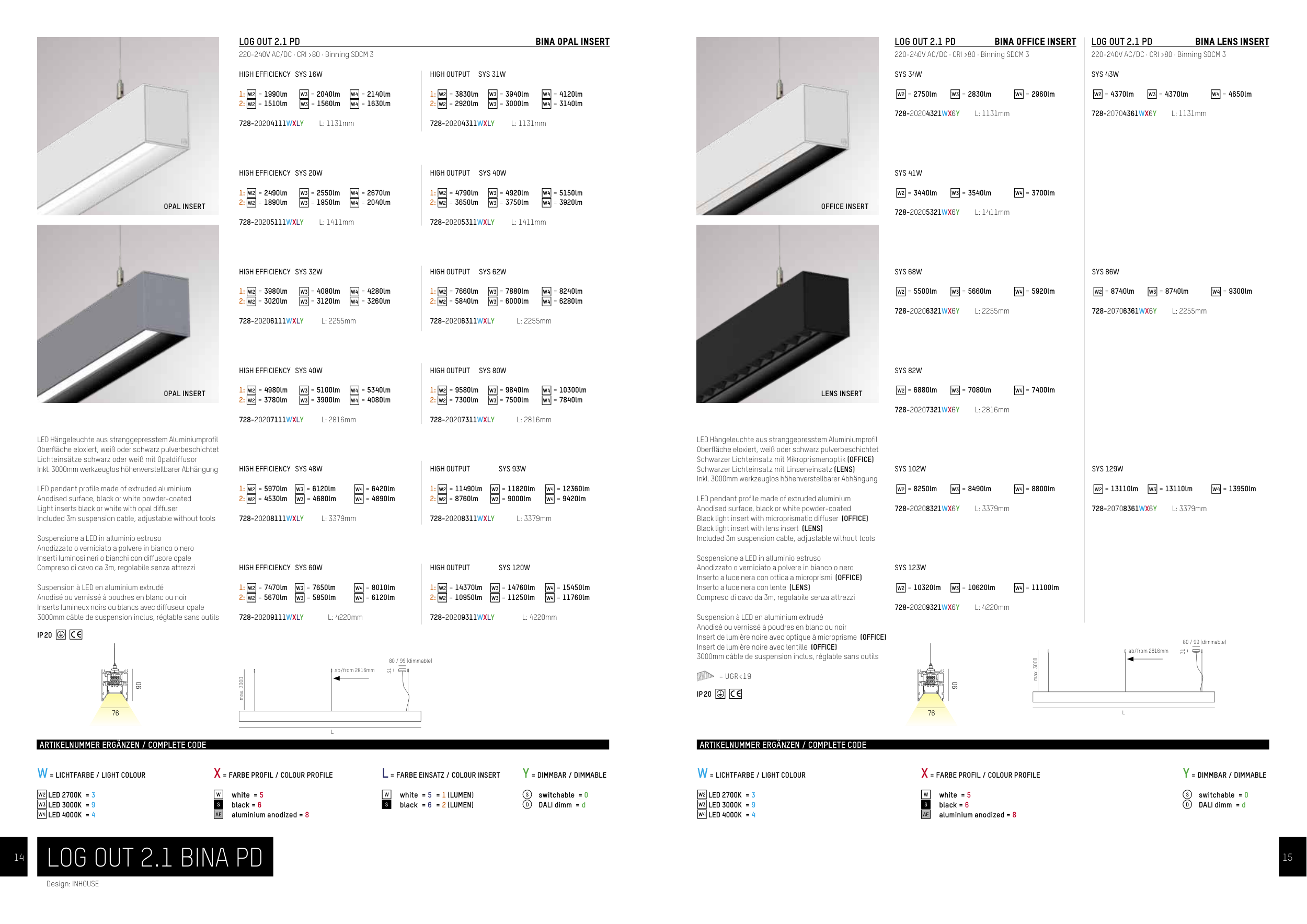

LOG OUT 2.1 BINA PD
Design: INHOUSE
L
31
max. 3000
80 / 99 (dimmable)
ab/from 2816mm
L
31
max. 3000
80 / 99 (dimmable)
ab/from 2816mm
LOG OUT 2.1 PD
BINA OFFICE INSERT
220-240V AC/DC · CRI >80 · Binning SDCM 3
SYS 34W
W2 = 2750lm
W3 = 2830lm
W4 = 2960lm
728-20204321WX6Y
L: 1131mm
LOG OUT 2.1 PD
BINA LENS INSERT
220-240V AC/DC · CRI >80 · Binning SDCM 3
SYS 43W
W2 = 4370lm
W3 = 4370lm
W4 = 4650lm
728-20704361WX6Y
L: 1131mm
SYS 41W
W2 = 3440lm
W3 = 3540lm
W4 = 3700lm
728-20205321WX6Y
L: 1411mm
SYS 68W
W2 = 5500lm
W3 = 5660lm
W4 = 5920lm
728-20206321WX6Y
L: 2255mm
SYS 86W
W2 = 8740lm
W3 = 8740lm
W4 = 9300lm
728-20706361WX6Y
L: 2255mm
SYS 82W
W2 = 6880lm
W3 = 7080lm
W4 = 7400lm
728-20207321WX6Y
L: 2816mm
SYS 102W
W2 = 8250lm
W3 = 8490lm
W4 = 8800lm
728-20208321WX6Y
L: 3379mm
SYS 129W
W2 = 13110lm W3 = 13110lm
W4 = 13950lm
728-20708361WX6Y
L: 3379mm
SYS 123W
W2 = 10320lm W3 = 10620lm
W4 = 11100lm
728-20209321WX6Y
L: 4220mm
ARTIKELNUMMER ERGÄNZEN / COMPLETE CODE
ARTIKELNUMMER ERGÄNZEN / COMPLETE CODE
X = FARBE PROFIL / COLOUR PROFILE
W white = 5
S black = 6
AE aluminium anodized = 8
X = FARBE PROFIL / COLOUR PROFILE
W white = 5
S black = 6
AE aluminium anodized = 8
L = FARBE EINSATZ / COLOUR INSERT
W white = 5 = 1 (LUMEN)
S black = 6 = 2 (LUMEN)
Y = DIMMBAR / DIMMABLE
S switchable = 0
D DALI dimm = d
Y = DIMMBAR / DIMMABLE
S switchable = 0
D DALI dimm = d
W = LICHTFARBE / LIGHT COLOUR
W2 LED 2700K = 3
W3 LED 3000K = 9
W4 LED 4000K = 4
W = LICHTFARBE / LIGHT COLOUR
W2 LED 2700K = 3
W3 LED 3000K = 9
W4 LED 4000K = 4
LOG OUT 2.1 PD
BINA OPAL INSERT
220-240V AC/DC · CRI >80 · Binning SDCM 3
HIGH EFFICIENCY SYS 16W
HIGH OUTPUT SYS 31W
1: W2 = 1990lm
W3 = 2040lm
W4 = 2140lm
1: W2 = 3830lm W3 = 3940lm
W4 = 4120lm
2: W2 = 1510lm W3 = 1560lm
W4 = 1630lm
2: W2 = 2920lm W3 = 3000lm
W4 = 3140lm
728-20204111WXLY
L: 1131mm
728-20204311WXLY
L: 1131mm
HIGH EFFICIENCY SYS 20W
HIGH OUTPUT SYS 40W
1: W2 = 2490lm
W3 = 2550lm
W4 = 2670lm
1: W2 = 4790lm W3 = 4920lm
W4 = 5150lm
2: W2 = 1890lm W3 = 1950lm
W4 = 2040lm
2: W2 = 3650lm W3 = 3750lm
W4 = 3920lm
728-20205111WXLY
L: 1411mm
728-20205311WXLY
L: 1411mm
HIGH EFFICIENCY SYS 32W
HIGH OUTPUT SYS 62W
1: W2 = 3980lm
W3 = 4080lm
W4 = 4280lm
1: W2 = 7660lm W3 = 7880lm
W4 = 8240lm
2: W2 = 3020lm W3 = 3120lm
W4 = 3260lm
2: W2 = 5840lm W3 = 6000lm
W4 = 6280lm
728-20206111WXLY
L: 2255mm
728-20206311WXLY
L: 2255mm
HIGH EFFICIENCY SYS 40W
HIGH OUTPUT SYS 80W
1: W2 = 4980lm
W3 = 5100lm
W4 = 5340lm
1: W2 = 9580lm W3 = 9840lm
W4 = 10300lm
2: W2 = 3780lm W3 = 3900lm
W4 = 4080lm
2: W2 = 7300lm W3 = 7500lm
W4 = 7840lm
728-20207111WXLY
L: 2816mm
728-20207311WXLY
L: 2816mm
HIGH EFFICIENCY SYS 48W
HIGH OUTPUT
SYS 93W
1: W2 = 5970lm
W3 = 6120lm
W4 = 6420lm
1: W2 = 11490lm W3 = 11820lm W4 = 12360lm
2: W2 = 4530lm W3 = 4680lm
W4 = 4890lm
2: W2 = 8760lm
W3 = 9000lm
W4 = 9420lm
728-20208111WXLY
L: 3379mm
728-20208311WXLY
L: 3379mm
HIGH EFFICIENCY SYS 60W
HIGH OUTPUT
SYS 120W
1: W2 = 7470lm
W3 = 7650lm
W4 = 8010lm
1: W2 = 14370lm W3 = 14760lm W4 = 15450lm
2: W2 = 5670lm W3 = 5850lm
W4 = 6120lm
2: W2 = 10950lm W3 = 11250lm W4 = 11760lm
728-20209111WXLY
L: 4220mm
728-20209311WXLY
L: 4220mm
90
76
90
76
OPAL INSERT
OFFICE INSERT
OPAL INSERT
LENS INSERT
15
14
15
14
