LED Hängeleuchte aus stranggepresstem Aluminiumprofil
Oberfläche eloxiert, weiß oder schwarz pulverbeschichtet
Abdeckung mit Mikroprismenfolie oder Opaldiffusor
Inkl. 3000mm werkzeuglos höhenverstellbarer Abhängung
LED pendant profile made of extruded aluminium
Anodised surface, black or white powder-coated
Opal diffuser or microprismatic foil
Included 3m suspension cable, adjustable without tools
Sospensione a LED in alluminio estruso
Anodizzato o verniciato a polvere in bianco o nero
Diffusore opale o microprismatico
Compreso di cavo da 3m, regolabile senza attrezzi
Suspension à LED en aluminium extrudé
Anodisé ou vernissé à poudres en blanc ou noir
Diffuseur opal ou en microprisme
3000mm câble de suspension inclus, réglable sans outils
= UGR<19 (ONLY HIGH EFFICIENCY VERSION)
IP 20

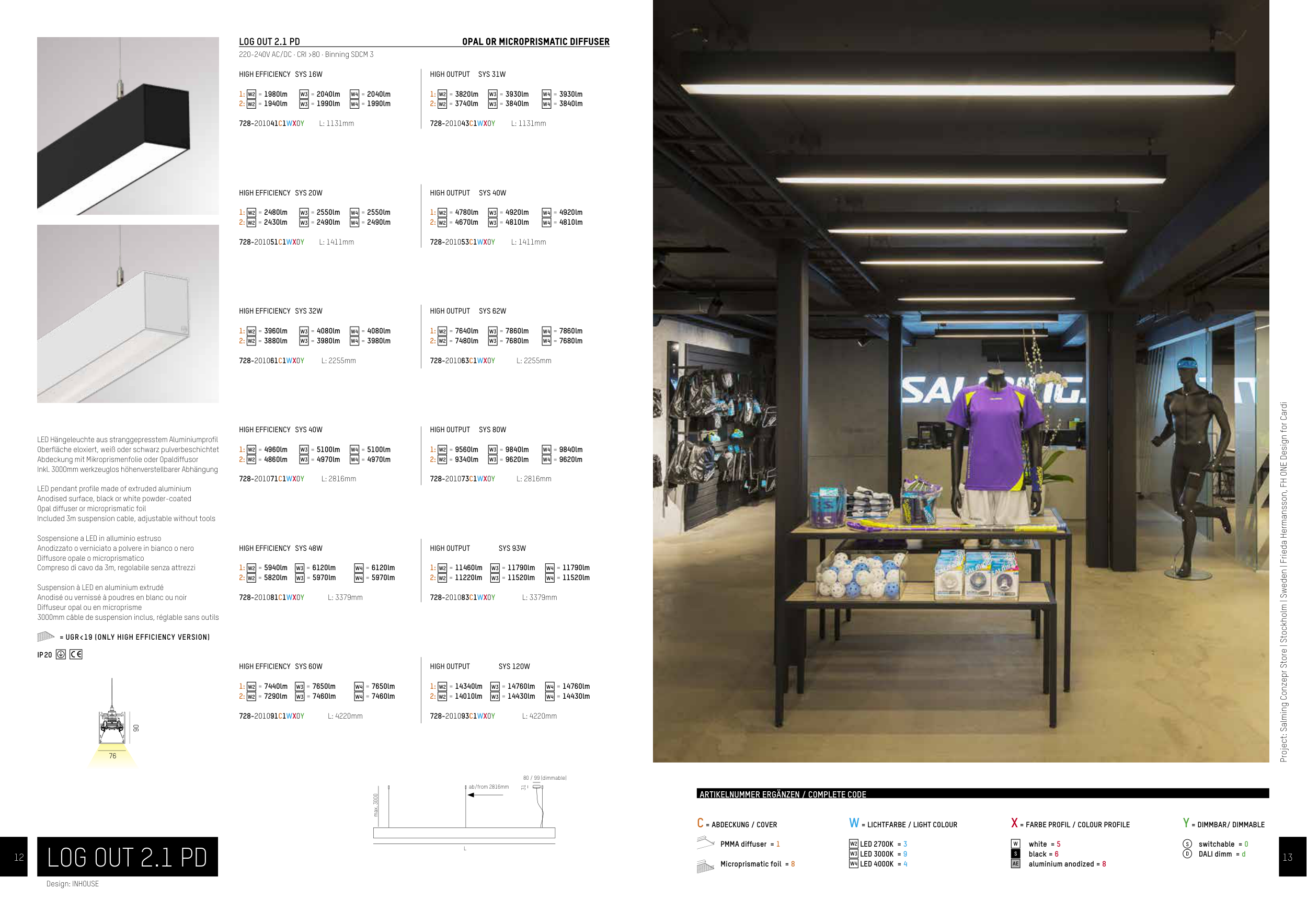

LOG OUT 2.1 PD
Design: INHOUSE
L
31
max. 3000
80 / 99 (dimmable)
ab/from 2816mm
LOG OUT 2.1 PD
OPAL OR MICROPRISMATIC DIFFUSER
220-240V AC/DC · CRI >80 · Binning SDCM 3
HIGH EFFICIENCY SYS 16W
HIGH OUTPUT SYS 31W
1: W2 = 1980lm
W3 = 2040lm
W4 = 2040lm
1: W2 = 3820lm W3 = 3930lm
W4 = 3930lm
2: W2 = 1940lm W3 = 1990lm
W4 = 1990lm
2: W2 = 3740lm W3 = 3840lm
W4 = 3840lm
728-201041C1WX0Y
L: 1131mm
728-201043C1WX0Y
L: 1131mm
HIGH EFFICIENCY SYS 20W
HIGH OUTPUT SYS 40W
1: W2 = 2480lm
W3 = 2550lm
W4 = 2550lm
1: W2 = 4780lm W3 = 4920lm
W4 = 4920lm
2: W2 = 2430lm W3 = 2490lm
W4 = 2490lm
2: W2 = 4670lm W3 = 4810lm
W4 = 4810lm
728-201051C1WX0Y
L: 1411mm
728-201053C1WX0Y
L: 1411mm
HIGH EFFICIENCY SYS 32W
HIGH OUTPUT SYS 62W
1: W2 = 3960lm
W3 = 4080lm
W4 = 4080lm
1: W2 = 7640lm W3 = 7860lm
W4 = 7860lm
2: W2 = 3880lm W3 = 3980lm
W4 = 3980lm
2: W2 = 7480lm W3 = 7680lm
W4 = 7680lm
728-201061C1WX0Y
L: 2255mm
728-201063C1WX0Y
L: 2255mm
HIGH EFFICIENCY SYS 40W
HIGH OUTPUT SYS 80W
1: W2 = 4960lm
W3 = 5100lm
W4 = 5100lm
1: W2 = 9560lm W3 = 9840lm
W4 = 9840lm
2: W2 = 4860lm W3 = 4970lm
W4 = 4970lm
2: W2 = 9340lm W3 = 9620lm
W4 = 9620lm
728-201071C1WX0Y
L: 2816mm
728-201073C1WX0Y
L: 2816mm
HIGH EFFICIENCY SYS 48W
HIGH OUTPUT
SYS 93W
1: W2 = 5940lm
W3 = 6120lm
W4 = 6120lm
1: W2 = 11460lm W3 = 11790lm W4 = 11790lm
2: W2 = 5820lm W3 = 5970lm
W4 = 5970lm
2: W2 = 11220lm W3 = 11520lm W4 = 11520lm
728-201081C1WX0Y
L: 3379mm
728-201083C1WX0Y
L: 3379mm
HIGH EFFICIENCY SYS 60W
HIGH OUTPUT
SYS 120W
1: W2 = 7440lm
W3 = 7650lm
W4 = 7650lm
1: W2 = 14340lm W3 = 14760lm W4 = 14760lm
2: W2 = 7290lm W3 = 7460lm
W4 = 7460lm
2: W2 = 14010lm W3 = 14430lm W4 = 14430lm
728-201091C1WX0Y
L: 4220mm
728-201093C1WX0Y
L: 4220mm
ARTIKELNUMMER ERGÄNZEN / COMPLETE CODE
X = FARBE PROFIL / COLOUR PROFILE
W white = 5
S black = 6
AE aluminium anodized = 8
C = ABDECKUNG / COVER
PMMA diffuser = 1
Microprismatic foil = 8
Y = DIMMBAR/ DIMMABLE
S switchable = 0
D DALI dimm = d
W = LICHTFARBE / LIGHT COLOUR
W2 LED 2700K = 3
W3 LED 3000K = 9
W4 LED 4000K = 4
90
76
Project: Salming Conzepr Store | Stockholm | Sweden | Frieda Hermansson, FH ONE Design for Cardi
