Molto Luce: Log 2.1 2020, 22 22

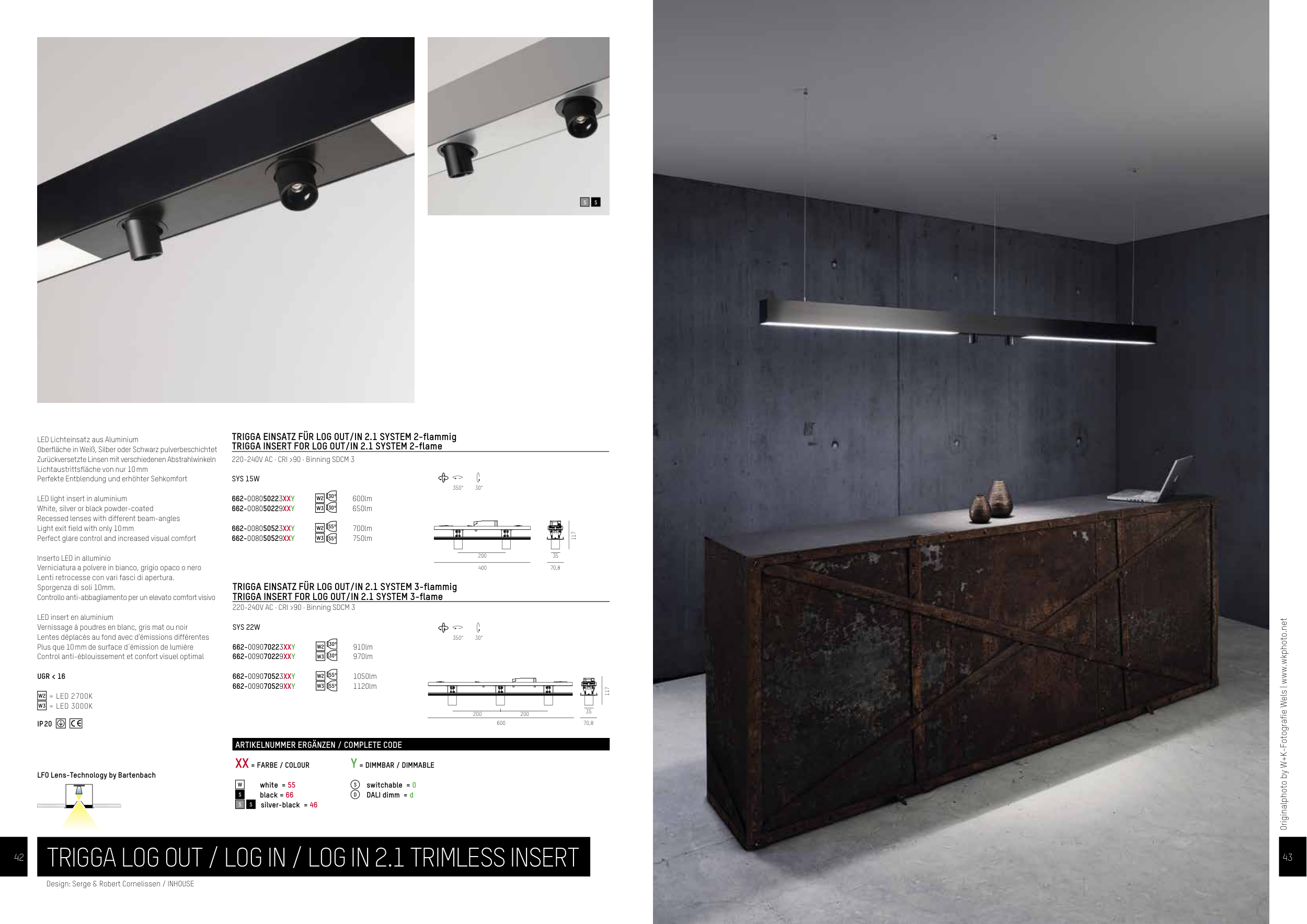

TRIGGA LOG OUT / LOG IN / LOG IN 2.1 TRIMLESS INSERT
Design: Serge & Robert Cornelissen / INHOUSE
LED Lichteinsatz aus Aluminium
Oberfläche in Weiß, Silber oder Schwarz pulverbeschichtet
Zurückversetzte Linsen mit verschiedenen Abstrahlwinkeln
Lichtaustrittsfläche von nur 10 mm
Perfekte Entblendung und erhöhter Sehkomfort
LED light insert in aluminium
White, silver or black powder-coated
Recessed lenses with different beam-angles
Light exit field with only 10 mm
Perfect glare control and increased visual comfort
Inserto LED in alluminio
Verniciatura a polvere in bianco, grigio opaco o nero
Lenti retrocesse con vari fasci di apertura.
Sporgenza di soli 10mm.
Controllo anti-abbagliamento per un elevato comfort visivo
LED insert en aluminium
Vernissage á poudres en blanc, gris mat ou noir
Lentes déplacés au fond avec d‘émissions différentes
Plus que 10 mm de surface d´émission de lumière
Control anti-éblouissement et confort visuel optimal
UGR < 16
W2 = LED 2700K
W3 = LED 3000K
IP 20


TRIGGA EINSATZ FÜR LOG OUT/IN 2.1 SYSTEM 2-flammig
TRIGGA INSERT FOR LOG OUT/IN 2.1 SYSTEM 2-flame
220-240V AC · CRI >90 · Binning SDCM 3
SYS 15W
662-008050223XXY
W2 30º
600lm
662-008050229XXY
W3 30º
650lm
662-008050523XXY
W2 55º
700lm
662-008050529XXY
W3 55º
750lm
TRIGGA EINSATZ FÜR LOG OUT/IN 2.1 SYSTEM 3-flammig
TRIGGA INSERT FOR LOG OUT/IN 2.1 SYSTEM 3-flame
220-240V AC · CRI >90 · Binning SDCM 3

SYS 22W
662-009070223XXY
W2 30º
910lm
662-009070229XXY
W3 30º
970lm
662-009070523XXY
W2 55º
1050lm
662-009070529XXY
W3 55º
1120lm
Originalphoto by W+K-Fotografie Wels, www.wkphoto.net
LFO Lens-Technology by Bartenbach
350°
30°
350°
30°
400
600
200
200
200
35
117
70,8
35
117
70,8
S S
ARTIKELNUMMER ERGÄNZEN / COMPLETE CODE
XX = FARBE / COLOUR
W white = 55
S black = 66
S S silver-black = 46
Y = DIMMBAR / DIMMABLE
S switchable = 0
D DALI dimm = d
Originalphoto by W+K-Fotografie Wels | www.wkphoto.net
