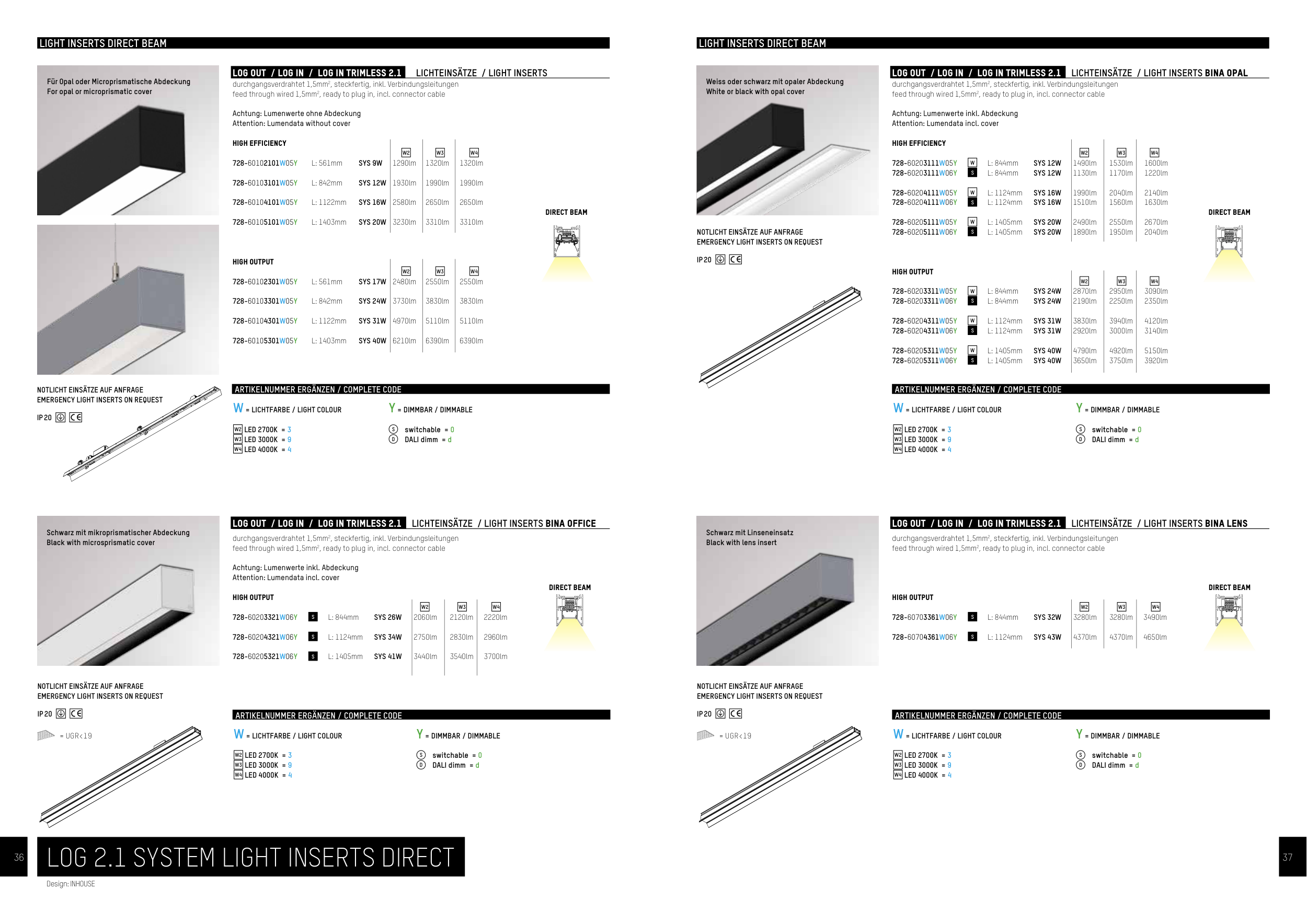

LOG 2.1 SYSTEM LIGHT INSERTS DIRECT
Design: INHOUSE
LIGHT INSERTS DIRECT BEAM
LIGHT INSERTS DIRECT BEAM
LOG OUT / LOG IN / LOG IN TRIMLESS 2.1 LICHTEINSÄTZE / LIGHT INSERTS
durchgangsverdrahtet 1,5mm2, steckfertig, inkl. Verbindungsleitungen
feed through wired 1,5mm2, ready to plug in, incl. connector cable
Achtung: Lumenwerte ohne Abdeckung
Attention: Lumendata without cover
HIGH EFFICIENCY
W2
W3
W4
728-60102101W05Y
L: 561mm
SYS 9W
1290lm
1320lm
1320lm
728-60103101W05Y
L: 842mm
SYS 12W 1930lm
1990lm
1990lm
728-60104101W05Y
L: 1122mm SYS 16W 2580lm
2650lm
2650lm
728-60105101W05Y
L: 1403mm SYS 20W 3230lm
3310lm
3310lm
HIGH OUTPUT
W2
W3
W4
728-60102301W05Y
L: 561mm
SYS 17W 2480lm
2550lm
2550lm
728-60103301W05Y
L: 842mm
SYS 24W 3730lm
3830lm
3830lm
728-60104301W05Y
L: 1122mm SYS 31W 4970lm
5110lm
5110lm
728-60105301W05Y
L: 1403mm SYS 40W 6210lm
6390lm
6390lm
LOG OUT / LOG IN / LOG IN TRIMLESS 2.1 LICHTEINSÄTZE / LIGHT INSERTS BINA OPAL
durchgangsverdrahtet 1,5mm2, steckfertig, inkl. Verbindungsleitungen
feed through wired 1,5mm2, ready to plug in, incl. connector cable
Achtung: Lumenwerte inkl. Abdeckung
Attention: Lumendata incl. cover
HIGH EFFICIENCY
W2
W3
W4
728-60203111W05Y W
L: 844mm
SYS 12W
1490lm
1530lm
1600lm
728-60203111W06Y S
L: 844mm
SYS 12W
1130lm
1170lm
1220lm
728-60204111W05Y W
L: 1124mm SYS 16W
1990lm
2040lm
2140lm
728-60204111W06Y S
L: 1124mm SYS 16W
1510lm
1560lm
1630lm
728-60205111W05Y W
L: 1405mm SYS 20W
2490lm
2550lm
2670lm
728-60205111W06Y S
L: 1405mm SYS 20W
1890lm
1950lm
2040lm
HIGH OUTPUT
W2
W3
W4
728-60203311W05Y W
L: 844mm
SYS 24W
2870lm
2950lm
3090lm
728-60203311W06Y S
L: 844mm
SYS 24W
2190lm
2250lm
2350lm
728-60204311W05Y W
L: 1124mm SYS 31W
3830lm
3940lm
4120lm
728-60204311W06Y S
L: 1124mm SYS 31W
2920lm
3000lm
3140lm
728-60205311W05Y W
L: 1405mm SYS 40W
4790lm
4920lm
5150lm
728-60205311W06Y S
L: 1405mm SYS 40W
3650lm
3750lm
3920lm
LOG OUT / LOG IN / LOG IN TRIMLESS 2.1 LICHTEINSÄTZE / LIGHT INSERTS BINA OFFICE
durchgangsverdrahtet 1,5mm2, steckfertig, inkl. Verbindungsleitungen
feed through wired 1,5mm2, ready to plug in, incl. connector cable
Achtung: Lumenwerte inkl. Abdeckung
Attention: Lumendata incl. cover
HIGH OUTPUT
W2
W3
W4
728-60203321W06Y S
L: 844mm
SYS 26W
2060lm
2120lm
2220lm
728-60204321W06Y S
L: 1124mm SYS 34W
2750lm
2830lm
2960lm
728-60205321W06Y S
L: 1405mm SYS 41W
3440lm
3540lm
3700lm
LOG OUT / LOG IN / LOG IN TRIMLESS 2.1 LICHTEINSÄTZE / LIGHT INSERTS BINA LENS
durchgangsverdrahtet 1,5mm2, steckfertig, inkl. Verbindungsleitungen
feed through wired 1,5mm2, ready to plug in, incl. connector cable
HIGH OUTPUT
W2
W3
W4
728-60703361W06Y S
L: 844mm
SYS 32W
3280lm
3280lm
3490lm
728-60704361W06Y S
L: 1124mm SYS 43W
4370lm
4370lm
4650lm
Für Opal oder Microprismatische Abdeckung
For opal or microprismatic cover
Weiss oder schwarz mit opaler Abdeckung
White or black with opal cover
Schwarz mit mikroprismatischer Abdeckung
Black with microsprismatic cover
Schwarz mit Linseneinsatz
Black with lens insert
NOTLICHT EINSÄTZE AUF ANFRAGE
EMERGENCY LIGHT INSERTS ON REQUEST
IP 20
NOTLICHT EINSÄTZE AUF ANFRAGE
EMERGENCY LIGHT INSERTS ON REQUEST
IP 20
NOTLICHT EINSÄTZE AUF ANFRAGE
EMERGENCY LIGHT INSERTS ON REQUEST
IP 20
= UGR<19
NOTLICHT EINSÄTZE AUF ANFRAGE
EMERGENCY LIGHT INSERTS ON REQUEST
IP 20
= UGR<19
DIRECT BEAM
DIRECT BEAM
DIRECT BEAM
DIRECT BEAM
ARTIKELNUMMER ERGÄNZEN / COMPLETE CODE
ARTIKELNUMMER ERGÄNZEN / COMPLETE CODE
ARTIKELNUMMER ERGÄNZEN / COMPLETE CODE
ARTIKELNUMMER ERGÄNZEN / COMPLETE CODE
Y = DIMMBAR / DIMMABLE
S switchable = 0
D DALI dimm = d
Y = DIMMBAR / DIMMABLE
S switchable = 0
D DALI dimm = d
Y = DIMMBAR / DIMMABLE
S switchable = 0
D DALI dimm = d
Y = DIMMBAR / DIMMABLE
S switchable = 0
D DALI dimm = d
W = LICHTFARBE / LIGHT COLOUR
W2 LED 2700K = 3
W3 LED 3000K = 9
W4 LED 4000K = 4
W = LICHTFARBE / LIGHT COLOUR
W2 LED 2700K = 3
W3 LED 3000K = 9
W4 LED 4000K = 4
W = LICHTFARBE / LIGHT COLOUR
W2 LED 2700K = 3
W3 LED 3000K = 9
W4 LED 4000K = 4
W = LICHTFARBE / LIGHT COLOUR
W2 LED 2700K = 3
W3 LED 3000K = 9
W4 LED 4000K = 4
