ON/OFF
DALI
DALI D4i

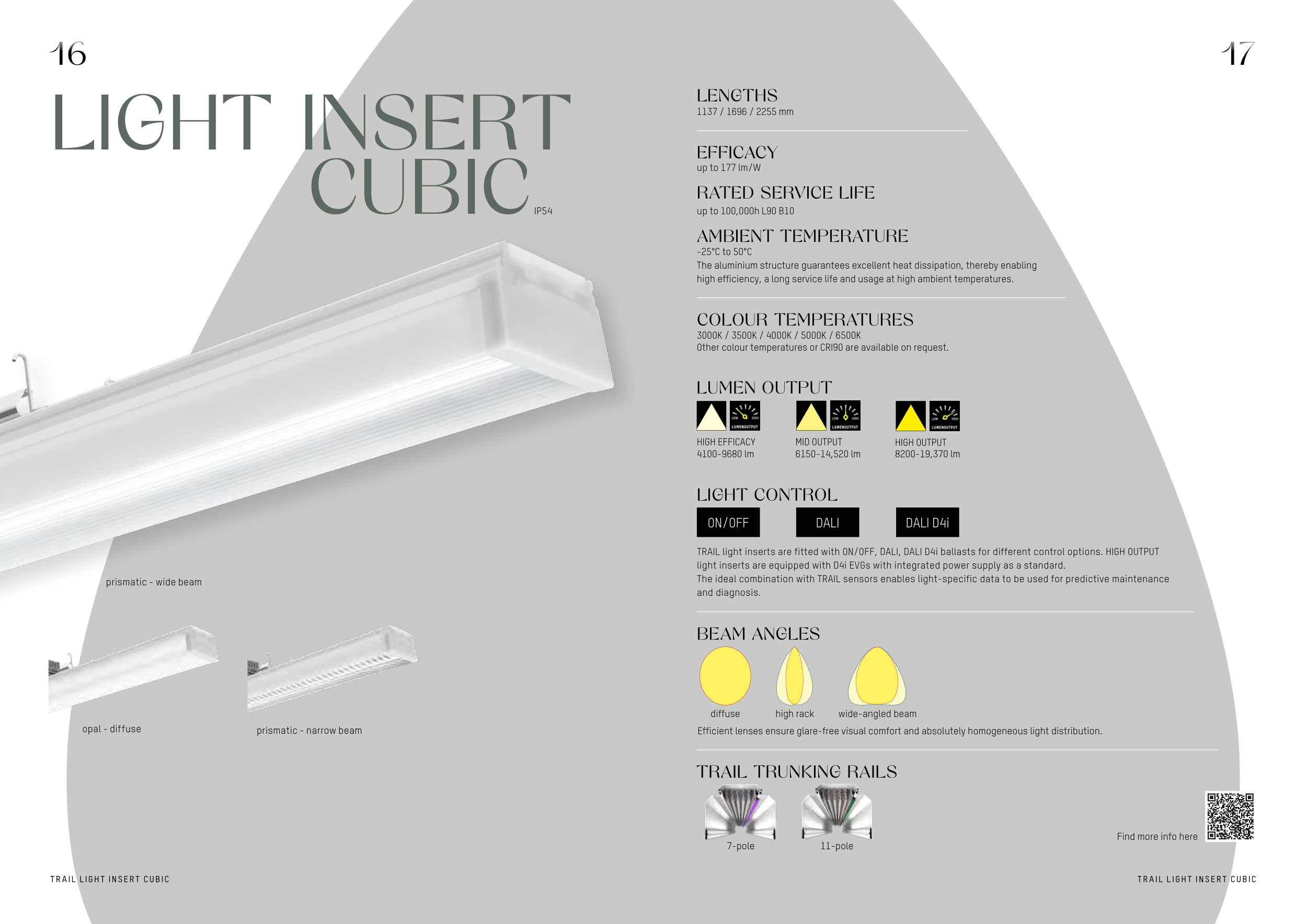

TR AIL L IGHT INSERT CUBIC
TR AIL L IGHT INSERT CUBIC
LIGHT INSERT
CUBIC
Find more info here
prismatic - wide beam
opal - diffuse
prismatic - narrow beam
LUMEN OUTPUT
LIGHT CONTROL
COLOUR TEMPERATURES
BEAM ANGLES
EFFICACY
RATED SERVICE LIFE
AMBIENT TEMPERATURE
LENGTHS
HIGH EFFICACY
4100-9680 lm
3000K / 3500K / 4000K / 5000K / 6500K
Other colour temperatures or CRI90 are available on request.
up to 177 lm/W
up to 100,000h L90 B10
-25°C to 50°C
The aluminium structure guarantees excellent heat dissipation, thereby enabling
high efficiency, a long service life and usage at high ambient temperatures.
1137 / 1696 / 2255 mm
MID OUTPUT
6150-14,520 lm
HIGH OUTPUT
8200-19,370 lm
TRAIL TRUNKING RAILS
Efficient lenses ensure glare-free visual comfort and absolutely homogeneous light distribution.
diffuse
high rack
TRAIL light inserts are fitted with ON/OFF, DALI, DALI D4i ballasts for different control options. HIGH OUTPUT
light inserts are equipped with D4i EVGs with integrated power supply as a standard.
The ideal combination with TRAIL sensors enables light-specific data to be used for predictive maintenance
and diagnosis.
wide-angled beam
7-pole
11-pole
IP54
16
17
