ON/OFF
ON / OFF
Multilumen
DALI

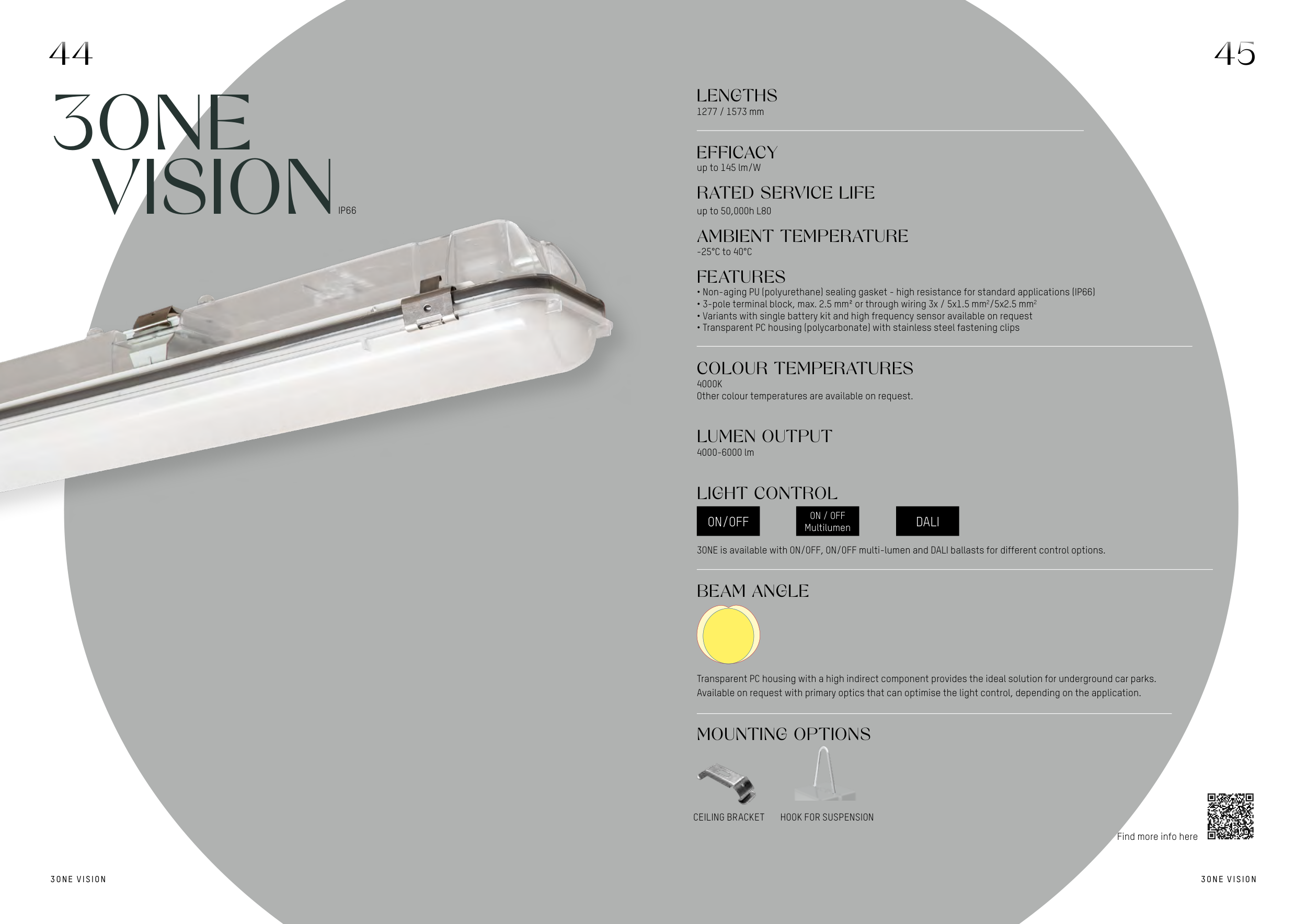

3ONE VISION
3ONE VISION
3ONE
VISION
LUMEN OUTPUT
LIGHT CONTROL
COLOUR TEMPERATURES
EFFICACY
RATED SERVICE LIFE
AMBIENT TEMPERATURE
LENGTHS
4000-6000 lm
4000K
Other colour temperatures are available on request.
up to 145 lm/W
up to 50,000h L80
-25°C to 40°C
1277 / 1573 mm
3ONE is available with ON/OFF, ON/OFF multi-lumen and DALI ballasts for different control options.
BEAM ANGLE
Transparent PC housing with a high indirect component provides the ideal solution for underground car parks.
Available on request with primary optics that can optimise the light control, depending on the application.
FEATURES
• Non-aging PU (polyurethane) sealing gasket - high resistance for standard applications (IP66)
• 3-pole terminal block, max. 2.5 mm² or through wiring 3x / 5x1.5 mm2/5x2.5 mm2
• Variants with single battery kit and high frequency sensor available on request
• Transparent PC housing (polycarbonate) with stainless steel fastening clips
CEILING BRACKET
MOUNTING OPTIONS
HOOK FOR SUSPENSION
Find more info here
IP66
44
45
INDEX
