ON/OFF
ON / OFF
Multilumen
DALI

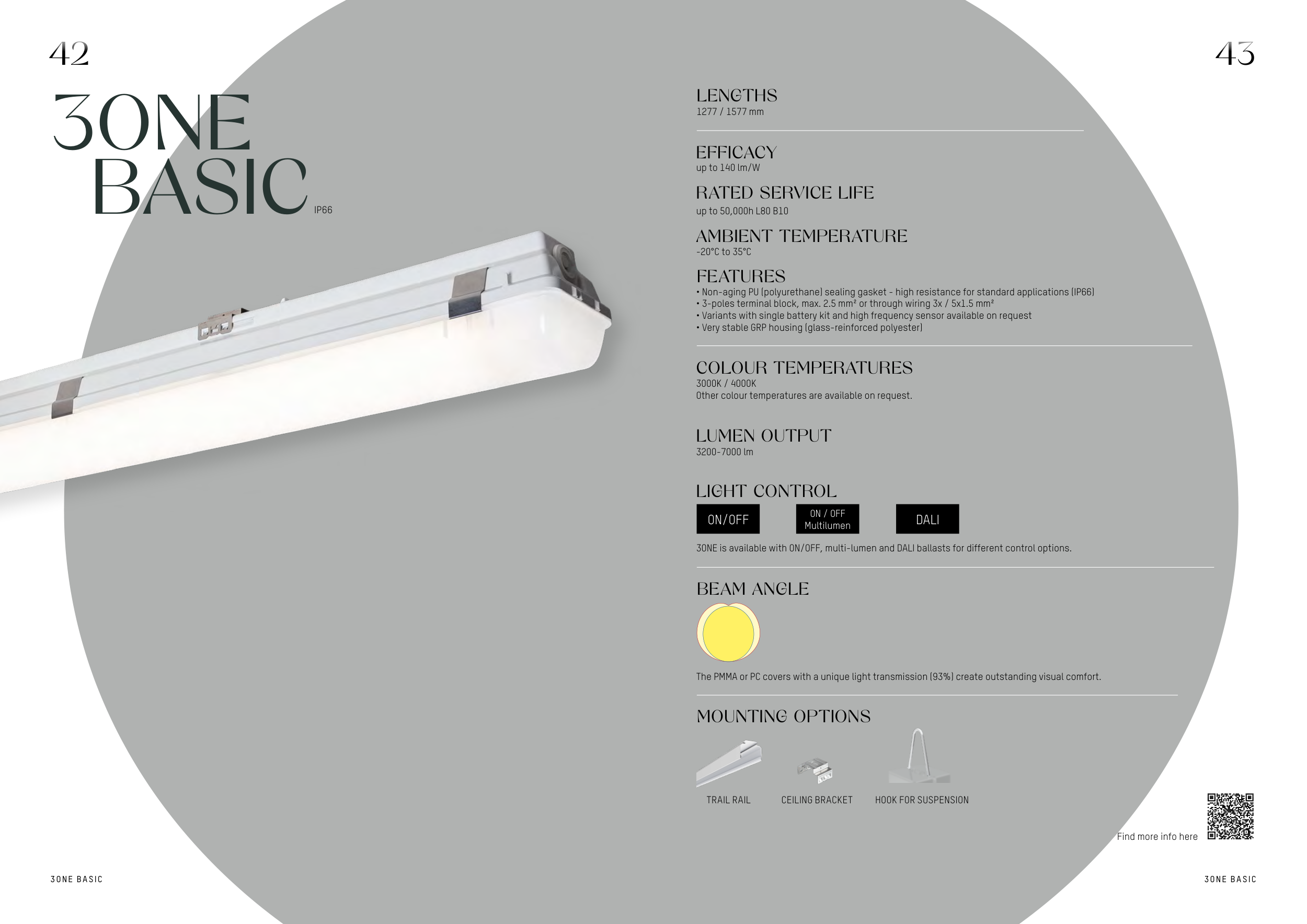

3ONE BASIC
3ONE BASIC
3ONE
BASIC
LUMEN OUTPUT
LIGHT CONTROL
COLOUR TEMPERATURES
EFFICACY
RATED SERVICE LIFE
AMBIENT TEMPERATURE
LENGTHS
3200-7000 lm
3000K / 4000K
Other colour temperatures are available on request.
up to 140 lm/W
up to 50,000h L80 B10
-20°C to 35°C
1277 / 1577 mm
3ONE is available with ON/OFF, multi-lumen and DALI ballasts for different control options.
BEAM ANGLE
The PMMA or PC covers with a unique light transmission (93%) create outstanding visual comfort.
FEATURES
• Non-aging PU (polyurethane) sealing gasket - high resistance for standard applications (IP66)
• 3-poles terminal block, max. 2.5 mm² or through wiring 3x / 5x1.5 mm²
• Variants with single battery kit and high frequency sensor available on request
• Very stable GRP housing (glass-reinforced polyester)
TRAIL RAIL
CEILING BRACKET
MOUNTING OPTIONS
HOOK FOR SUSPENSION
Find more info here
IP66
