ON/OFF
ON/OFF
Multilumen
DALI

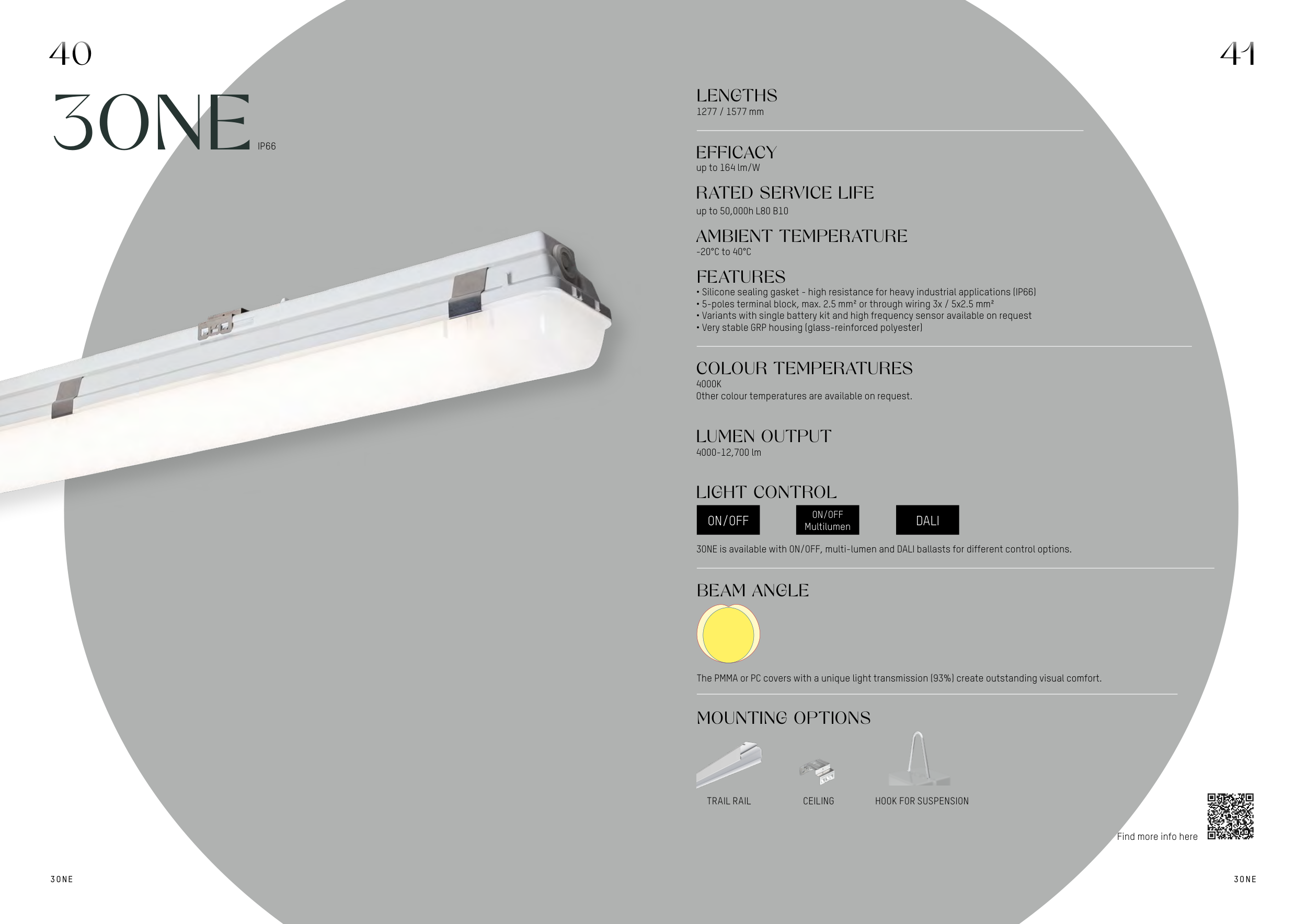

3ONE
3ONE
3ONE
LUMEN OUTPUT
LIGHT CONTROL
COLOUR TEMPERATURES
EFFICACY
RATED SERVICE LIFE
AMBIENT TEMPERATURE
FEATURES
LENGTHS
4000-12,700 lm
4000K
Other colour temperatures are available on request.
up to 164 lm/W
up to 50,000h L80 B10
-20°C to 40°C
• Silicone sealing gasket - high resistance for heavy industrial applications (IP66)
• 5-poles terminal block, max. 2.5 mm² or through wiring 3x / 5x2.5 mm²
• Variants with single battery kit and high frequency sensor available on request
• Very stable GRP housing (glass-reinforced polyester)
1277 / 1577 mm
3ONE is available with ON/OFF, multi-lumen and DALI ballasts for different control options.
The PMMA or PC covers with a unique light transmission (93%) create outstanding visual comfort.
BEAM ANGLE
TRAIL RAIL
CEILING
MOUNTING OPTIONS
HOOK FOR SUSPENSION
Find more info here
IP66
40
41
INDEX
