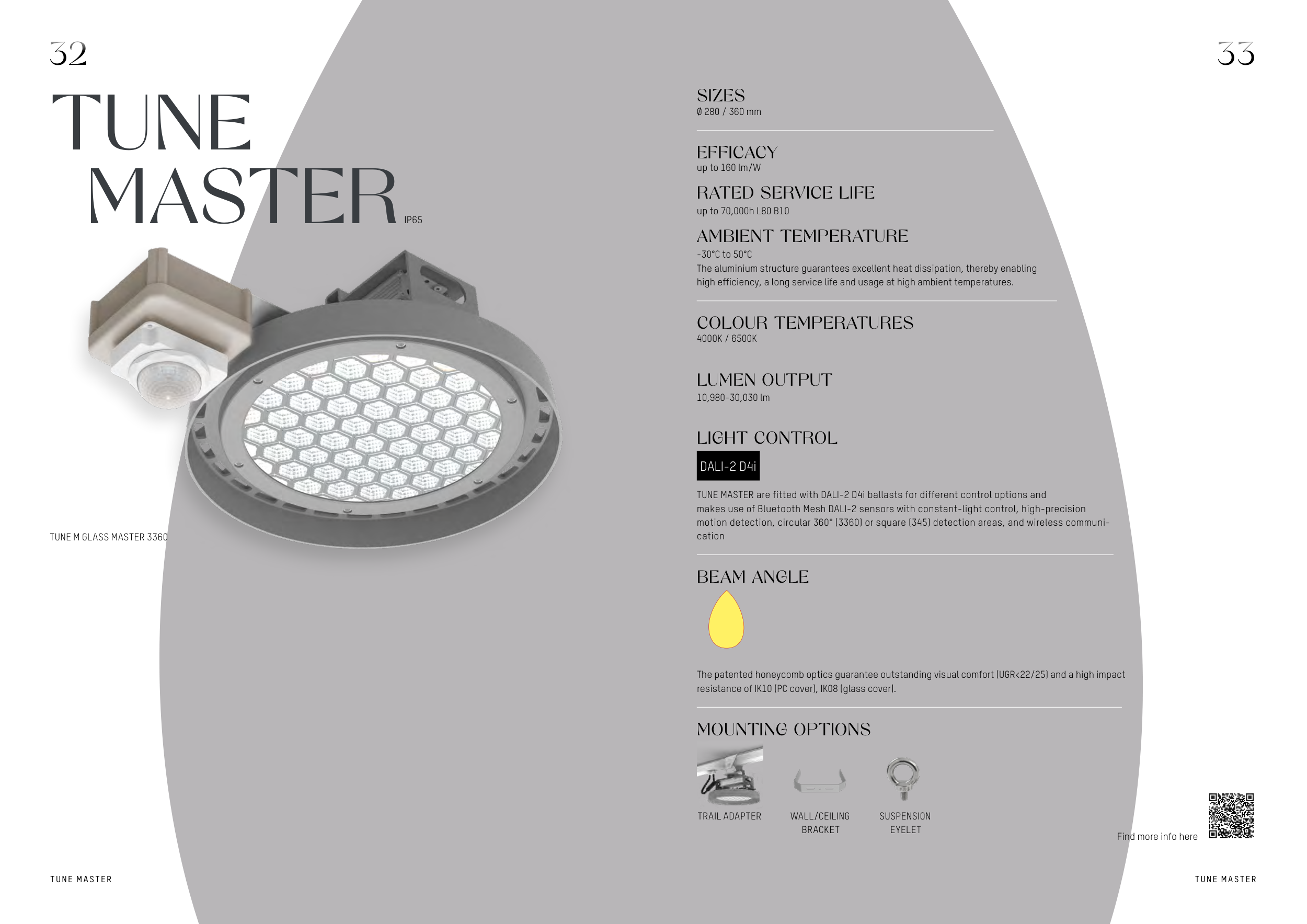

DALI-2 D4i
T UNE MASTER
T UNE MASTER
TUNE
MASTER
BEAM ANGLE
TRAIL ADAPTER
SUSPENSION
EYELET
MOUNTING OPTIONS
WALL/CEILING
BRACKET
TUNE M GLASS MASTER 3360
EFFICACY
RATED SERVICE LIFE
AMBIENT TEMPERATURE
SIZES
up to 160 lm/W
up to 70,000h L80 B10
-30°C to 50°C
The aluminium structure guarantees excellent heat dissipation, thereby enabling
high efficiency, a long service life and usage at high ambient temperatures.
Ø 280 / 360 mm
LUMEN OUTPUT
LIGHT CONTROL
COLOUR TEMPERATURES
10,980-30,030 lm
4000K / 6500K
TUNE MASTER are fitted with DALI-2 D4i ballasts for different control options and
makes use of Bluetooth Mesh DALI-2 sensors with constant-light control, high-precision
motion detection, circular 360° (3360) or square (345) detection areas, and wireless communi-
cation
The patented honeycomb optics guarantee outstanding visual comfort (UGR<22/25) and a high impact
resistance of IK10 (PC cover), IK08 (glass cover).
Find more info here
IP65
