ON/OFF
DALI

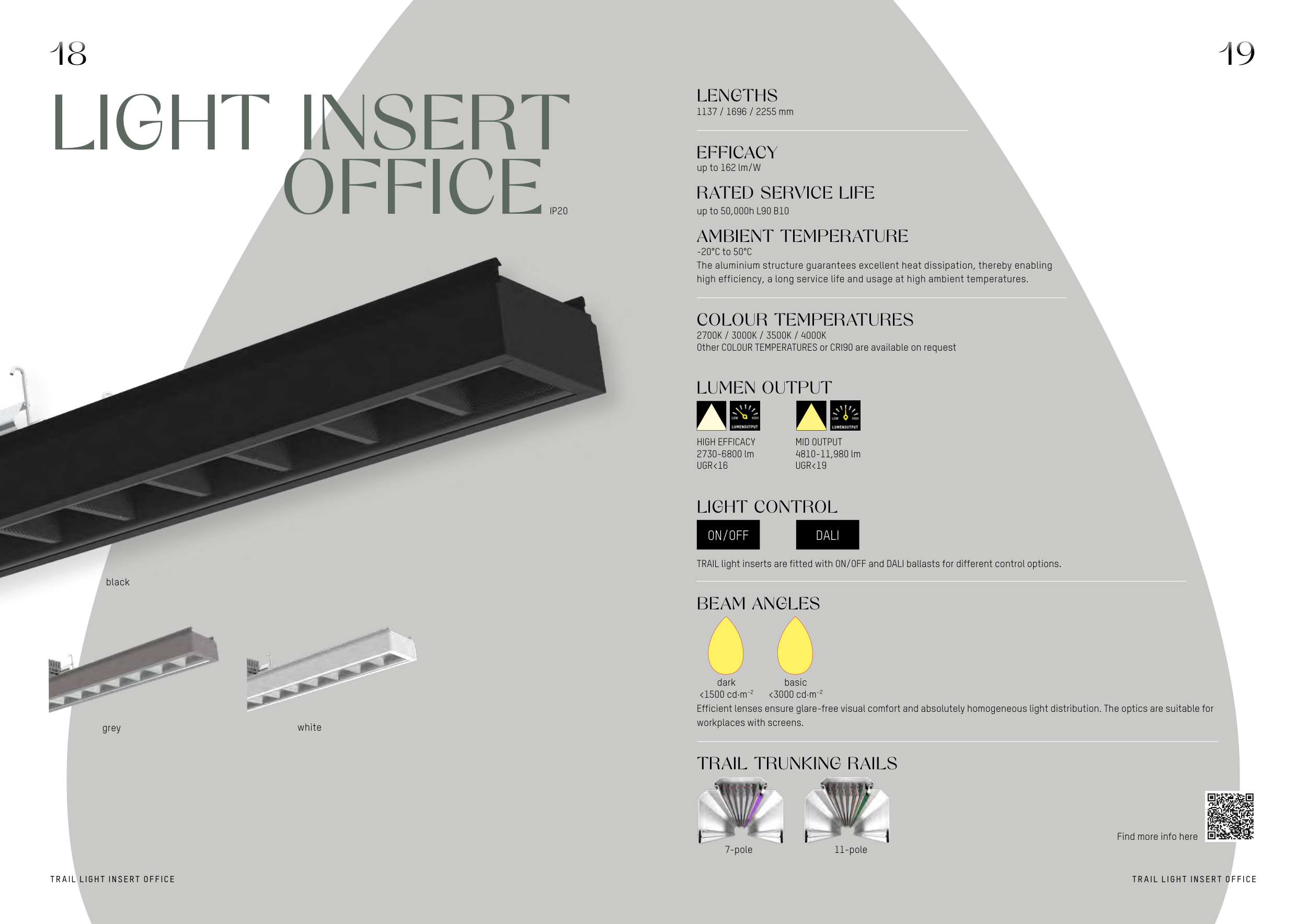

TR AIL L IGHT INSERT OFFICE
TR AIL L IGHT INSERT OFFICE
LIGHT INSERT
OFFICE
grey
black
white
LUMEN OUTPUT
LIGHT CONTROL
COLOUR TEMPERATURES
BEAM ANGLES
EFFICACY
RATED SERVICE LIFE
AMBIENT TEMPERATURE
LENGTHS
HIGH EFFICACY
2730-6800 lm
UGR<16
2700K / 3000K / 3500K / 4000K
Other COLOUR TEMPERATURES or CRI90 are available on request
up to 162 lm/W
up to 50,000h L90 B10
-20°C to 50°C
The aluminium structure guarantees excellent heat dissipation, thereby enabling
high efficiency, a long service life and usage at high ambient temperatures.
1137 / 1696 / 2255 mm
MID OUTPUT
4810-11,980 lm
UGR<19
TRAIL TRUNKING RAILS
7-pole
11-pole
Efficient lenses ensure glare-free visual comfort and absolutely homogeneous light distribution. The optics are suitable for
workplaces with screens.
TRAIL light inserts are fitted with ON/OFF and DALI ballasts for different control options.
dark
<1500 cd∙m−2
basic
<3000 cd∙m−2
Find more info here
IP20
18
19
INDEX
