132
133
1403 / 2003
1403 / 2003
1403 / 2003
720
720
720
35
35
35
max. 1500
max. 1500
max. 1500
35
35
35
16,5
16,5
16,5
50
50
50
incl. DALI repeater
excl. DALI repeater

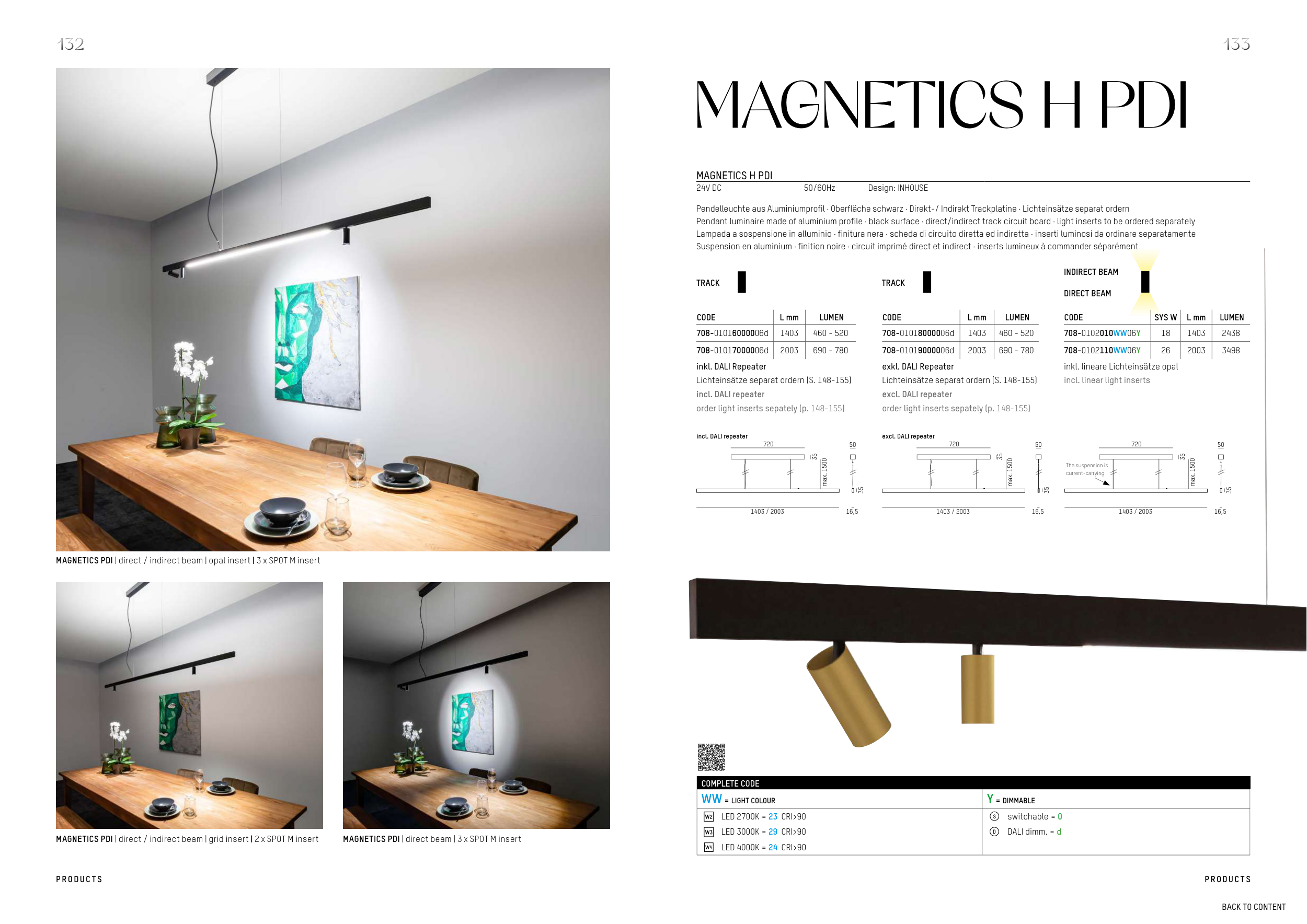

MAGNETICS H PDI
MAGNETICS H PDI
MAGNETICS H PDI
24V DC
50/60Hz
Design: INHOUSE
Pendelleuchte aus Aluminiumprofil · Oberfläche schwarz · Direkt-/ Indirekt Trackplatine · Lichteinsätze separat ordern
Pendant luminaire made of aluminium profile · black surface · direct/indirect track circuit board · light inserts to be ordered separately
Lampada a sospensione in alluminio · finitura nera · scheda di circuito diretta ed indiretta · inserti luminosi da ordinare separatamente
Suspension en aluminium · finition noire · circuit imprimé direct et indirect · inserts lumineux à commander séparément
CODE
L mm
LUMEN
708-01016000006d
1403
460 - 520
708-01017000006d
2003
690 - 780
inkl. DALI Repeater
Lichteinsätze separat ordern (S. 148-155)
incl. DALI repeater
order light inserts sepately (p. 148-155)
CODE
L mm
LUMEN
708-01018000006d
1403
460 - 520
708-01019000006d
2003
690 - 780
exkl. DALI Repeater
Lichteinsätze separat ordern (S. 148-155)
excl. DALI repeater
order light inserts sepately (p. 148-155)
PRODUC TS
PRODUC TS
MAGNETICS PDI | direct / indirect beam | opal insert | 3 x SPOT M insert
MAGNETICS PDI | direct / indirect beam | grid insert | 2 x SPOT M insert
MAGNETICS PDI | direct beam | 3 x SPOT M insert
INDIRECT BEAM
TRACK
TRACK
DIRECT BEAM
CODE
SYS W
L mm
LUMEN
708-0102010WW06Y
18
1403
2438
708-0102110WW06Y
26
2003
3498
inkl. lineare Lichteinsätze opal
incl. linear light inserts
COMPLETE CODE
WW = LIGHT COLOUR
Y = DIMMABLE
LED 2700K = 23 CRI>90
S
switchable = 0
LED 3000K = 29 CRI>90
D
DALI dimm. = d
LED 4000K = 24 CRI>90
The suspension is
current-carrying
