076
077

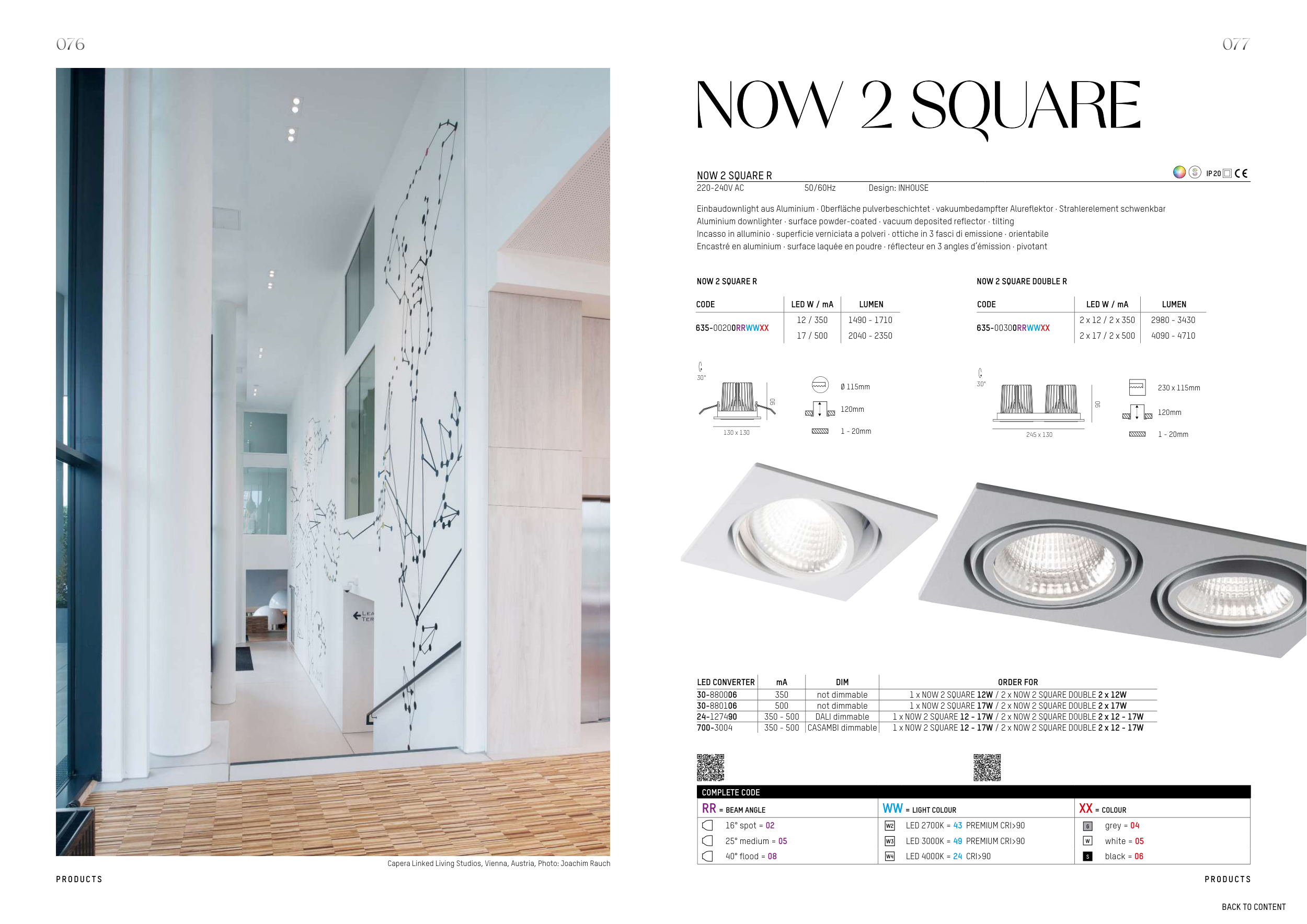

NOW 2 SQUARE
NOW 2 SQUARE
NOW 2 SQUARE R
220-240V AC
50/60Hz
Design: INHOUSE
Einbaudownlight aus Aluminium · Oberfläche pulverbeschichtet · vakuumbedampfter Alureflektor · Strahlerelement schwenkbar
Aluminium downlighter · surface powder-coated · vacuum deposited reflector · tilting
Incasso in alluminio · superficie verniciata a polveri · ottiche in 3 fasci di emissione · orientabile
Encastré en aluminium · surface laquée en poudre · réflecteur en 3 angles d‘émission · pivotant
IP 20
Capera Linked Living Studios, Vienna, Austria, Photo: Joachim Rauch
NOW 2 SQUARE R
NOW 2 SQUARE DOUBLE R
CODE
LED W / mA
LUMEN
635-00200RRWWXX
12 / 350
1490 - 1710
17 / 500
2040 - 2350
CODE
LED W / mA
LUMEN
635-00300RRWWXX
2 x 12 / 2 x 350
2980 - 3430
2 x 17 / 2 x 500
4090 - 4710
LED CONVERTER
mA
DIM
ORDER FOR
30-880006
350
not dimmable
1 x NOW 2 SQUARE 12W / 2 x NOW 2 SQUARE DOUBLE 2 x 12W
30-880106
500
not dimmable
1 x NOW 2 SQUARE 17W / 2 x NOW 2 SQUARE DOUBLE 2 x 17W
24-127490
350 - 500
DALI dimmable
1 x NOW 2 SQUARE 12 - 17W / 2 x NOW 2 SQUARE DOUBLE 2 x 12 - 17W
700-3004
350 - 500
CASAMBI dimmable
1 x NOW 2 SQUARE 12 - 17W / 2 x NOW 2 SQUARE DOUBLE 2 x 12 - 17W
COMPLETE CODE
RR = BEAM ANGLE
WW = LIGHT COLOUR
XX = COLOUR
16° spot = 02
LED 2700K = 43 PREMIUM CRI>90
grey = 04
25° medium = 05
LED 3000K = 49 PREMIUM CRI>90
W
white = 05
40° flood = 08
LED 4000K = 24 CRI>90
S
black = 06
G
1 - 20mm
1 - 20mm
120mm
120mm
230 x 115mm
130 x 130
90
30°
30°
Ø 115mm
245 x 130
90
