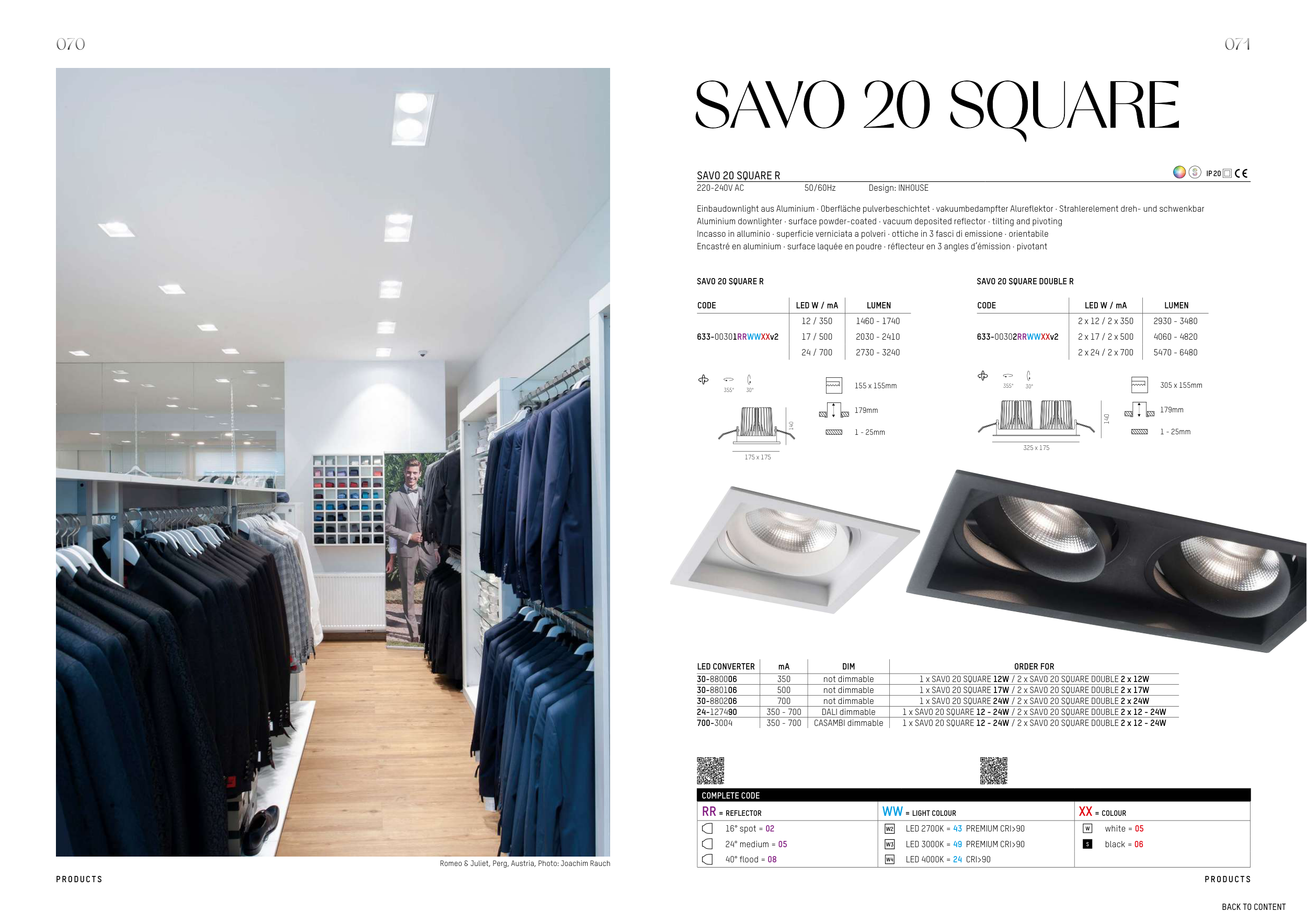

SAVO 20 SQUARE
SAVO 20 SQUARE
SAVO 20 SQUARE R
220-240V AC
50/60Hz
Design: INHOUSE
Einbaudownlight aus Aluminium · Oberfläche pulverbeschichtet · vakuumbedampfter Alureflektor · Strahlerelement dreh- und schwenkbar
Aluminium downlighter · surface powder-coated · vacuum deposited reflector · tilting and pivoting
Incasso in alluminio · superficie verniciata a polveri · ottiche in 3 fasci di emissione · orientabile
Encastré en aluminium · surface laquée en poudre · réflecteur en 3 angles d‘émission · pivotant
IP 20
CODE
LED W / mA
LUMEN
12 / 350
1460 - 1740
633-00301RRWWXXv2
17 / 500
2030 - 2410
24 / 700
2730 - 3240
CODE
LED W / mA
LUMEN
2 x 12 / 2 x 350
2930 - 3480
633-00302RRWWXXv2
2 x 17 / 2 x 500
4060 - 4820
2 x 24 / 2 x 700
5470 - 6480
Romeo & Juliet, Perg, Austria, Photo: Joachim Rauch
1 - 25mm
1 - 25mm
179mm
179mm
LED CONVERTER
mA
DIM
ORDER FOR
30-880006
350
not dimmable
1 x SAVO 20 SQUARE 12W / 2 x SAVO 20 SQUARE DOUBLE 2 x 12W
30-880106
500
not dimmable
1 x SAVO 20 SQUARE 17W / 2 x SAVO 20 SQUARE DOUBLE 2 x 17W
30-880206
700
not dimmable
1 x SAVO 20 SQUARE 24W / 2 x SAVO 20 SQUARE DOUBLE 2 x 24W
24-127490
350 - 700
DALI dimmable
1 x SAVO 20 SQUARE 12 - 24W / 2 x SAVO 20 SQUARE DOUBLE 2 x 12 - 24W
700-3004
350 - 700
CASAMBI dimmable
1 x SAVO 20 SQUARE 12 - 24W / 2 x SAVO 20 SQUARE DOUBLE 2 x 12 - 24W
155 x 155mm
305 x 155mm
SAVO 20 SQUARE R
SAVO 20 SQUARE DOUBLE R
355°
355°
30°
30°
175 x 175
140
325 x 175
140
COMPLETE CODE
RR = REFLECTOR
WW = LIGHT COLOUR
XX = COLOUR
16° spot = 02
LED 2700K = 43 PREMIUM CRI>90
W
white = 05
24° medium = 05
LED 3000K = 49 PREMIUM CRI>90
S
black = 06
40° flood = 08
LED 4000K = 24 CRI>90
