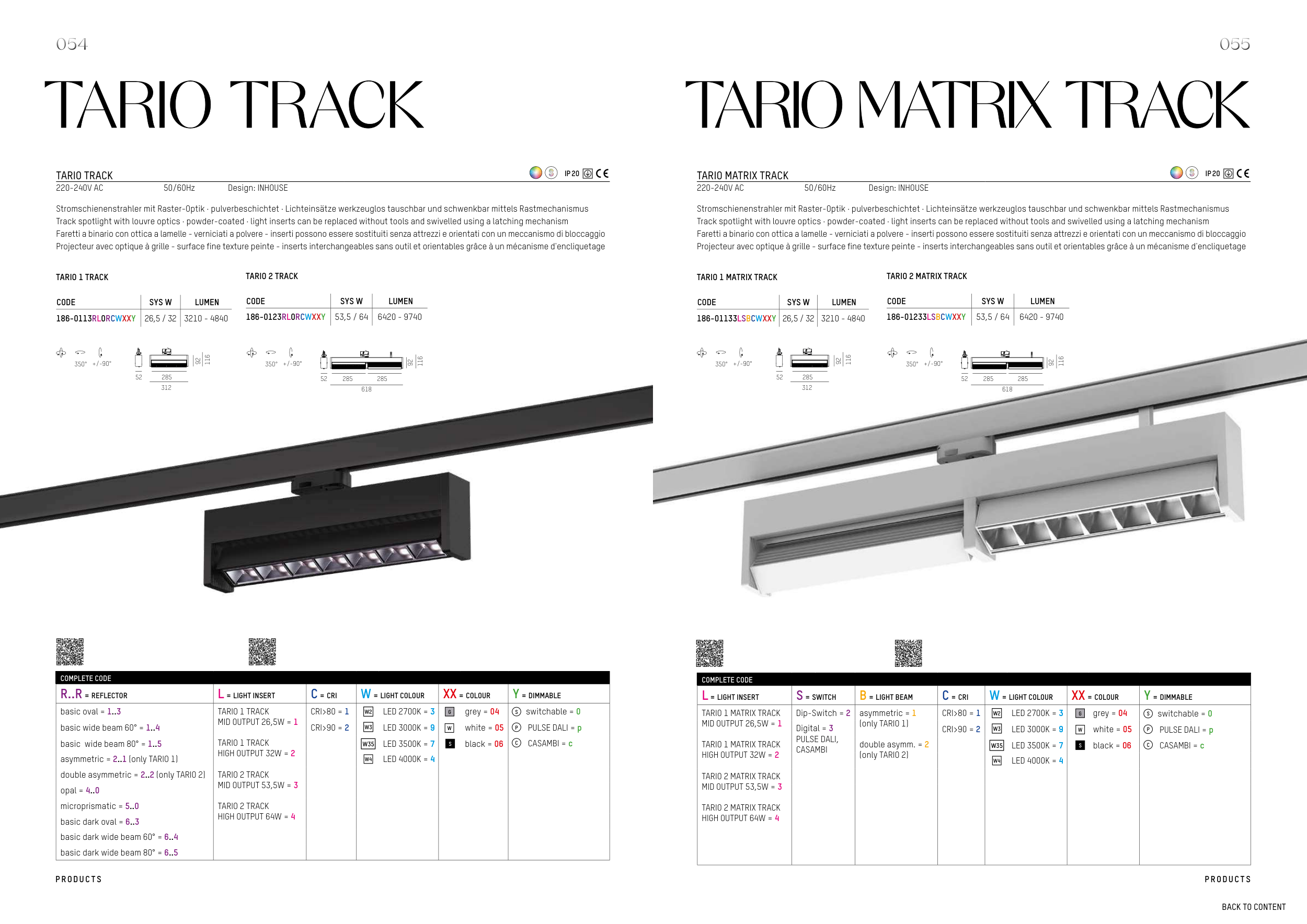

TARIO TRACK
TARIO TRACK
TARIO MATRIX TRACK
TARIO MATRIX TRACK
BACK TO CONTENT
TARIO TRACK
220-240V AC
Design: INHOUSE
50/60Hz
Stromschienenstrahler mit Raster-Optik · pulverbeschichtet · Lichteinsätze werkzeuglos tauschbar und schwenkbar mittels Rastmechanismus
Track spotlight with louvre optics · powder-coated · light inserts can be replaced without tools and swivelled using a latching mechanism
Faretti a binario con ottica a lamelle - verniciati a polvere - inserti possono essere sostituiti senza attrezzi e orientati con un meccanismo di bloccaggio
Projecteur avec optique à grille - surface fine texture peinte - inserts interchangeables sans outil et orientables grâce à un mécanisme d'encliquetage
IP 20
CODE
SYS W
LUMEN
186-0113RL0RCWXXY
26,5 / 32
3210 - 4840
CODE
SYS W
LUMEN
186-0123RL0RCWXXY
53,5 / 64
6420 - 9740
TARIO 1 TRACK
TARIO 2 TRACK
350°
350°
52
52
285
285
285
618
312
92
92
116
116
+/-90°
+/-90°
COMPLETE CODE
R..R = REFLECTOR
L = LIGHT INSERT
C = CRI
W = LIGHT COLOUR
XX = COLOUR
Y = DIMMABLE
TARIO 1 TRACK
MID OUTPUT 26,5W = 1
TARIO 1 TRACK
HIGH OUTPUT 32W = 2
TARIO 2 TRACK
MID OUTPUT 53,5W = 3
TARIO 2 TRACK
HIGH OUTPUT 64W = 4
CRI>80 = 1
LED 2700K = 3
grey = 04
CRI>90 = 2
LED 3000K = 9
W
white = 05
W35
LED 3500K = 7
S
black = 06
LED 4000K = 4
switchable = 0
PULSE DALI = p
CASAMBI = c
basic oval = 1..3
basic wide beam 60° = 1..4
basic wide beam 80° = 1..5
asymmetric = 2..1 (only TARIO 1)
double asymmetric = 2..2 (only TARIO 2)
opal = 4..0
microprismatic = 5..0
basic dark oval = 6..3
basic dark wide beam 60° = 6..4
basic dark wide beam 80° = 6..5
P
S
G
C
TARIO MATRIX TRACK
220-240V AC
Design: INHOUSE
50/60Hz
Stromschienenstrahler mit Raster-Optik · pulverbeschichtet · Lichteinsätze werkzeuglos tauschbar und schwenkbar mittels Rastmechanismus
Track spotlight with louvre optics · powder-coated · light inserts can be replaced without tools and swivelled using a latching mechanism
Faretti a binario con ottica a lamelle - verniciati a polvere - inserti possono essere sostituiti senza attrezzi e orientati con un meccanismo di bloccaggio
Projecteur avec optique à grille - surface fine texture peinte - inserts interchangeables sans outil et orientables grâce à un mécanisme d'encliquetage
IP 20
CODE
SYS W
LUMEN
186-01133LSBCWXXY 26,5 / 32 3210 - 4840
CODE
SYS W
LUMEN
186-01233LSBCWXXY
53,5 / 64
6420 - 9740
TARIO 1 MATRIX TRACK
TARIO 2 MATRIX TRACK
350°
350°
52
52
285
285
285
618
312
92
92
116
116
+/-90°
+/-90°
COMPLETE CODE
L = LIGHT INSERT
S = SWITCH
B = LIGHT BEAM
C = CRI
W = LIGHT COLOUR
XX = COLOUR
Y = DIMMABLE
TARIO 1 MATRIX TRACK
MID OUTPUT 26,5W = 1
TARIO 1 MATRIX TRACK
HIGH OUTPUT 32W = 2
TARIO 2 MATRIX TRACK
MID OUTPUT 53,5W = 3
TARIO 2 MATRIX TRACK
HIGH OUTPUT 64W = 4
Dip-Switch = 2
asymmetric = 1
(only TARIO 1)
double asymm. = 2
(only TARIO 2)
CRI>80 = 1
LED 2700K = 3
grey = 04
Digital = 3
PULSE DALI,
CASAMBI
CRI>90 = 2
LED 3000K = 9
W
white = 05
W35
LED 3500K = 7
S
black = 06
LED 4000K = 4
G
switchable = 0
PULSE DALI = p
CASAMBI = c
P
S
C
