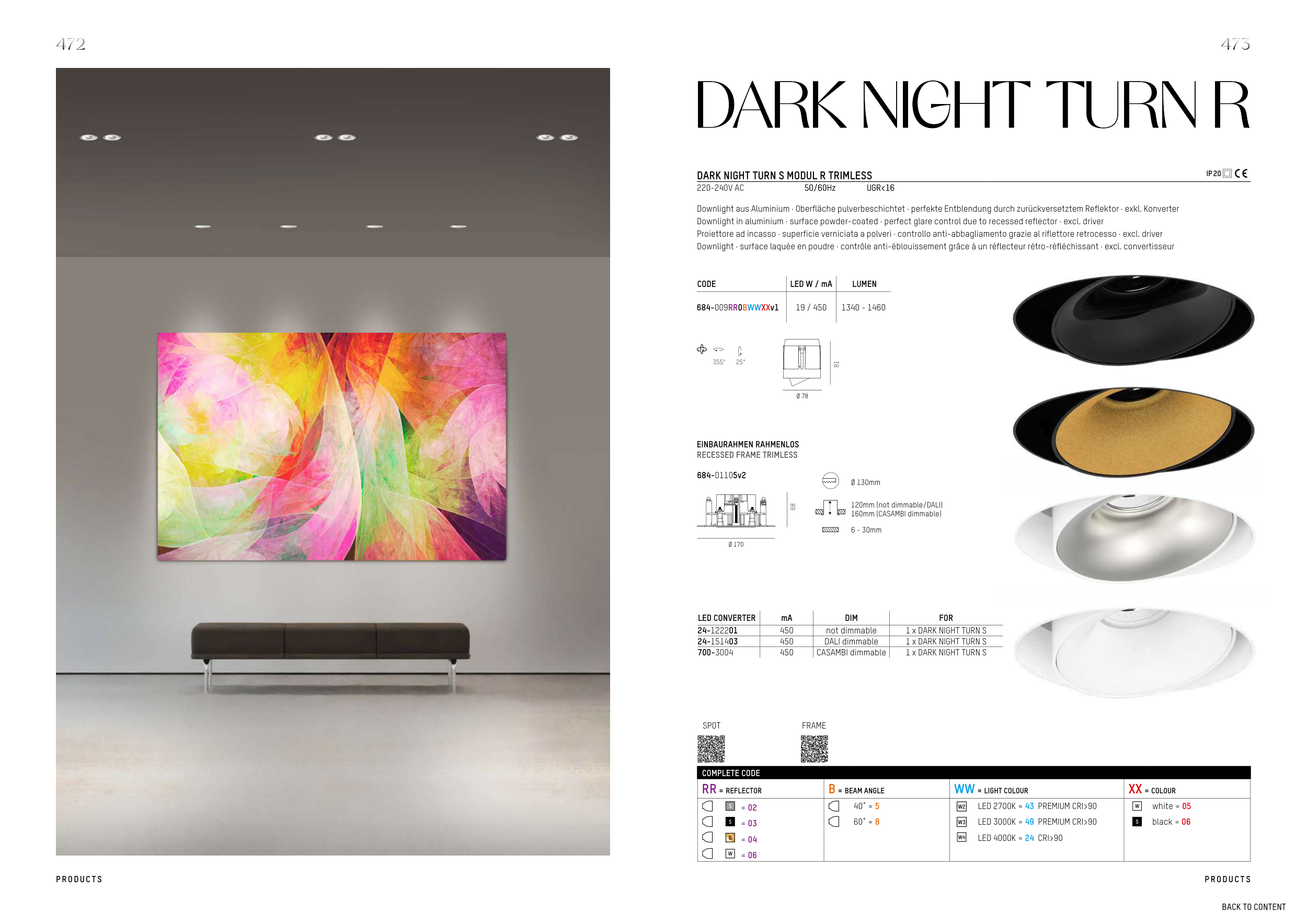

DARK NIGHT TURN R
DARK NIGHT TURN R
PRODUC T S
PRODUC TS
COMPLETE CODE
RR = REFLECTOR
B = BEAM ANGLE
WW = LIGHT COLOUR
XX = COLOUR
S = 02
40˚ = 5
LED 2700K = 43 PREMIUM CRI>90
W
white = 05
S = 03
60˚ = 8
LED 3000K = 49 PREMIUM CRI>90
S
black = 06
G = 04
LED 4000K = 24 CRI>90
W = 06
SPOT
FRAME
BACK TO CONTENT
DARK NIGHT TURN S MODUL R TRIMLESS
220-240V AC
50/60Hz
UGR<16
UGR<16
50/60Hz
Downlight aus Aluminium · Oberfläche pulverbeschichtet · perfekte Entblendung durch zurückversetztem Reflektor · exkl. Konverter
Downlight in aluminium · surface powder-coated · perfect glare control due to recessed reflector · excl. driver
Proiettore ad incasso · superficie verniciata a polveri · controllo anti-abbagliamento grazie al riflettore retrocesso · excl. driver
Downlight · surface laquée en poudre · contrôle anti-éblouissement grâce à un réflecteur rétro-réfléchissant · excl. convertisseur
IP 20
CODE
LED W / mA
LUMEN
684-009RR0BWWXXv1
19 / 450
1340 - 1460
355°
25°
EINBAURAHMEN RAHMENLOS
RECESSED FRAME TRIMLESS
684-01105v2
Ø 78
Ø 170
81
68
Ø 130mm
120mm (not dimmable/DALI)
160mm (CASAMBI dimmable)
6 - 30mm
LED CONVERTER
mA
DIM
FOR
24-122201
450
not dimmable
1 x DARK NIGHT TURN S
24-151403
450
DALI dimmable
1 x DARK NIGHT TURN S
700-3004
450
CASAMBI dimmable
1 x DARK NIGHT TURN S
