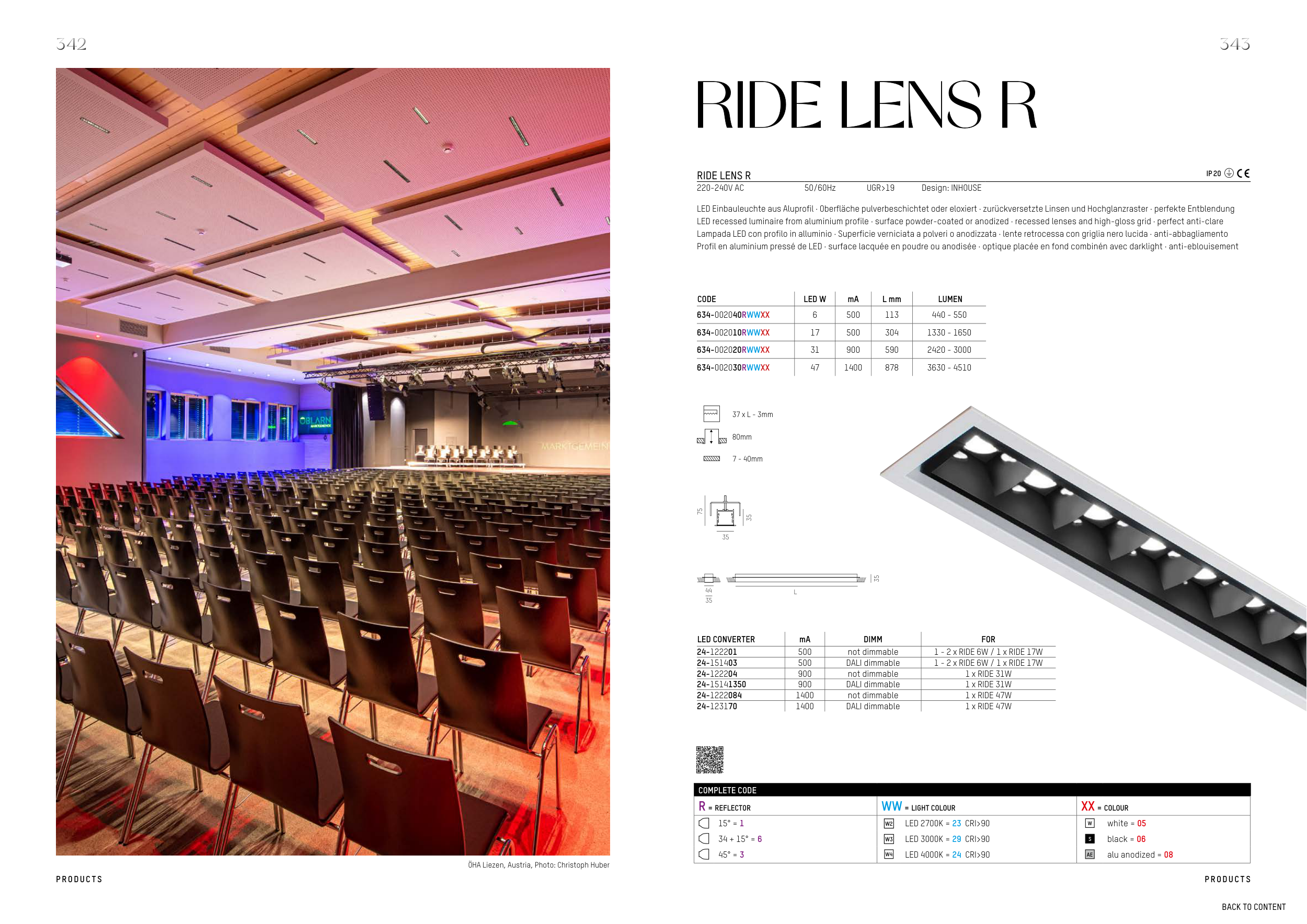

ÖHA Liezen, Austria, Photo: Christoph Huber
RIDE LENS R
RIDE LENS R
CODE
LED W
mA
L mm
LUMEN
634-002040RWWXX
6
500
113
440 - 550
634-002010RWWXX
17
500
304
1330 - 1650
634-002020RWWXX
31
900
590
2420 - 3000
634-002030RWWXX
47
1400
878
3630 - 4510
RIDE LENS R
220-240V AC
50/60Hz
UGR>19 Design: INHOUSE
LED Einbauleuchte aus Aluprofil · Oberfläche pulverbeschichtet oder eloxiert · zurückversetzte Linsen und Hochglanzraster · perfekte Entblendung
LED recessed luminaire from aluminium profile · surface powder-coated or anodized · recessed lenses and high-gloss grid · perfect anti-clare
Lampada LED con profilo in alluminio · Superficie verniciata a polveri o anodizzata · lente retrocessa con griglia nero lucida · anti-abbagliamento
Profil en aluminium pressé de LED · surface lacquée en poudre ou anodisée · optique placée en fond combinén avec darklight · anti-eblouisement
IP 20
LED CONVERTER
mA
DIMM
FOR
24-122201
500
not dimmable
1 - 2 x RIDE 6W / 1 x RIDE 17W
24-151403
500
DALI dimmable
1 - 2 x RIDE 6W / 1 x RIDE 17W
24-122204
900
not dimmable
1 x RIDE 31W
24-15141350
900
DALI dimmable
1 x RIDE 31W
24-1222084
1400
not dimmable
1 x RIDE 47W
24-123170
1400
DALI dimmable
1 x RIDE 47W
44
35
L
35
35
35
75
37 x L - 3mm
7 - 40mm
80mm
COMPLETE CODE
R = REFLECTOR
WW = LIGHT COLOUR
XX = COLOUR
15° = 1
LED 2700K = 23 CRI>90
W
white = 05
34 + 15° = 6
LED 3000K = 29 CRI>90
S
black = 06
45° = 3
LED 4000K = 24 CRI>90
AE
alu anodized = 08
