35
35
35
35
750 / 1450
Ø 99
36
max. 1500
326
327
PRODUC TS
PRODUC TS
MSG, Hohenau, Germany, Photo: Joachim Rauch

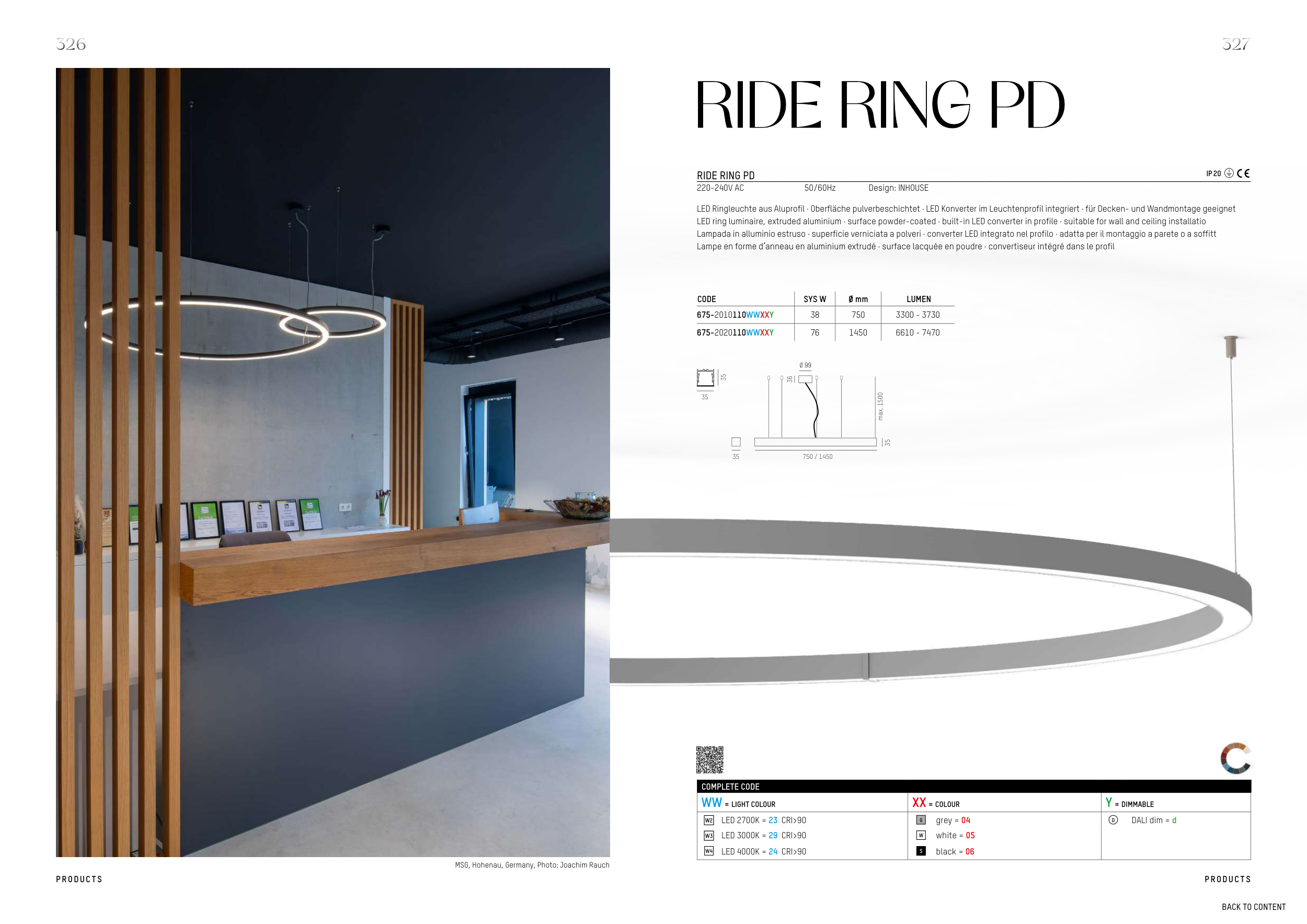

RIDE RING PD
RIDE RING PD
CODE
SYS W
Ø mm
LUMEN
675-2010110WWXXY
38
750
3300 - 3730
675-2020110WWXXY
76
1450
6610 - 7470
RIDE RING PD
220-240V AC
50/60Hz
Design: INHOUSE
LED Ringleuchte aus Aluprofil · Oberfläche pulverbeschichtet · LED Konverter im Leuchtenprofil integriert · für Decken- und Wandmontage geeignet
LED ring luminaire, extruded aluminium · surface powder-coated · built-in LED converter in profile · suitable for wall and ceiling installatio
Lampada in alluminio estruso · superficie verniciata a polveri · converter LED integrato nel profilo · adatta per il montaggio a parete o a soffitt
Lampe en forme d‘anneau en aluminium extrudé · surface lacquée en poudre · convertiseur intégré dans le profil
IP 20
COMPLETE CODE
WW = LIGHT COLOUR
XX = COLOUR
Y = DIMMABLE
LED 2700K = 23 CRI>90
grey = 04
D
DALI dim = d
LED 3000K = 29 CRI>90
W
white = 05
LED 4000K = 24 CRI>90
S
black = 06
G
