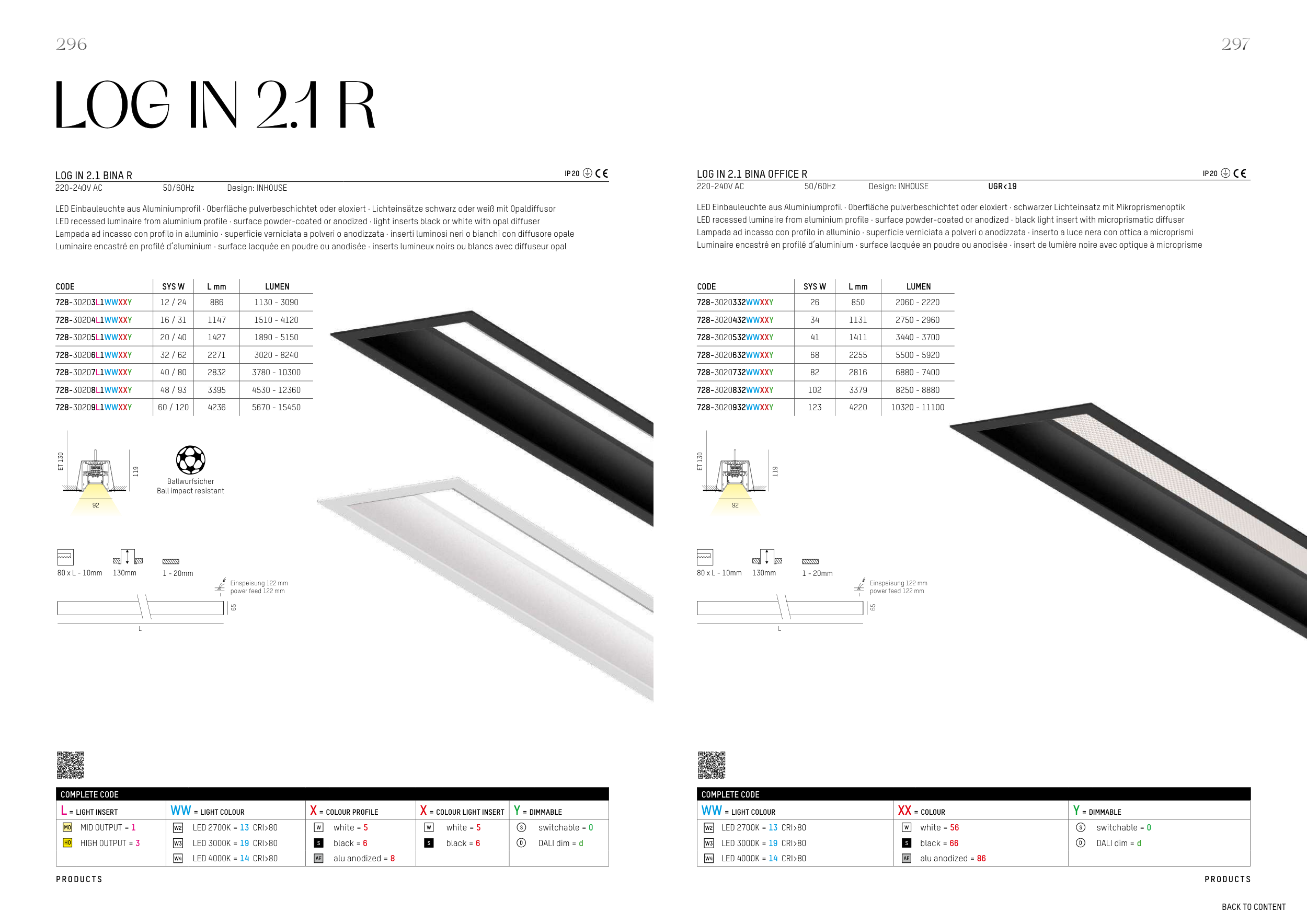

LOG IN 2.1 R
LOG IN 2.1 R
LOG IN 2.1 BINA R
220-240V AC
50/60Hz
Design: INHOUSE
LED Einbauleuchte aus Aluminiumprofil · Oberfläche pulverbeschichtet oder eloxiert · Lichteinsätze schwarz oder weiß mit Opaldiffusor
LED recessed luminaire from aluminium profile · surface powder-coated or anodized · light inserts black or white with opal diffuser
Lampada ad incasso con profilo in alluminio · superficie verniciata a polveri o anodizzata · inserti luminosi neri o bianchi con diffusore opale
Luminaire encastré en profilé d‘aluminium · surface lacquée en poudre ou anodisée · inserts lumineux noirs ou blancs avec diffuseur opal
LOG IN 2.1 BINA OFFICE R
220-240V AC
50/60Hz
Design: INHOUSE
UGR<19
LED Einbauleuchte aus Aluminiumprofil · Oberfläche pulverbeschichtet oder eloxiert · schwarzer Lichteinsatz mit Mikroprismenoptik
LED recessed luminaire from aluminium profile · surface powder-coated or anodized · black light insert with microprismatic diffuser
Lampada ad incasso con profilo in alluminio · superficie verniciata a polveri o anodizzata · inserto a luce nera con ottica a microprismi
Luminaire encastré en profilé d‘aluminium · surface lacquée en poudre ou anodisée · insert de lumière noire avec optique à microprisme
IP 20
IP 20
CODE
SYS W
L mm
LUMEN
728-30203L1WWXXY
12 / 24
886
1130 - 3090
728-30204L1WWXXY
16 / 31
1147
1510 - 4120
728-30205L1WWXXY
20 / 40
1427
1890 - 5150
728-30206L1WWXXY
32 / 62
2271
3020 - 8240
728-30207L1WWXXY
40 / 80
2832
3780 - 10300
728-30208L1WWXXY
48 / 93
3395
4530 - 12360
728-30209L1WWXXY
60 / 120
4236
5670 - 15450
CODE
SYS W
L mm
LUMEN
728-3020332WWXXY
26
850
2060 - 2220
728-3020432WWXXY
34
1131
2750 - 2960
728-3020532WWXXY
41
1411
3440 - 3700
728-3020632WWXXY
68
2255
5500 - 5920
728-3020732WWXXY
82
2816
6880 - 7400
728-3020832WWXXY
102
3379
8250 - 8880
728-3020932WWXXY
123
4220
10320 - 11100
COMPLETE CODE
L = LIGHT INSERT
WW = LIGHT COLOUR
X = COLOUR PROFILE
X = COLOUR LIGHT INSERT Y = DIMMABLE
MO
MID OUTPUT = 1
LED 2700K = 13 CRI>80
W
white = 5
W
white = 5
S
switchable = 0
HO
HIGH OUTPUT = 3
LED 3000K = 19 CRI>80
S
black = 6
S
black = 6
D
DALI dim = d
LED 4000K = 14 CRI>80
AE
alu anodized = 8
COMPLETE CODE
WW = LIGHT COLOUR
XX = COLOUR
Y = DIMMABLE
LED 2700K = 13 CRI>80
W
white = 56
S
switchable = 0
LED 3000K = 19 CRI>80
S
black = 66
D
DALI dim = d
LED 4000K = 14 CRI>80
AE
alu anodized = 86
Ballwurfsicher
Ball impact resistant
92
119
ET 130
92
119
ET 130
80 x L - 10mm
1 - 20mm
130mm
Einspeisung 122 mm
power feed 122 mm
65
L
80 x L - 10mm
1 - 20mm
130mm
Einspeisung 122 mm
power feed 122 mm
65
L
