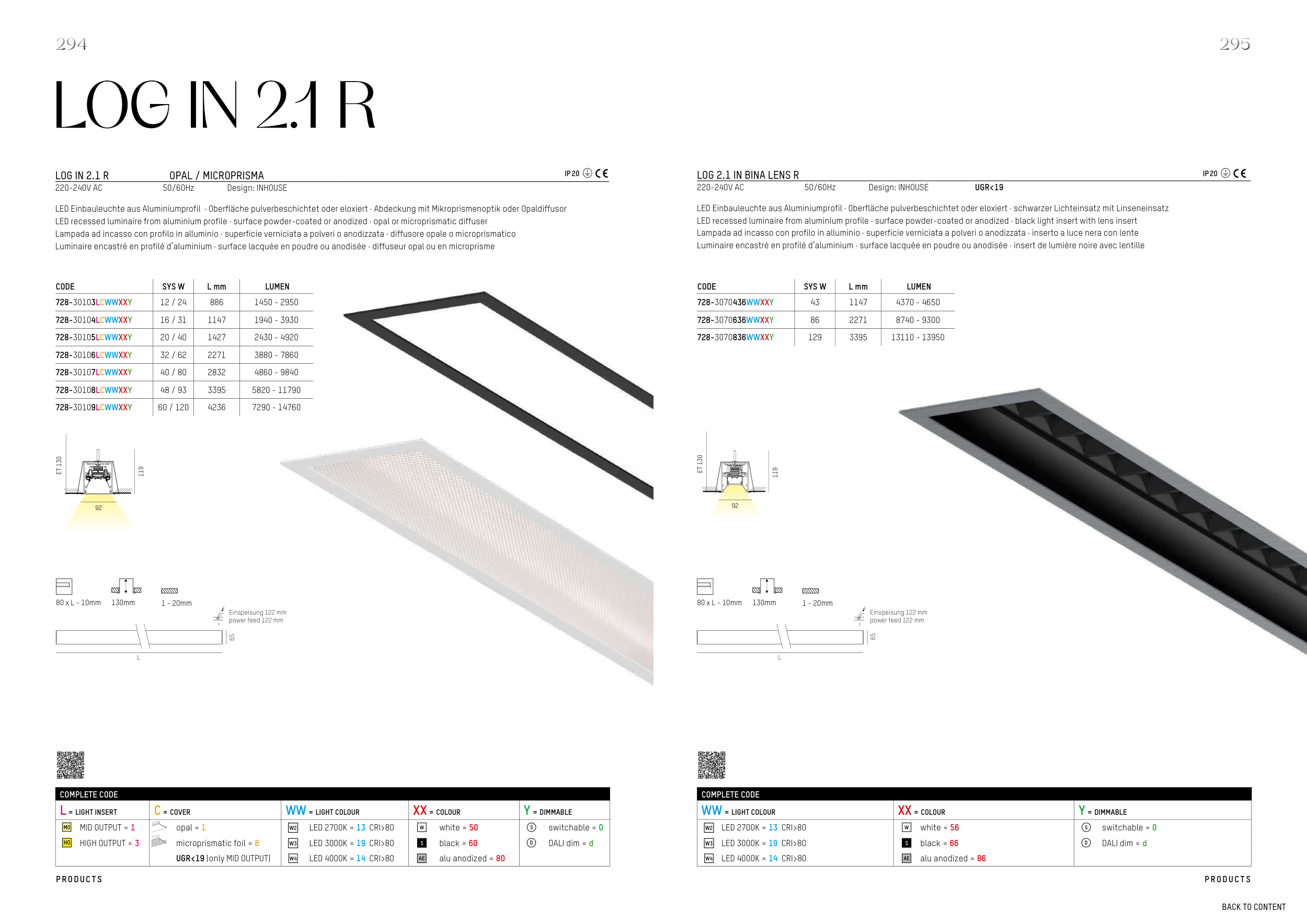

LOG IN 2.1 R
LOG IN 2.1 R
LOG IN 2.1 R
OPAL / MICROPRISMA
220-240V AC
50/60Hz
Design: INHOUSE
LED Einbauleuchte aus Aluminiumprofil · Oberfläche pulverbeschichtet oder eloxiert · Abdeckung mit Mikroprismenoptik oder Opaldiffusor
LED recessed luminaire from aluminium profile · surface powder-coated or anodized · opal or microprismatic diffuser
Lampada ad incasso con profilo in alluminio · superficie verniciata a polveri o anodizzata · diffusore opale o microprismatico
Luminaire encastré en profilé d‘aluminium · surface lacquée en poudre ou anodisée · diffuseur opal ou en microprisme
LOG 2.1 IN BINA LENS R
220-240V AC
50/60Hz
Design: INHOUSE
UGR<19
LED Einbauleuchte aus Aluminiumprofil · Oberfläche pulverbeschichtet oder eloxiert · schwarzer Lichteinsatz mit Linseneinsatz
LED recessed luminaire from aluminium profile · surface powder-coated or anodized · black light insert with lens insert
Lampada ad incasso con profilo in alluminio · superficie verniciata a polveri o anodizzata · inserto a luce nera con lente
Luminaire encastré en profilé d‘aluminium · surface lacquée en poudre ou anodisée · insert de lumière noire avec lentille
IP 20
IP 20
COMPLETE CODE
L = LIGHT INSERT
C = COVER
WW = LIGHT COLOUR
XX = COLOUR
Y = DIMMABLE
MO
MID OUTPUT = 1
opal = 1
LED 2700K = 13 CRI>80
W
white = 50
S
switchable = 0
HO
HIGH OUTPUT = 3
microprismatic foil = 8
LED 3000K = 19 CRI>80
S
black = 60
D
DALI dim = d
UGR<19 (only MID OUTPUT)
LED 4000K = 14 CRI>80
AE
alu anodized = 80
CODE
SYS W
L mm
LUMEN
728-30103LCWWXXY
12 / 24
886
1450 - 2950
728-30104LCWWXXY
16 / 31
1147
1940 - 3930
728-30105LCWWXXY
20 / 40
1427
2430 - 4920
728-30106LCWWXXY
32 / 62
2271
3880 - 7860
728-30107LCWWXXY
40 / 80
2832
4860 - 9840
728-30108LCWWXXY
48 / 93
3395
5820 - 11790
728-30109LCWWXXY
60 / 120
4236
7290 - 14760
CODE
SYS W
L mm
LUMEN
728-3070436WWXXY
43
1147
4370 - 4650
728-3070636WWXXY
86
2271
8740 - 9300
728-3070836WWXXY
129
3395
13110 - 13950
COMPLETE CODE
WW = LIGHT COLOUR
XX = COLOUR
Y = DIMMABLE
LED 2700K = 13 CRI>80
W
white = 56
S
switchable = 0
LED 3000K = 19 CRI>80
S
black = 66
D
DALI dim = d
LED 4000K = 14 CRI>80
AE
alu anodized = 86
119
92
ET 130
80 x L - 10mm
1 - 20mm
130mm
Einspeisung 122 mm
power feed 122 mm
65
L
92
119
ET 130
80 x L - 10mm
1 - 20mm
130mm
Einspeisung 122 mm
power feed 122 mm
65
L
