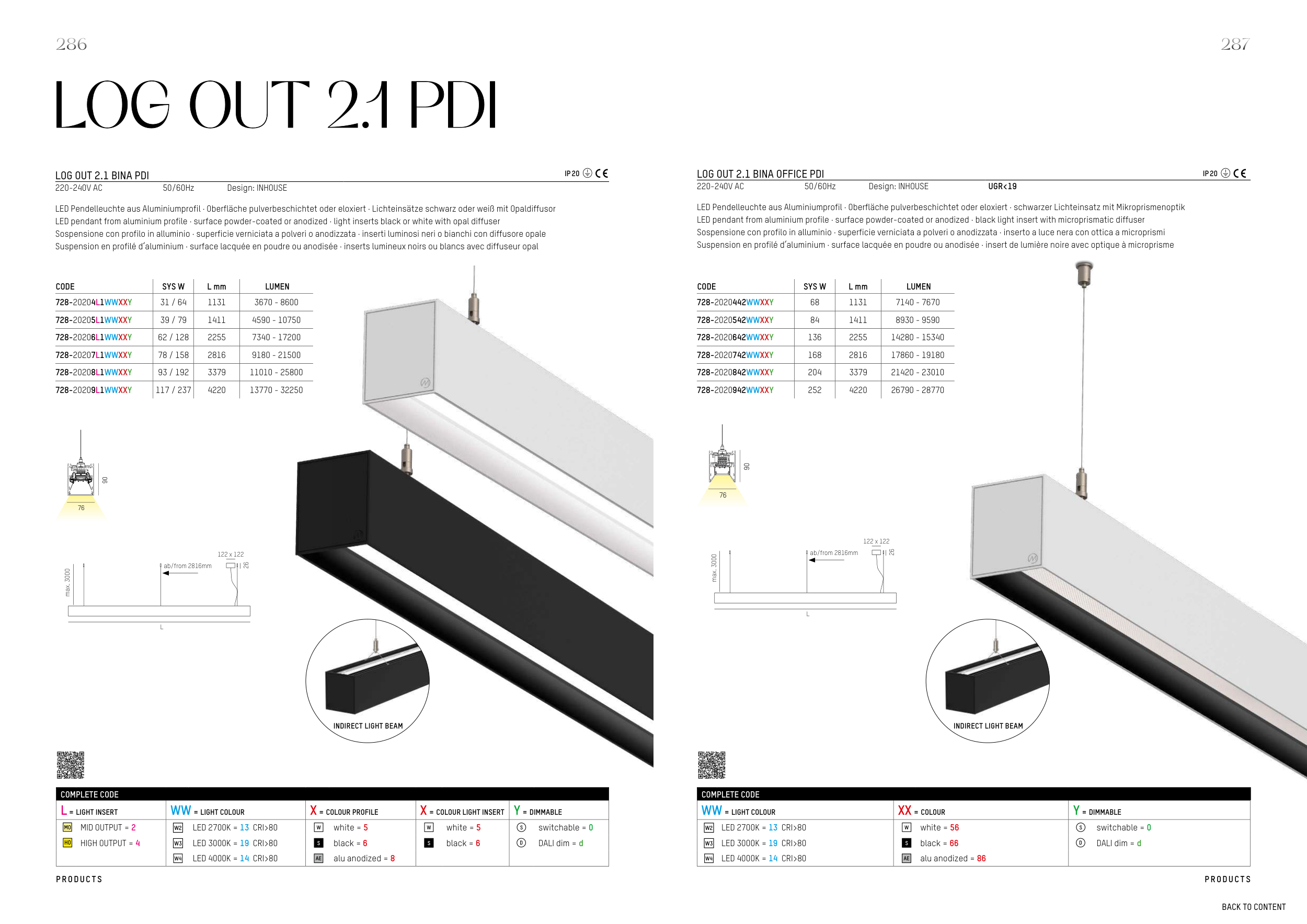

LOG OUT 2.1 PDI
LOG OUT 2.1 PDI
LOG OUT 2.1 BINA PDI
220-240V AC
50/60Hz
Design: INHOUSE
LED Pendelleuchte aus Aluminiumprofil · Oberfläche pulverbeschichtet oder eloxiert · Lichteinsätze schwarz oder weiß mit Opaldiffusor
LED pendant from aluminium profile · surface powder-coated or anodized · light inserts black or white with opal diffuser
Sospensione con profilo in alluminio · superficie verniciata a polveri o anodizzata · inserti luminosi neri o bianchi con diffusore opale
Suspension en profilé d‘aluminium · surface lacquée en poudre ou anodisée · inserts lumineux noirs ou blancs avec diffuseur opal
LOG OUT 2.1 BINA OFFICE PDI
220-240V AC
50/60Hz
Design: INHOUSE
UGR<19
LED Pendelleuchte aus Aluminiumprofil · Oberfläche pulverbeschichtet oder eloxiert · schwarzer Lichteinsatz mit Mikroprismenoptik
LED pendant from aluminium profile · surface powder-coated or anodized · black light insert with microprismatic diffuser
Sospensione con profilo in alluminio · superficie verniciata a polveri o anodizzata · inserto a luce nera con ottica a microprismi
Suspension en profilé d‘aluminium · surface lacquée en poudre ou anodisée · insert de lumière noire avec optique à microprisme
IP 20
IP 20
90
76
L
max. 3000
ab/from 2816mm
122 x 122
26
CODE
SYS W
L mm
LUMEN
728-20204L1WWXXY
31 / 64
1131
3670 - 8600
728-20205L1WWXXY
39 / 79
1411
4590 - 10750
728-20206L1WWXXY
62 / 128
2255
7340 - 17200
728-20207L1WWXXY
78 / 158
2816
9180 - 21500
728-20208L1WWXXY
93 / 192
3379
11010 - 25800
728-20209L1WWXXY
117 / 237
4220
13770 - 32250
CODE
SYS W
L mm
LUMEN
728-2020442WWXXY
68
1131
7140 - 7670
728-2020542WWXXY
84
1411
8930 - 9590
728-2020642WWXXY
136
2255
14280 - 15340
728-2020742WWXXY
168
2816
17860 - 19180
728-2020842WWXXY
204
3379
21420 - 23010
728-2020942WWXXY
252
4220
26790 - 28770
L
max. 3000
ab/from 2816mm
90
76
122 x 122
26
COMPLETE CODE
L = LIGHT INSERT
WW = LIGHT COLOUR
X = COLOUR PROFILE
X = COLOUR LIGHT INSERT Y = DIMMABLE
MO
MID OUTPUT = 2
LED 2700K = 13 CRI>80
W
white = 5
W
white = 5
S
switchable = 0
HO
HIGH OUTPUT = 4
LED 3000K = 19 CRI>80
S
black = 6
S
black = 6
D
DALI dim = d
LED 4000K = 14 CRI>80
AE
alu anodized = 8
COMPLETE CODE
WW = LIGHT COLOUR
XX = COLOUR
Y = DIMMABLE
LED 2700K = 13 CRI>80
W
white = 56
S
switchable = 0
LED 3000K = 19 CRI>80
S
black = 66
D
DALI dim = d
LED 4000K = 14 CRI>80
AE
alu anodized = 86
PRODUC TS
PRODUC TS
INDIRECT LIGHT BEAM
INDIRECT LIGHT BEAM
