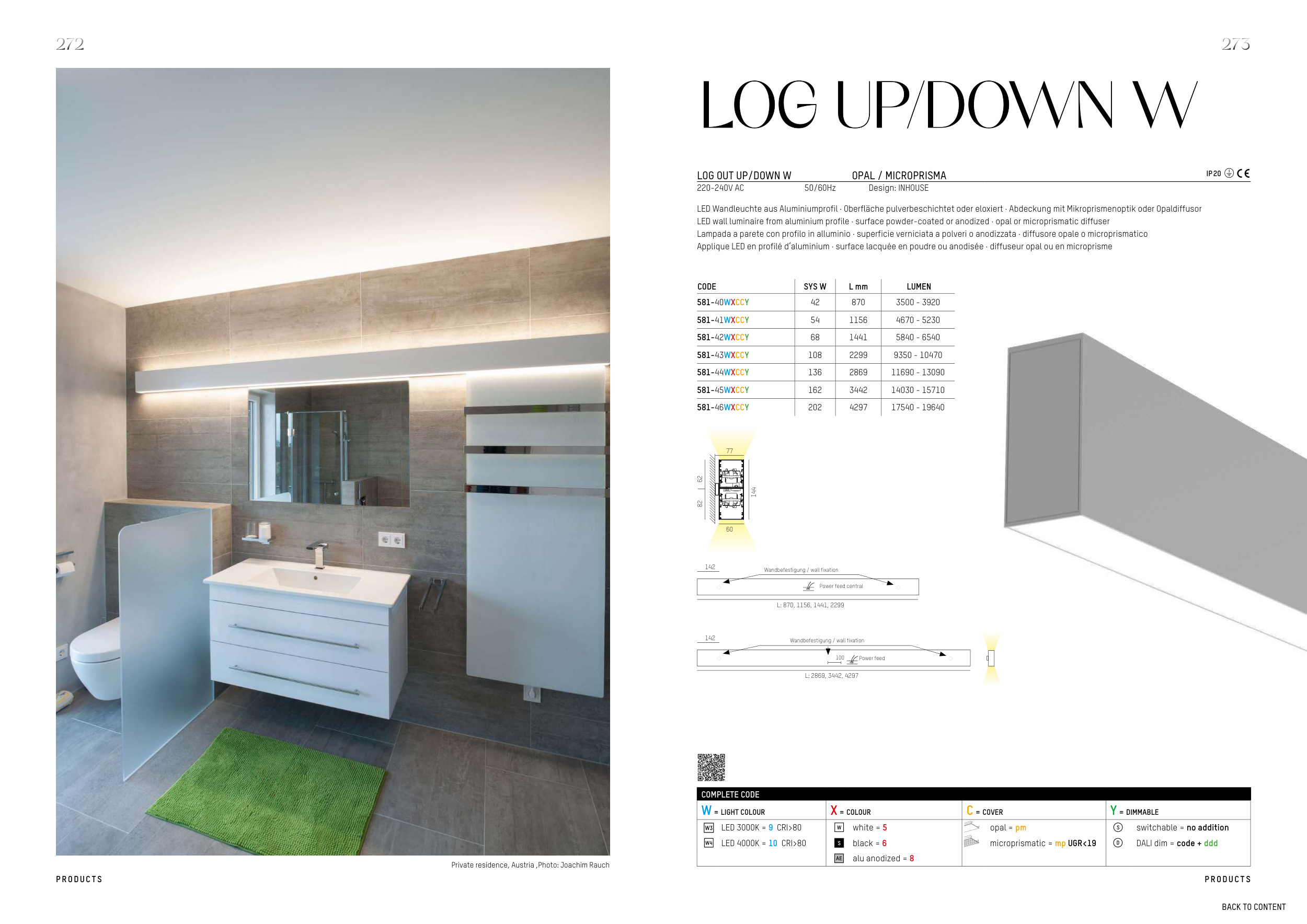

LOG UP/DOWN W
LOG UP/DOWN W
LOG OUT UP/DOWN W
OPAL / MICROPRISMA
220-240V AC
50/60Hz
Design: INHOUSE
LED Wandleuchte aus Aluminiumprofil · Oberfläche pulverbeschichtet oder eloxiert · Abdeckung mit Mikroprismenoptik oder Opaldiffusor
LED wall luminaire from aluminium profile · surface powder-coated or anodized · opal or microprismatic diffuser
Lampada a parete con profilo in alluminio · superficie verniciata a polveri o anodizzata · diffusore opale o microprismatico
Applique LED en profilé d‘aluminium · surface lacquée en poudre ou anodisée · diffuseur opal ou en microprisme
IP 20
CODE
SYS W
L mm
LUMEN
581-40WXCCY
42
870
3500 - 3920
581-41WXCCY
54
1156
4670 - 5230
581-42WXCCY
68
1441
5840 - 6540
581-43WXCCY
108
2299
9350 - 10470
581-44WXCCY
136
2869
11690 - 13090
581-45WXCCY
162
3442
14030 - 15710
581-46WXCCY
202
4297
17540 - 19640
Private residence, Austria ,Photo: Joachim Rauch
COMPLETE CODE
W = LIGHT COLOUR
X = COLOUR
C = COVER
Y = DIMMABLE
LED 3000K = 9 CRI>80
W
white = 5
opal = pm
S
switchable = no addition
LED 4000K = 10 CRI>80
S
black = 6
microprismatic = mp UGR<19
D
DALI dim = code + ddd
AE
alu anodized = 8
L: 870, 1156, 1441, 2299
L: 2869, 3442, 4297
100
Power feed central
Power feed
Wandbefestigung / wall fixation
Wandbefestigung / wall fixation
142
142
60
77
144
62
82
