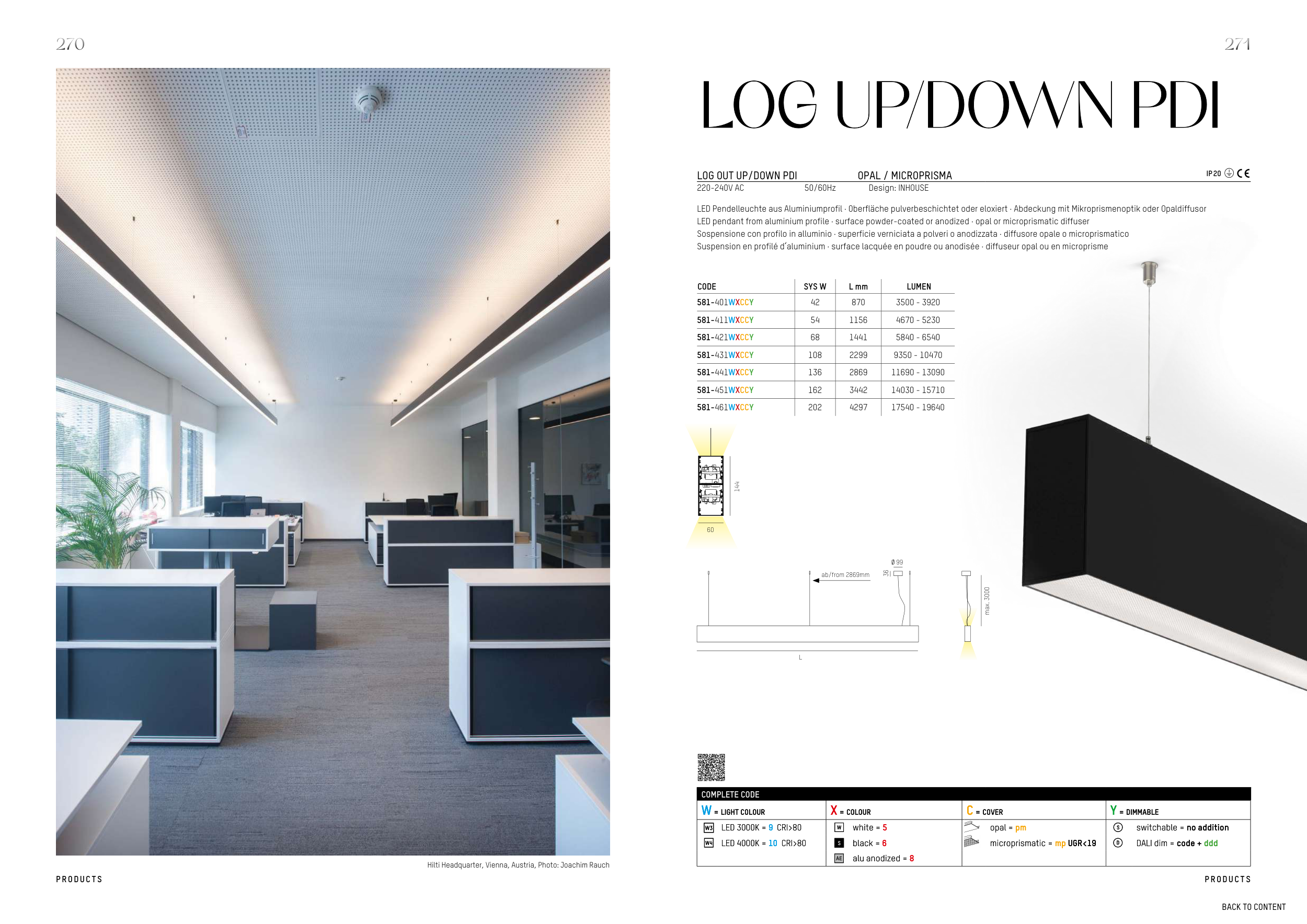

LOG UP/DOWN PDI
LOG UP/DOWN PDI
LOG OUT UP/DOWN PDI
OPAL / MICROPRISMA
220-240V AC
50/60Hz
Design: INHOUSE
LED Pendelleuchte aus Aluminiumprofil · Oberfläche pulverbeschichtet oder eloxiert · Abdeckung mit Mikroprismenoptik oder Opaldiffusor
LED pendant from aluminium profile · surface powder-coated or anodized · opal or microprismatic diffuser
Sospensione con profilo in alluminio · superficie verniciata a polveri o anodizzata · diffusore opale o microprismatico
Suspension en profilé d‘aluminium · surface lacquée en poudre ou anodisée · diffuseur opal ou en microprisme
IP 20
CODE
SYS W
L mm
LUMEN
581-401WXCCY
42
870
3500 - 3920
581-411WXCCY
54
1156
4670 - 5230
581-421WXCCY
68
1441
5840 - 6540
581-431WXCCY
108
2299
9350 - 10470
581-441WXCCY
136
2869
11690 - 13090
581-451WXCCY
162
3442
14030 - 15710
581-461WXCCY
202
4297
17540 - 19640
Hilti Headquarter, Vienna, Austria, Photo: Joachim Rauch
COMPLETE CODE
W = LIGHT COLOUR
X = COLOUR
C = COVER
Y = DIMMABLE
LED 3000K = 9 CRI>80
W
white = 5
opal = pm
S
switchable = no addition
LED 4000K = 10 CRI>80
S
black = 6
microprismatic = mp UGR<19
D
DALI dim = code + ddd
AE
alu anodized = 8
L
max. 3000
ab/from 2869mm
60
144
Ø 99
36
COMPLETE CODE
W = LIGHT COLOUR
X = COLOUR
C = COVER
Y = DIMMABLE
LED 3000K = 9 CRI>80
W
white = 5
opal = pm
S
switchable = no addition
LED 4000K = 10 CRI>80
S
black = 6
microprismatic = mp UGR<19
D
DALI dim = code + ddd
AE
alu anodized = 8
