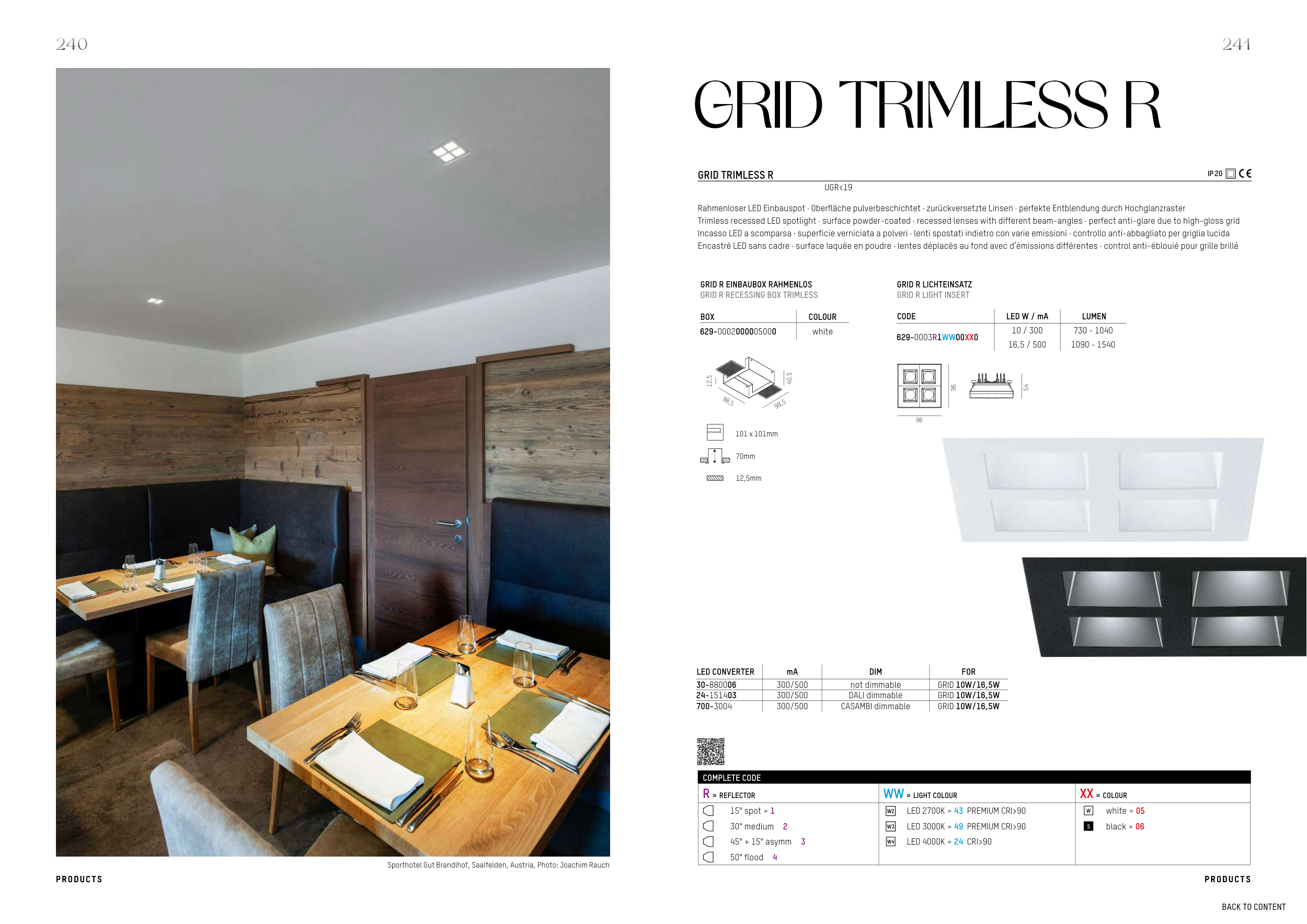

GRID TRIMLESS R
GRID TRIMLESS R
Sporthotel Gut Brandlhof, Saalfelden, Austria, Photo: Joachim Rauch
BACK TO CONTENT
COMPLETE CODE
R = REFLECTOR
WW = LIGHT COLOUR
XX = COLOUR
W
white = 05
S
black = 06
LED 2700K = 43 PREMIUM CRI>90
LED 3000K = 49 PREMIUM CRI>90
LED 4000K = 24 CRI>90
15° spot = 1
30° medium
2
45° + 15° asymm
3
50° flood
4
GRID TRIMLESS R
UGR<19
Rahmenloser LED Einbauspot · Oberfläche pulverbeschichtet · zurückversetzte Linsen · perfekte Entblendung durch Hochglanzraster
Trimless recessed LED spotlight · surface powder-coated · recessed lenses with different beam-angles · perfect anti-glare due to high-gloss grid
Incasso LED a scomparsa · superficie verniciata a polveri · lenti spostati indietro con varie emissioni · controllo anti-abbagliato per griglia lucida
Encastré LED sans cadre · surface laquée en poudre · lentes déplacés au fond avec d‘émissions différentes · control anti-éblouié pour grille brillé
IP 20
BOX
COLOUR
629-0002000005000
white
101 x 101mm
12,5mm
70mm
GRID R EINBAUBOX RAHMENLOS
GRID R RECESSING BOX TRIMLESS
GRID R LICHTEINSATZ
GRID R LIGHT INSERT
98,5
40,5
12,5
98,5
CODE
LED W / mA
LUMEN
629-0003R1WW00XX0
10 / 300
730 - 1040
16,5 / 500
1090 - 1540
LED CONVERTER
mA
DIM
FOR
30-880006
300/500
not dimmable
GRID 10W/16,5W
24-151403
300/500
DALI dimmable
GRID 10W/16,5W
700-3004
300/500
CASAMBI dimmable
GRID 10W/16,5W
54
96
96
